Gantry Milling Machine VM-2640NCA

Model: VM-2640NCA
Brand: GOODA

Product Description

Function Introduction of the VM-2640NCA

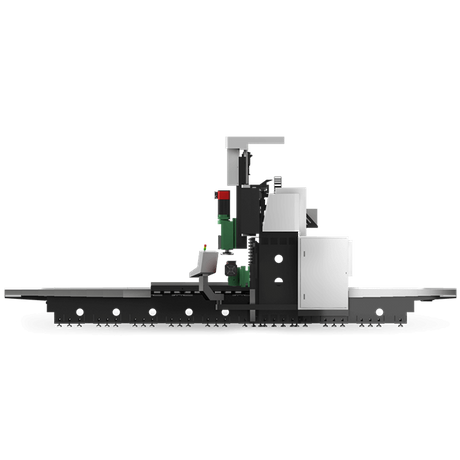

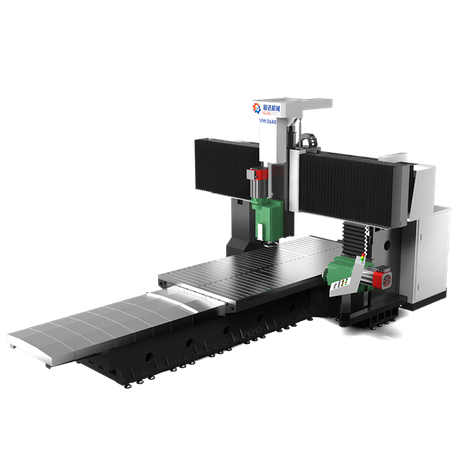

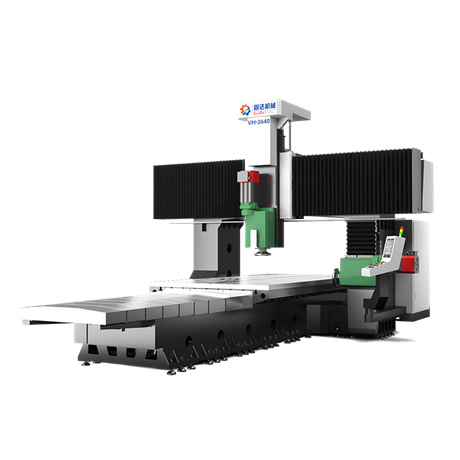

double column machining center-VM-2640NCA

Key Features

DooDa Double Column Machining Center VM-2640NCA, equipped with one vertical and one horizontal gear-driven spindles, widely used in the machining of large and heavy black and non-ferrous metal parts in the mechanical industry.

Advantages

1. Two milling heads

Equipped with 1 vertical milling heads and 1 side milling heads, using original Taiwan brand, with high rigidity, high torque, and good surface finish.

The 2 milling heads can achieve multi-sided machining at one time with high efficiency. There is no need for multiple setups.

2. Machine body

Increased size of the column, thickened guideway track;

Hydraulic locking device for the lifting of the cross rail, improving the stability during heavy cutting;

Widened and thickened base increases the load-bearing area and improves overall strength.

3. Material

The casting is reinforced and thickened, high-temperature quenched;

Heavy-duty roller guideway and hard guideway design ensure the service life and accuracy of the guideway.

4. Worktable

The worktable is driven by a servo motor with superior transmission performance;

Thickened box-type design, not easy to deform, increases the load-bearing capacity.

Specifications

VM-2640NCA		Value	Unit
Cutting size	Distance between columns	2500	mm
	Y-axis stroke	2400
	Max. workpiece length	4000
	Max. workpiece height	800
	Z-axis stroke	810
	Max. workpiece length(side milling)	4000
	Max. workpiece height(side milling)	500
	W2-axis stroke(side milling)	300
Worktable	Worktable size	2000*4000	mm
	Magnetic chuck size	2000*4000	mm
	Max. load	12000	kg
Vertical milling head (Gear-driven spindle)	Spindle motor output	22	kW
	Spindle taper	BT50(7:24)	/
	Spindle speed	50-500	C/S
	Cutter diameter	250	mm
Side milling head (Gear-driven spindle)	Spindle motor output	15	kW
	Spindle taper	BT50(7:24)	/
	Spindle speed	50-500	C/S
	Cutter diameter	250	mm
Balancing system	Balancing system on Z-axis	Nitrogen cylinder	set.
X/Y/Z/W1/W2-axis	Travelling speed	6000/6000/6000/3000/3000	mm/min
X/Y/Z/W1/W2-axis	Motor output	5.5,3,3,2,2	kW
Machine weight & size	Size(LWH)	910050004100	mm
Machine weight & size	Weight	~30000	kg

*Note: Parameter above is for reference only, please contact us for more detailed data or inquire customized solutions.
