PCS-800NC
GOODA
| Model: | Please select |
|---|---|
| Quantity: | |

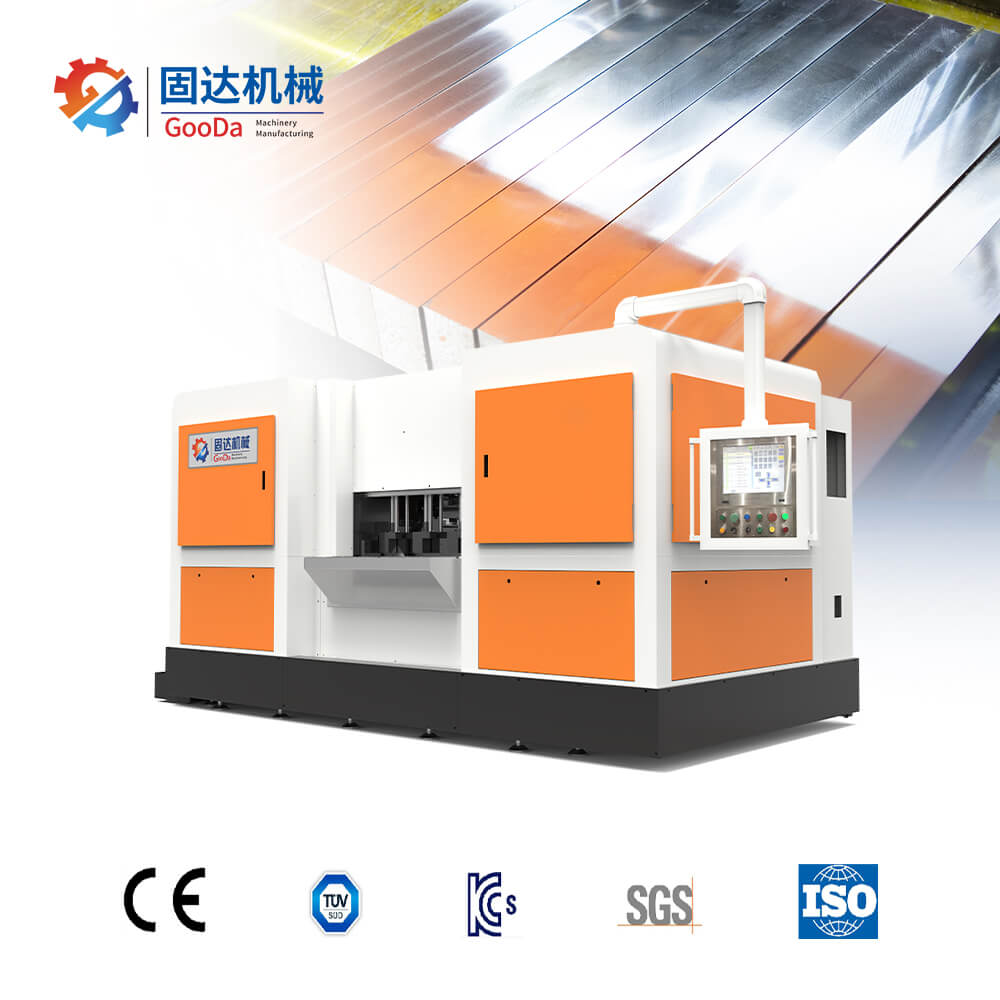

GooDa High Speed Circular Saw PCS-series uses carbide saw blades for cutting, suitable for cutting metal blocks or rods such as high-strength structural steel, tool steel, alloy steel, and wear-resistant steel.

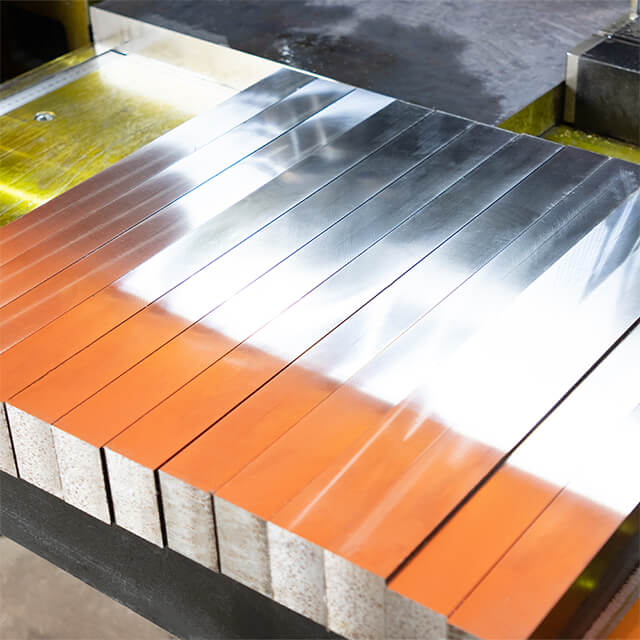

This machine has stable performance, high precision, and the smoothness can reach ≤Ra6.3μm. It achieves the effect of replacing milling with sawing.
Sawing capacity: Feed length: ≤12000mm; Sawing width: ≤2300mm; Sawing thickness: 10-125mm
Compact structure, small footprint, easy installation and use
It is mainly used for high speed cutting black and non-ferrous metals bars or plates, an ideal equipment for small to medium batch cutting
CNC Control System Touch screen control panel for simple and quick operation, improves work efficiency. |  |

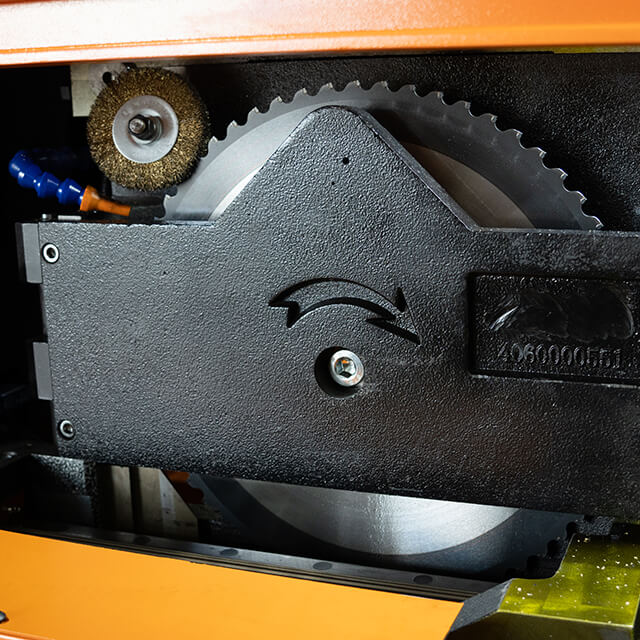

 | Carbide Saw Blade Carbide saw blades are suitable for processing high-hardness materials with high efficiency, high precision, and high surface smoothness. |

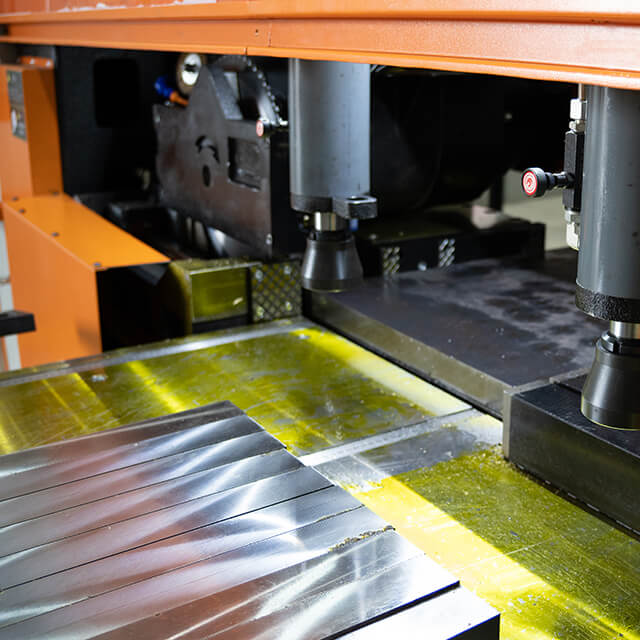

Hydraulic Clamping Side clamping with top pressing force offers firm clamping and a positive down force to ensure cutting precision. |  |
 | Transmission System Gear-driven headstock structure, matched with high-power spindle motor, ensuring strong and stable torque output. |
Automatic Feed Servo motor drives the screw to clamp the metal blanks with high positioning accuracy. The single length when feeding is 600mm, and blanks can be fed multiple times in a cycle. |  |
 | Chip Removal System Collects and transports chips automatically, saving time and effort, and improving processing efficiency. |
