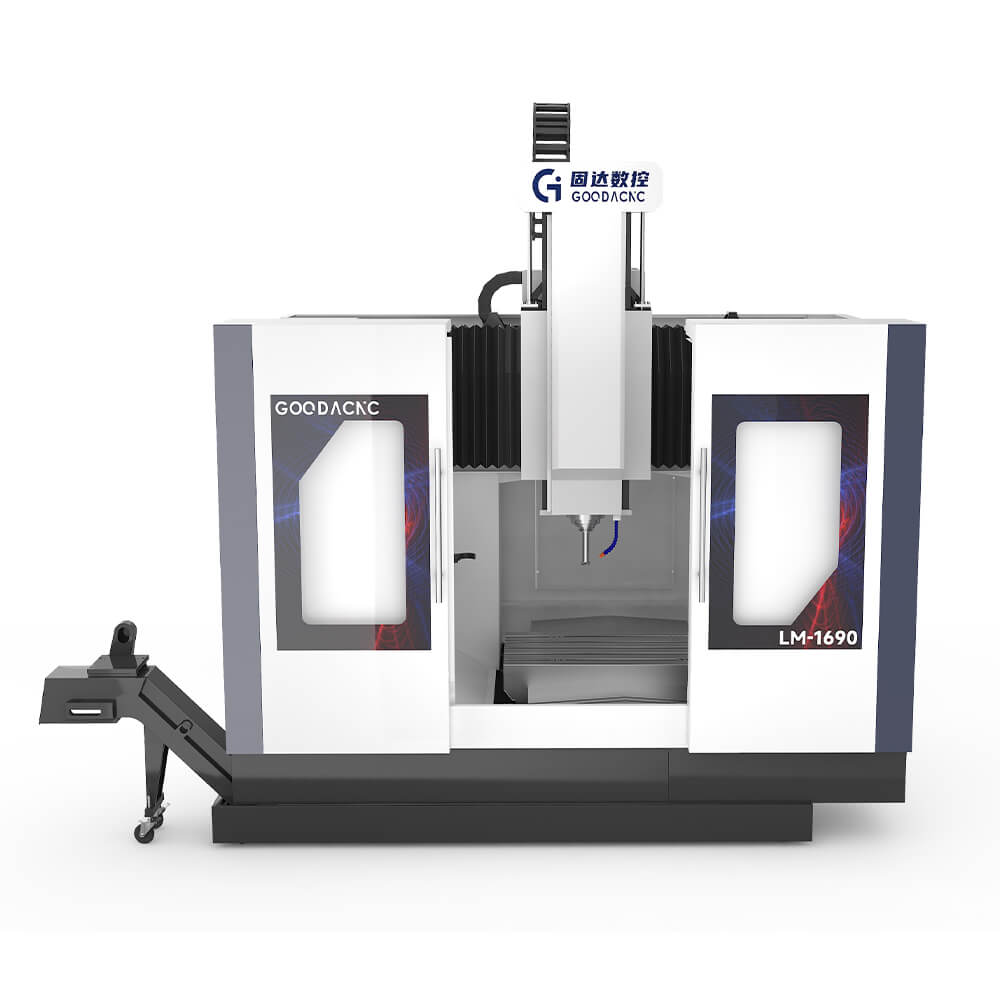

LM-1690
GOODA
| Quantity: | |
|---|---|
GooDa Fixed Beam Gantry Machining Center LM-1690 is designed for performance enhancement for general-purpose large vertical machining centers (such as LJ-1270/1370/1580), to solve the problem of errors caused by the traditional cross slide vertical machining center due to its low load-bearing capacity and off-center loading during the machining process.
The X and Y axes use heavy-duty roller linear guides, while the Z axis uses hard guides. It comes with a standard Taiwan brand BT50-6000rpm spindle for both roughing and finishing operations. Alternatively, a gearbox driven spindle is available for high-power cutting requirements.
The machine is suitable for processing large molds, box-type, plates, and mold frame parts.
Large-Scale Beam with Horizontal and Vertical Guideway Layout;
X/Y-Axis High-Rigidity Roller Linear Guides; Z-Axis Box-Type Hardened Guideways;
Optional Configurations: Right-Angle Milling Heads, Workpiece Measurement Systems, etc.
