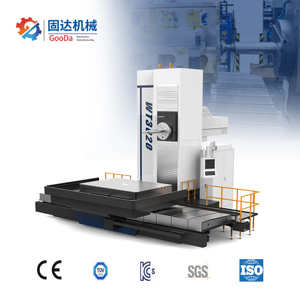

Horizontal Boring Mill WT-1616

Function Introduction of the WT-1616

GooDa CNC Horizontal Boring and Milling Machine WT-1616 is a medium-sized horizontal CNC machining center, mainly used for processing various types of large, medium-sized plate parts, box parts, molds, and other components.

Once the workpiece is clamped, it can complete a series of machining processes automatically, efficiently, and accurately, such as milling, drilling, boring, and more. It can also be operated manually.

It's suitable for metal processing among a wide range of industries, including aviation, heavy machinery, locomotives, shipbuilding, power generation, machine tools, printing, textiles, molds, and others.

Key Features

• Multiple functions: boring, milling, drilling, tapping, etc.

• X/Y/Z Travel: 1600*1600*1200mm

• Boring spindle, in/out W-axis: 550mm

• Boring spindle diameter: φ130mm

• ATC tool storage capacity: BT50-40pcs

Advantages

1. High Accuracy

• Minimizes thermal displacement during spindle rotation through cooling of the spindle bearing box and gear box.

• Equipped with tapered roller bearings capable of withstanding both radial and axial loads, along with a circulation cooling lubrication system to reduce temperature rise and achieve high precision.

2. High Rigidity

• Large sliding surfaces : X, Y, Z axes feature quenched and ground large rectangular sliding surfaces to support high load processing

• Robust construction: The mechanical body adopts a high-rigidity box-type structure

3. High Production Efficiency

Excellent spindle performance and rapid feed rates support various types of workpiece processing.

Spindle motor output[Op.]:

• 15/18.5 kW (FANUC system)

• 17/20.5 kW (SIEMENS system)

Rapid feed rates:

• X/Y/Z axis: 10 m/min

• W axis: 5 m/min

• B axis: 5.5 rpm
