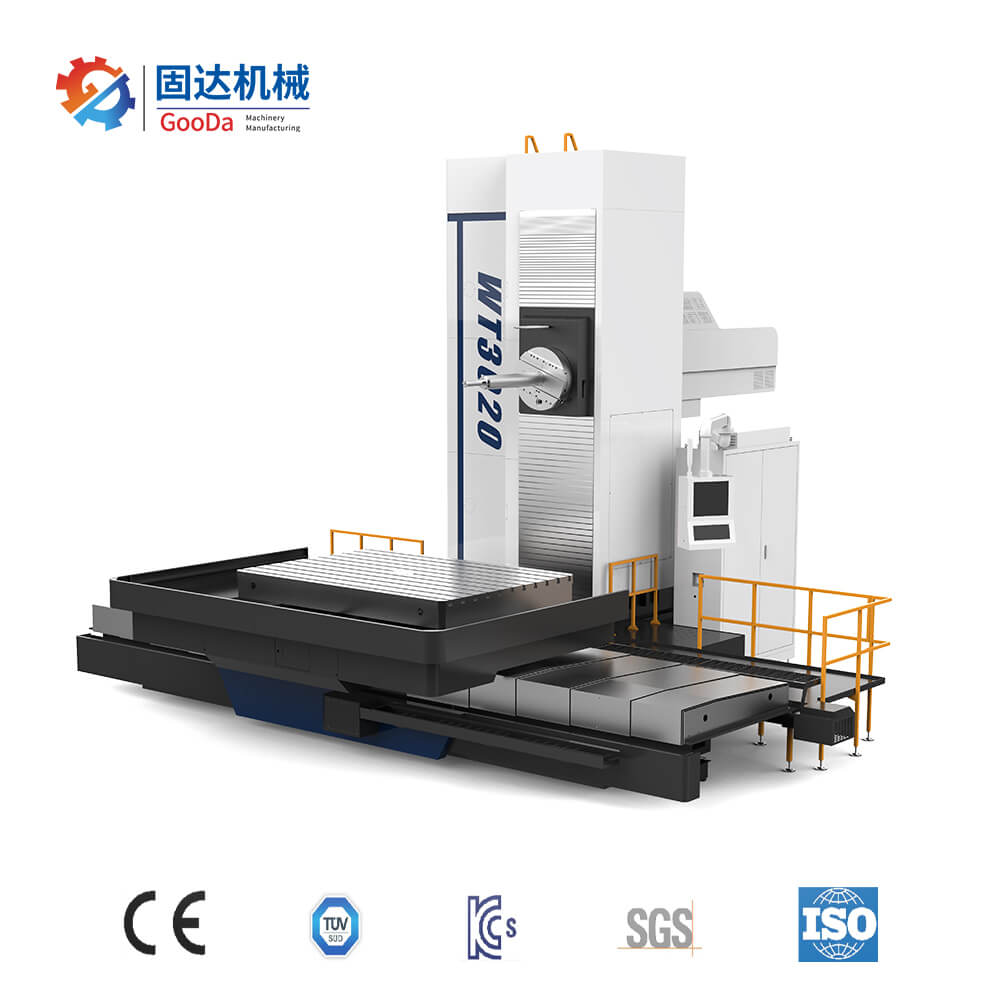

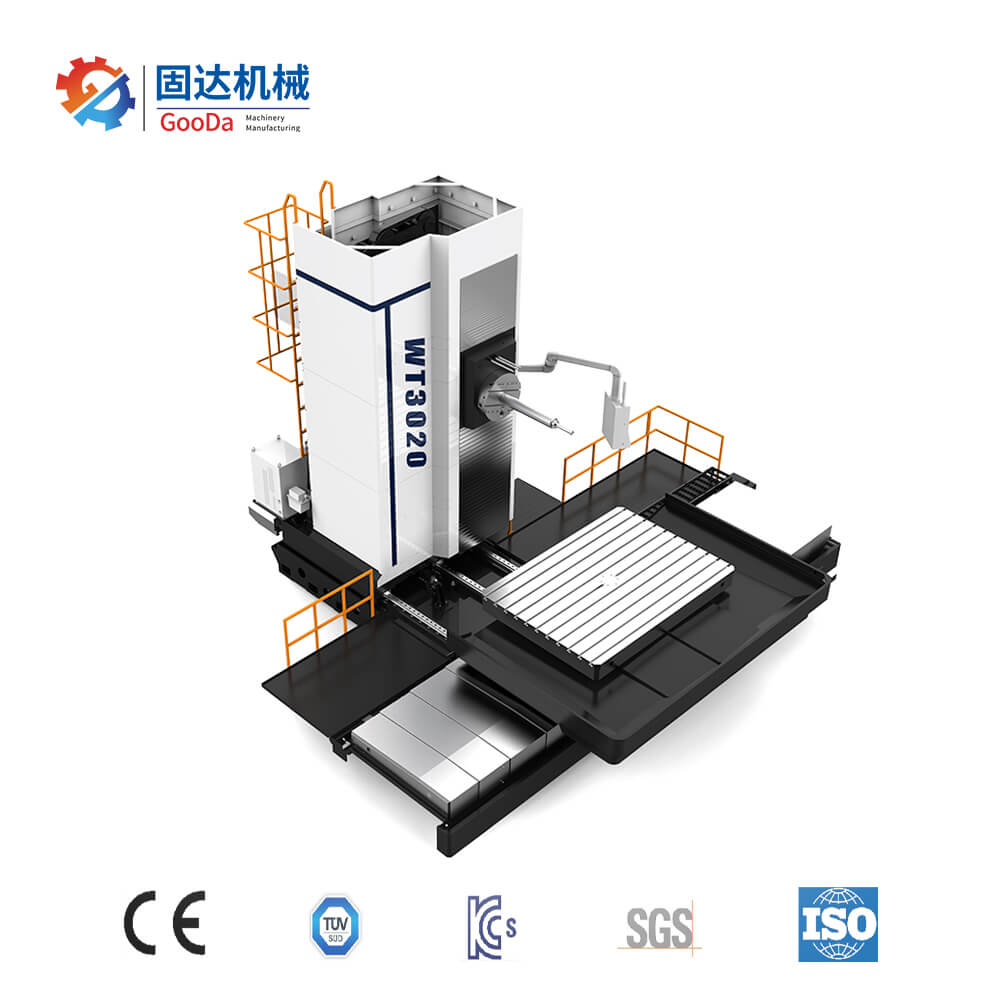

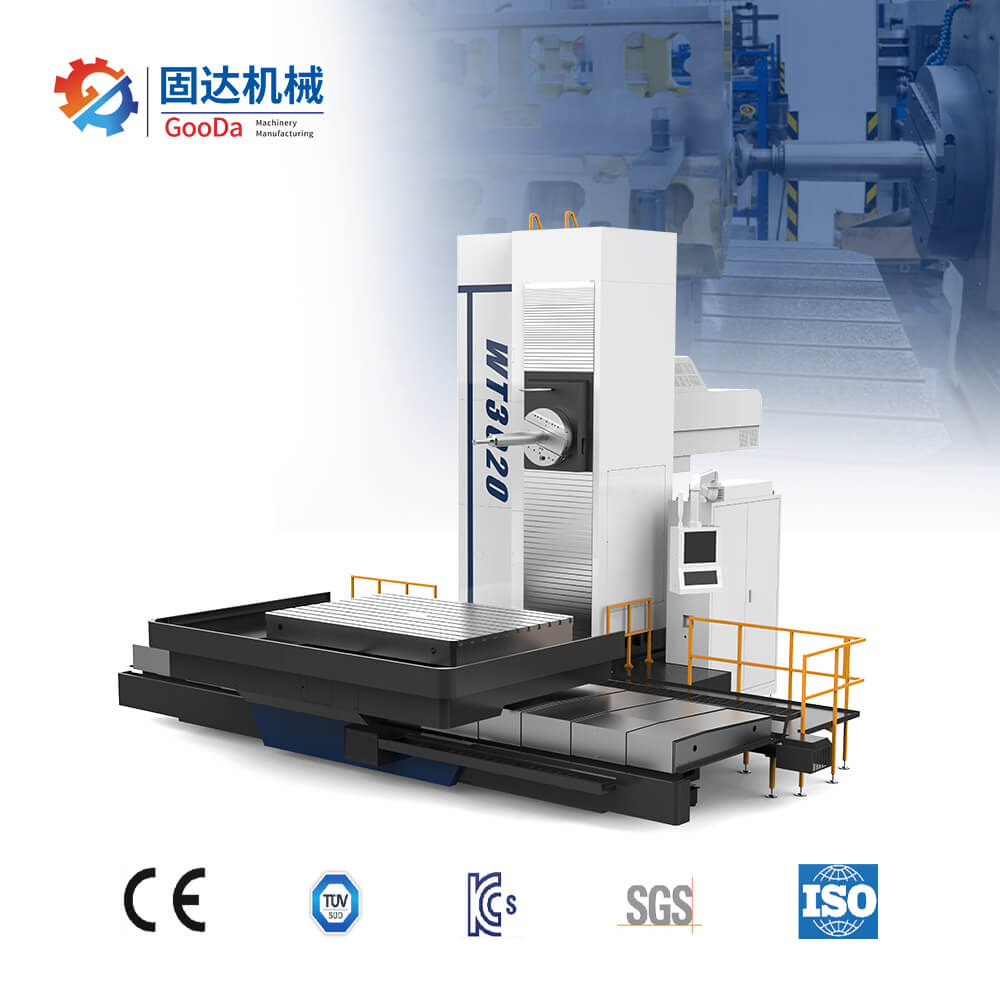

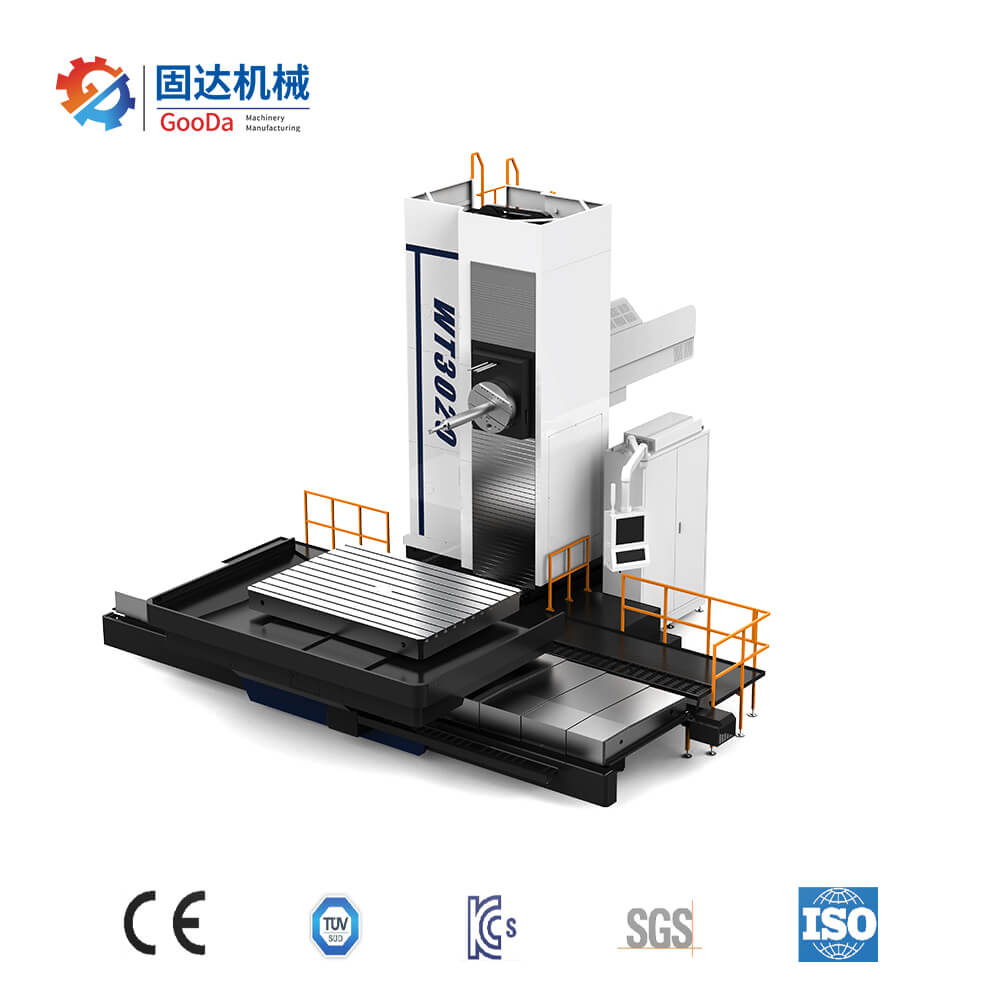

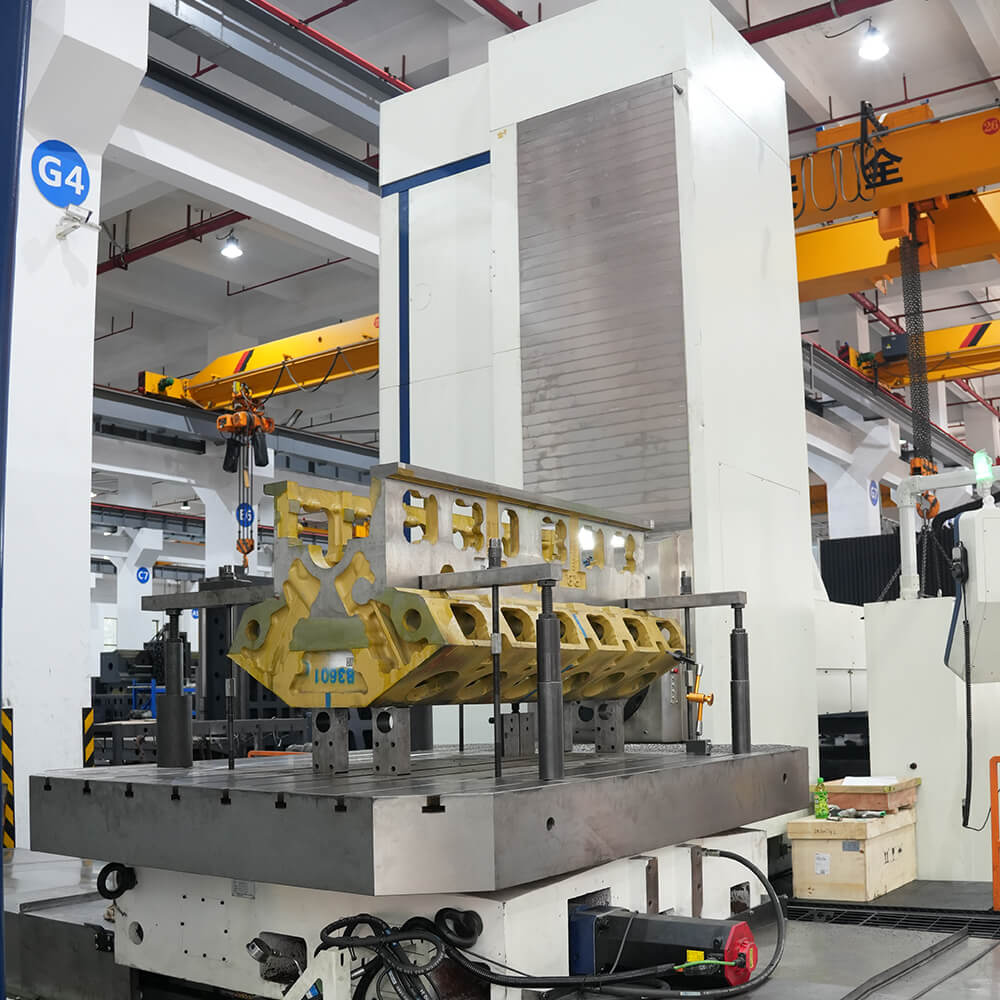

The GooDa WT-3020/4030 is a large planer-type horizontal CNC machining center for medium-to-large and heavy workpieces such as molds, plates, base parts, and housings.
It supports automatic, high-precision continuous operations- including milling, drilling, boring, and reaming - after a single workpiece setup. Manual operation is also available.
Applications include mold making, heavy machinery, locomotives, shipbuilding, power generation, machine tools, and aerospace.

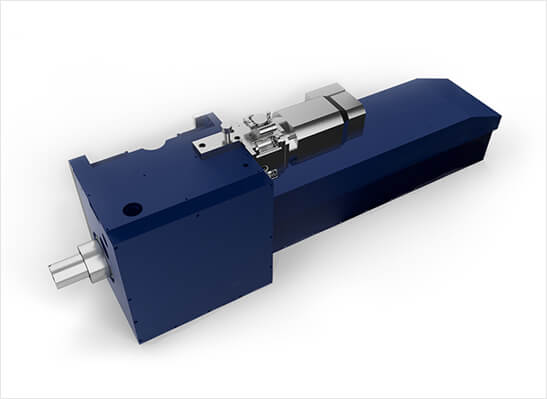

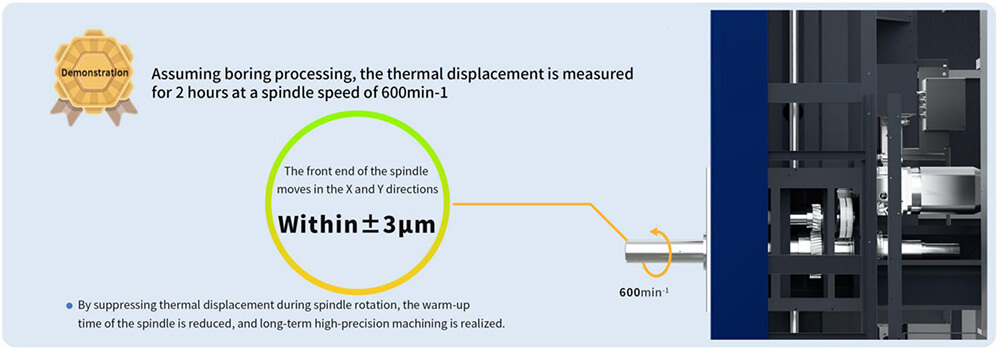

Precision Bearing housing and gearbox cooling reduce thermal displacement; Tapered roller bearings handle radial and axial loads; circulating cooling lubrication minimizes temperature rise and ensures spindle accuracy. |  |

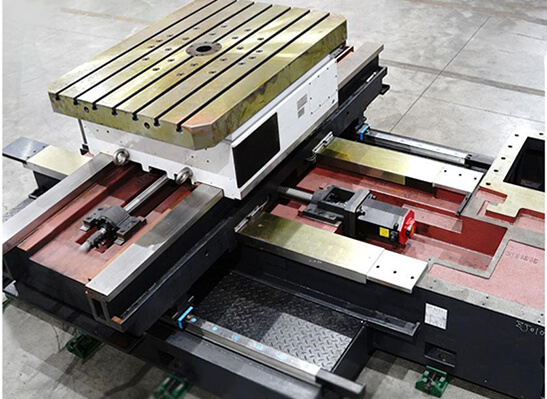

 | Rigidity Wide sliding surfaces support heavy loads; X, Y, Z axes use rectangular, induction-hardened and ground sliding surfaces; FEM-optimized main structures; Double-wall column (based on MAF-C/MAF-R models) resists heavy cutting forces. |
Productivity Spindle power: 15/18.5 kW (FANUC) or 17/20.5 kW (SIEMENS); Rapid feed: X/Y/Z 10 m/min, W 5 m/min, B 5.5 rpm. |  |

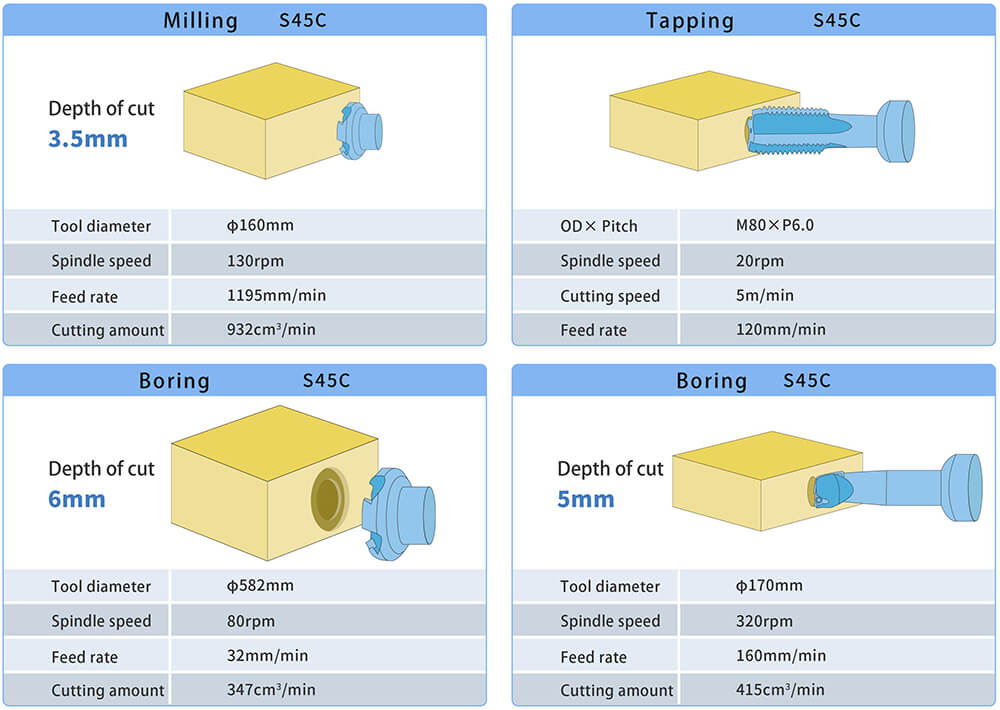

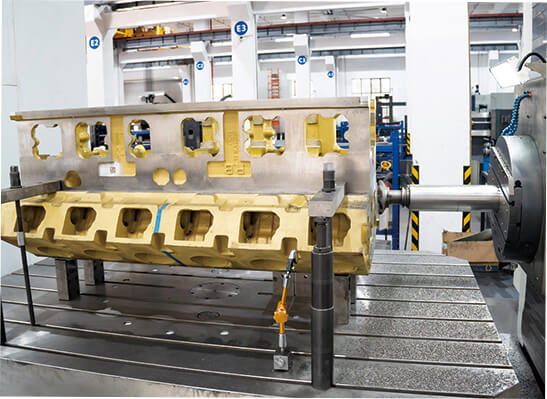

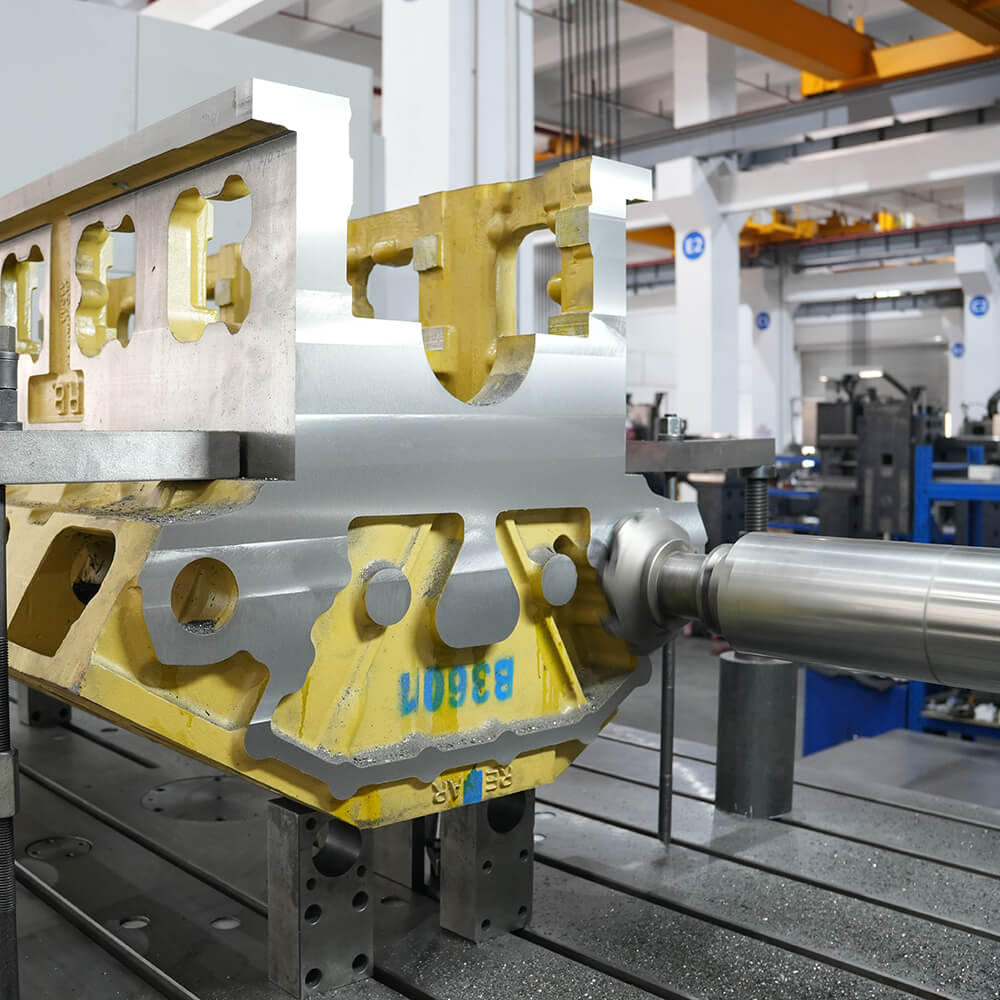

Supports low-speed, high-torque machining for large-diameter milling and boring.

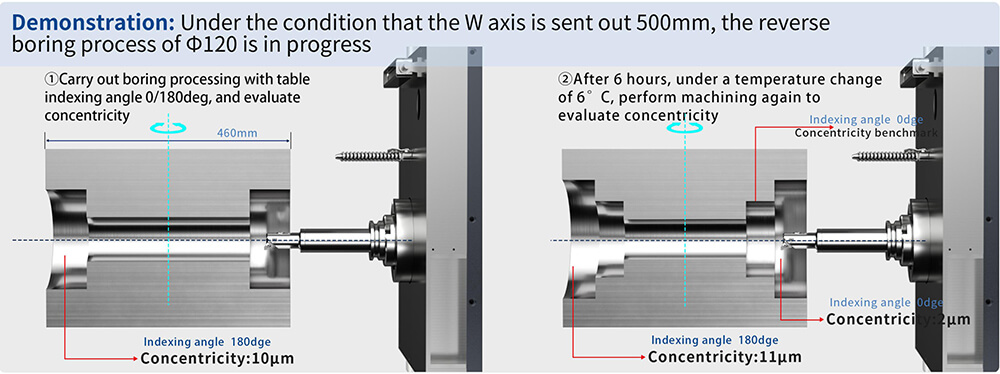

Boring bar extension up to 550 mm (displacement-type spindle with stepless speed control).
Suitable for deep-hole boring and good workpiece accessibility.
