Overview

Floor type Horizontal Machining Center WJ-3015/3020/3025 series, with heavy-cutting design concept, is specially designed for heavy-cutting and heavy-load processing applications.

It excels in machining mold bases and frames, providing high-efficiency operations for cavity roughing, complex surface finishing, and deep cavity machining.

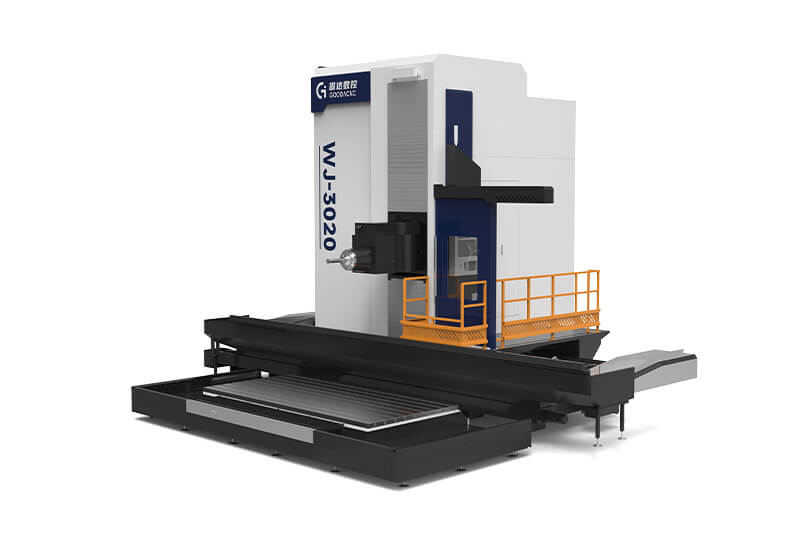

Features-1

Making a Great Machine Tool Even Better

Fixed worktable, side-mounted spindle head, floor-type structure;
Three-sided four-guide column design ensures ultra-rigid wrap-around stability;
450x500mm square ram with four-sided box guideway spindle box.

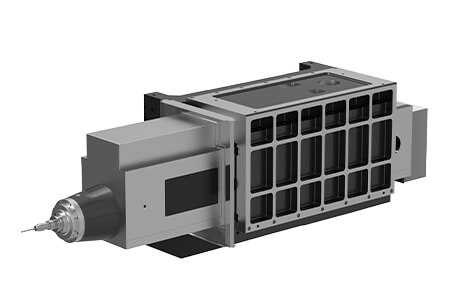

Detailed Display-3

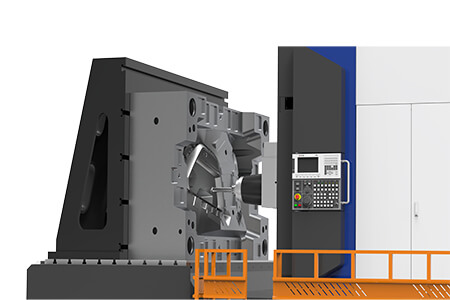

Detailed Display-1

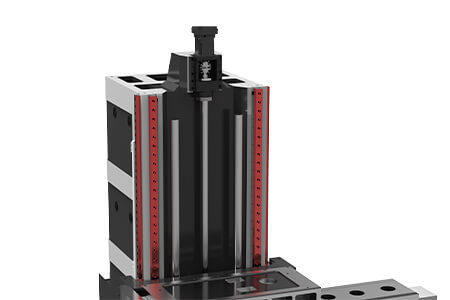

Detailed Display-4

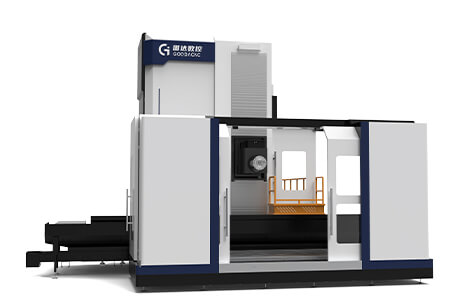

Detailed Display-2

	Items	Unit	WJ-3015(WJ-3020)	WJ-3025
Worktable	Worktable size	mm	3200×1500(Customizable)	3200×2000(Customizable)
	Max.load capacity	T	30	35
	T-slot size specs	mm	9-22×160	11-22×220
Travel	X axis travel	mm	3000 (optional 4000/5000/6000)	3000 (optional 4000/5000/6000)
	Yaxis travel	mm	1500(2000)	2500
	Z axis travel	mm	850	850
	Ram size	mm	450×500	450×500
Spindle	Spindle taper	-	BT50/φ220	BT50/φ220
	Spindle motor power	kW	MK:30/37(optional 22/26)	MK:30/37(optional 22/26)
	Max.spindle speed	rpm	3000(6000)	3000(6000)
Feed	X/Y/Z axis rapid move speed	m/min	10/10/10	10/10/10
Tool magazine	Tool capacity	T	24T(or40T)	24T(or 40T)
Accuracy	Positioning accuracy	mm	0.02/1000	0.02/1000
Accuracy	Repositioning accuracy	mm	0.015/1000	0.015/1000
Others	Total power required	KVA	60	60
	Machine size	m	9.0×6.0×3.8(4.3)	9.0×6.5×4.5
	Machine weight(approx.)	kg	28000(30000)	36000

*Note: Parameter above is for reference only, please contact us for more detailed data or inquire customized solutions.

Application Cases

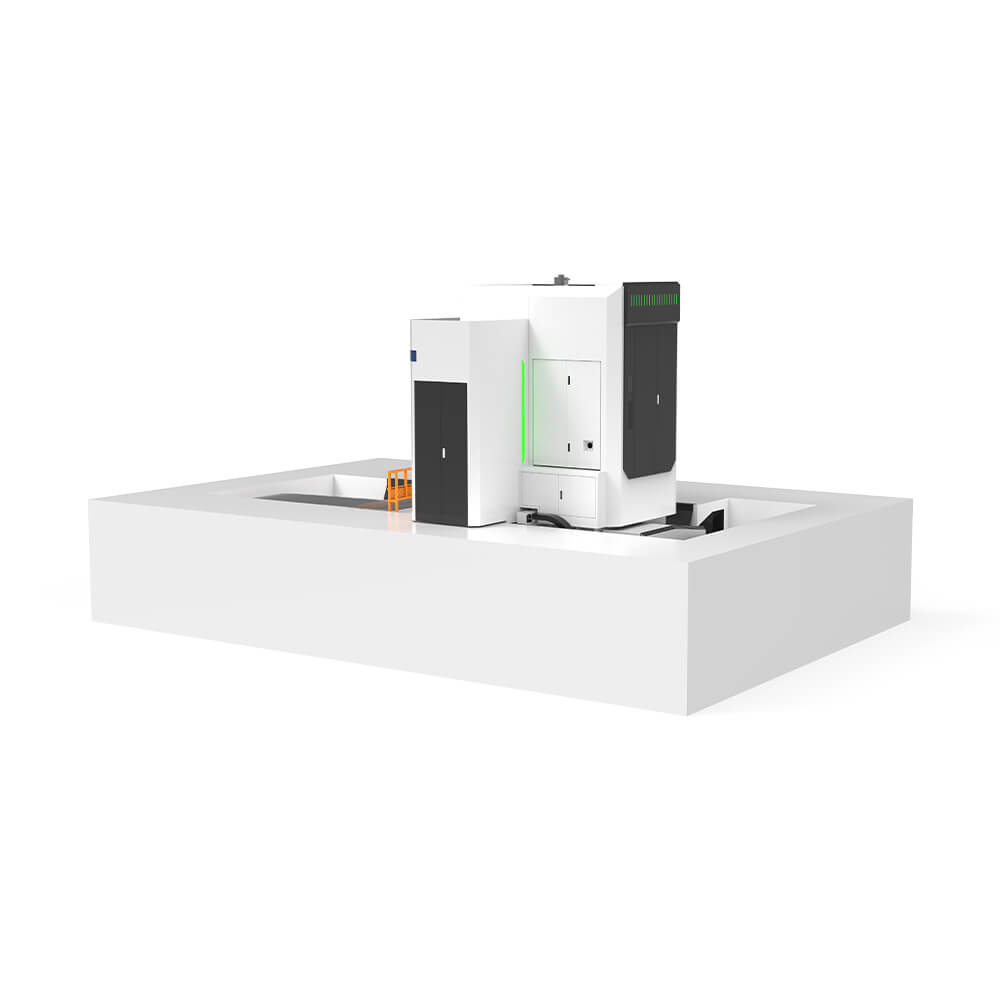

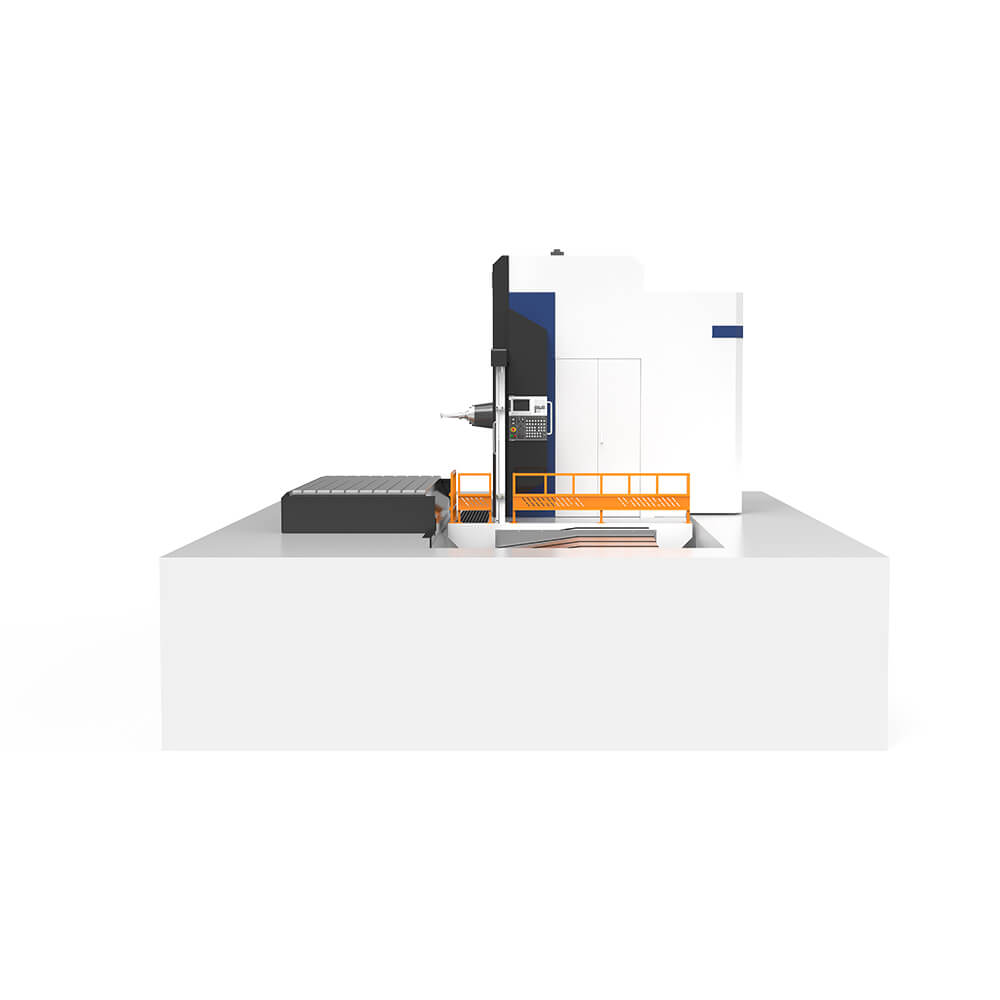

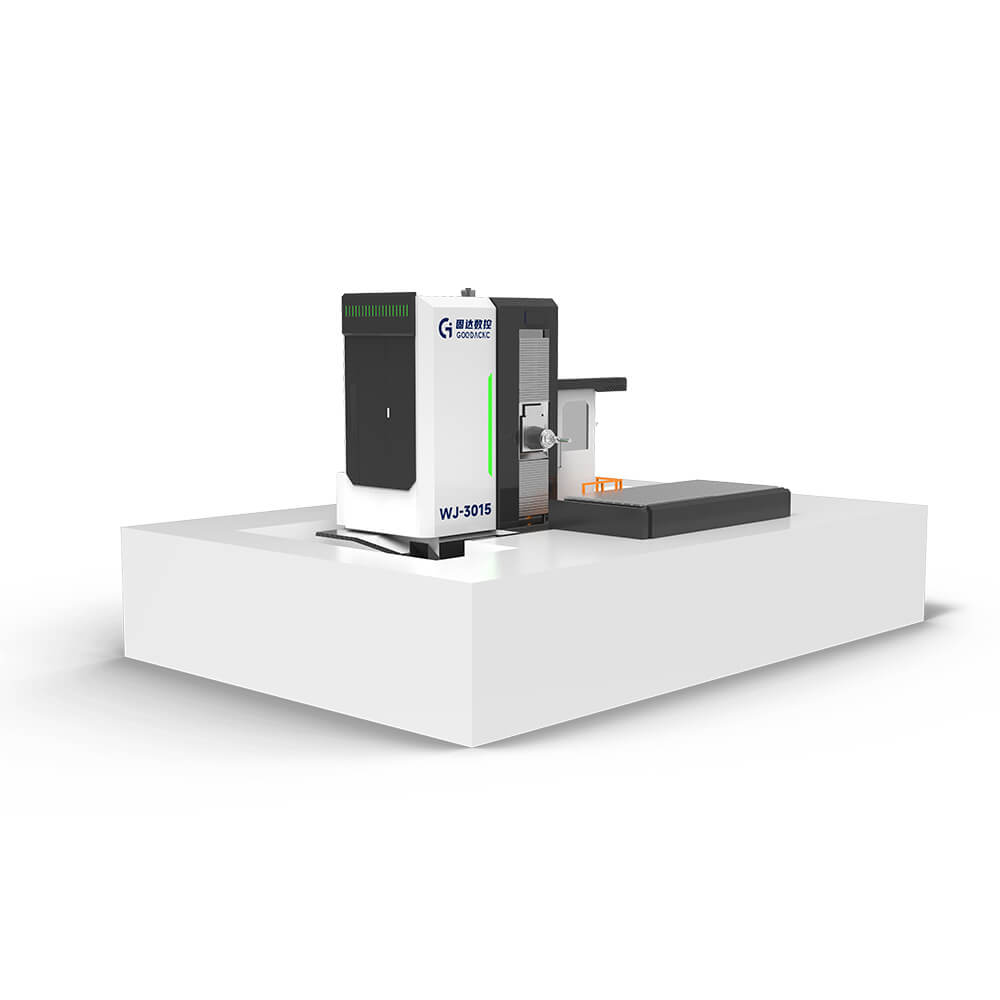

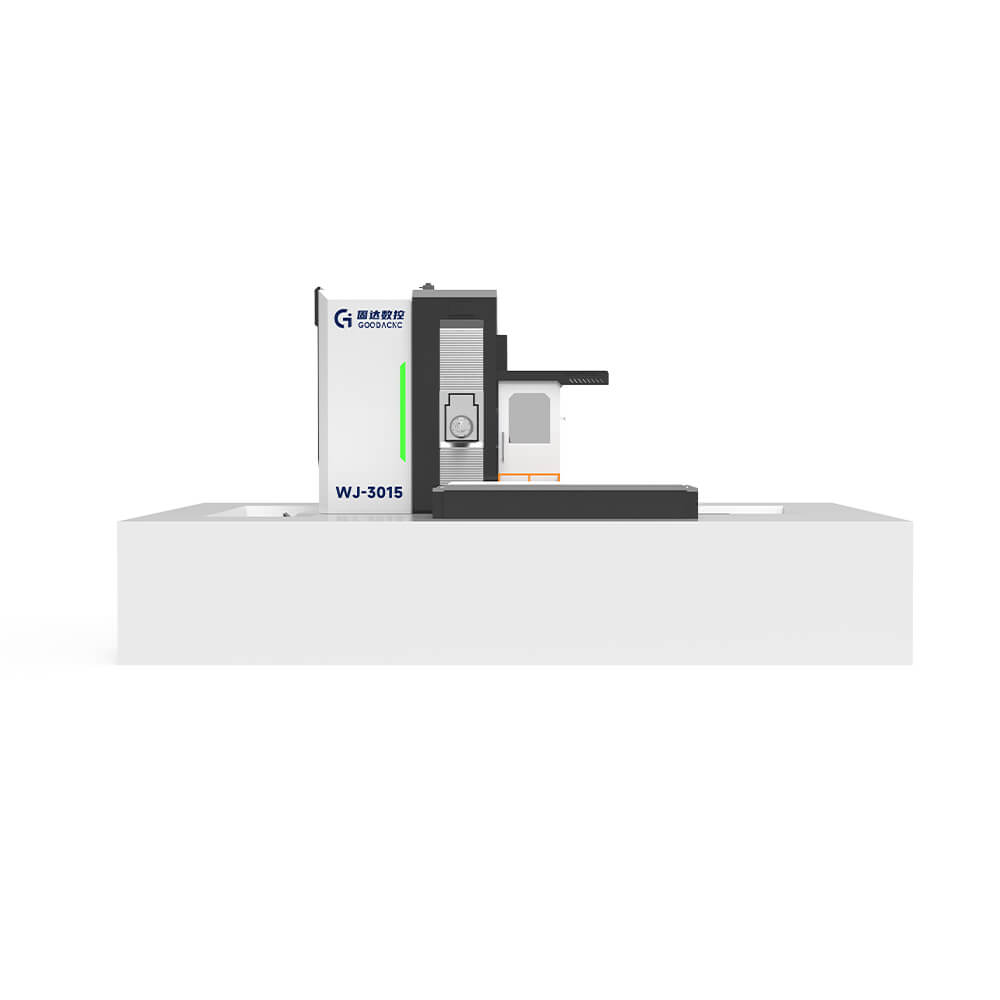

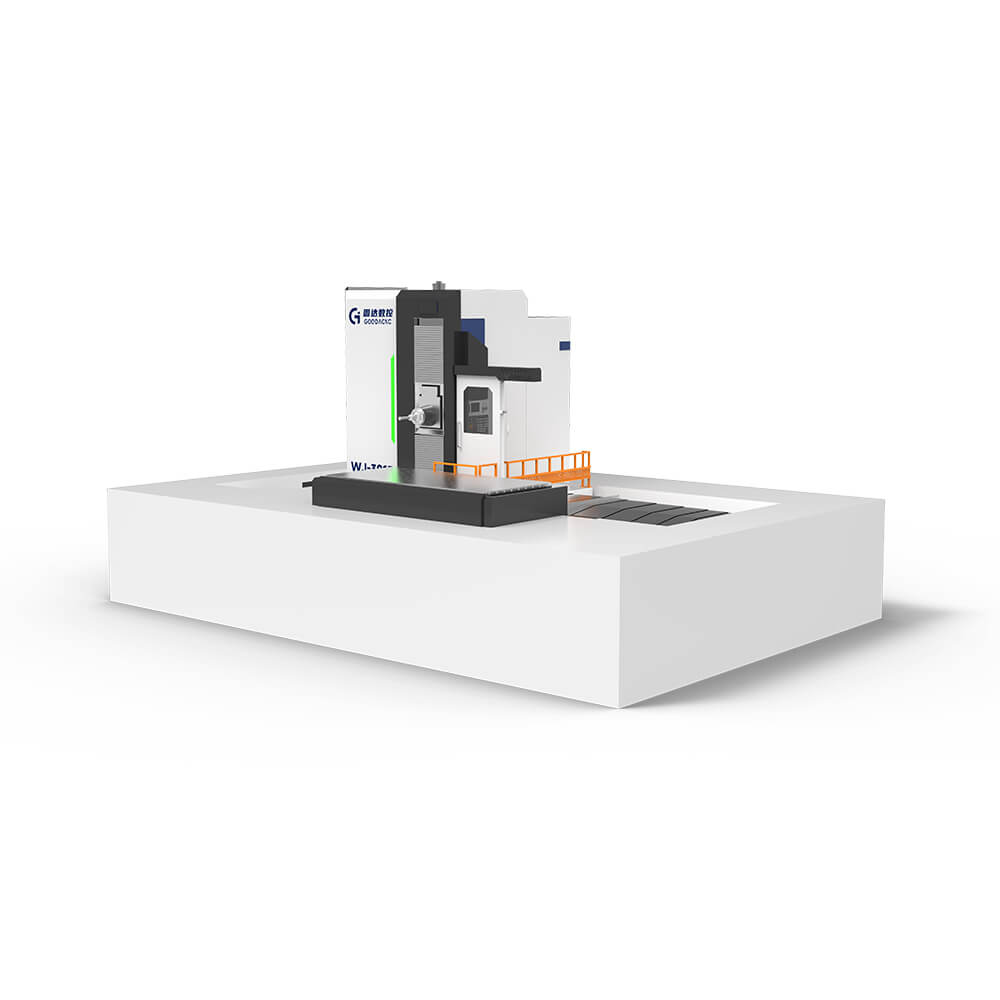

Horizontal Machining Center WJ-3015
