Angle milling lets you shape metal at certain angles. This helps make better parts. You use angle milling to make surfaces that are hard to do with normal milling. Angle Milling: Definition shows this process gives you more control. You can design things the way you want. GooDa Machinery is a leader with new CNC solutions for angle milling. When you pick angle milling, you get these benefits:
The process is faster and there is less waiting time
The product is better because of real-time data
It helps big industries like cars and planes
The methods are better for the planet and save energy
Angle milling helps shape metal at different angles. This lets you make tricky parts like beveled edges and chamfers. Using angle milling can make things faster. It also makes products better because of real-time data and accuracy. Some industries, like aerospace and automotive, use angle milling a lot. It helps them make strong and light parts. Good planning and design are very important in angle milling. Always figure out the angles first. Use CAD software to make sure your model is correct. Quality control is very important. Check every cut and surface to make sure they are right. Pick the best tools for angle milling, like single-angle and double-angle cutters. This helps you get the shapes you want quickly. Take care of your machines and tools often. This stops problems like tools wearing out or getting out of line. It also helps you get the same good results each time. Think about using CNC machines for angle milling. They help you be more exact and save time when setting up. This makes the work go faster.

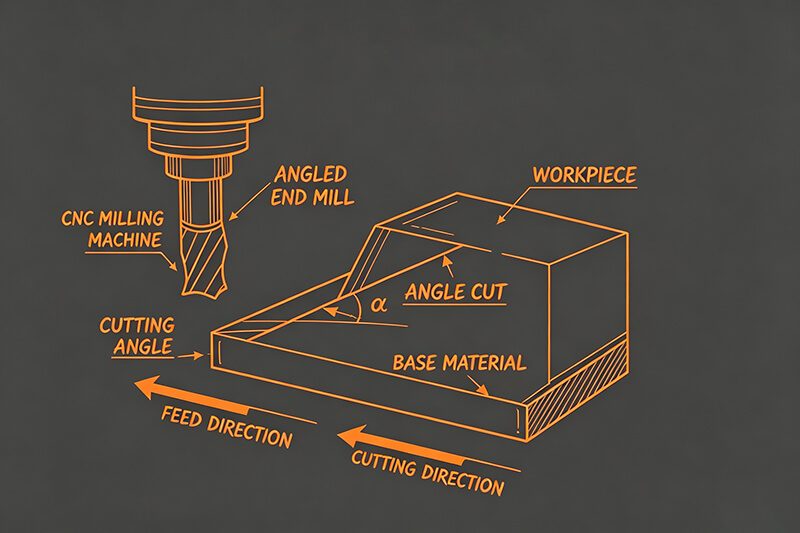

Angle milling is a way to shape metal at different angles. You do not just make straight lines or flat surfaces. Instead, you cut the metal at special angles. This helps you make things like beveled edges and chamfers. These shapes are hard to make with regular milling. Angle milling lets you control the final shape better. You can design parts with special angles for a better fit or more strength. GooDa Machinery uses advanced CNC machines for this process. Their machines make angle milling more exact and faster.
You may wonder how angle milling is different from traditional milling. The main difference is the angle of the cut. Angle milling uses cutters that cut at angles that are not 90 degrees. Traditional milling usually cuts straight down to make flat surfaces. The table below shows the main differences:
Feature | Angle Milling | Traditional Milling |
|---|---|---|
Cutting Angle | Cuts at special angles that are not 90° | Cuts at a 90-degree angle (straight down) |
Tool Type | Uses special angular cutters | Uses regular milling cutters with straight teeth |
Purpose | Makes beveled edges, chamfers, or angled shapes | Makes flat surfaces and straight lines |
Complexity | Needs you to know about geometric movement | Is usually easier with simple setups |
Applications | Used for looks, weld prep, and lowering stress | Used for basic milling jobs like facing and slots |
You use angle milling when you need special shapes or features. You use traditional milling for flat surfaces. GooDa Machinery’s CNC machines let you switch between these ways easily.
Angle milling is very important in making things today. Many industries need parts with angled surfaces. For example, car and airplane makers use angle milling to make strong and light parts. Mold and die makers use it to make complex shapes. Angle milling can make your products look and work better. GooDa Machinery leads with high-precision CNC machines. Their machines help you meet tough industry rules and make good parts every time. You can trust them to handle even the hardest angle milling jobs.
Image Source: unsplash

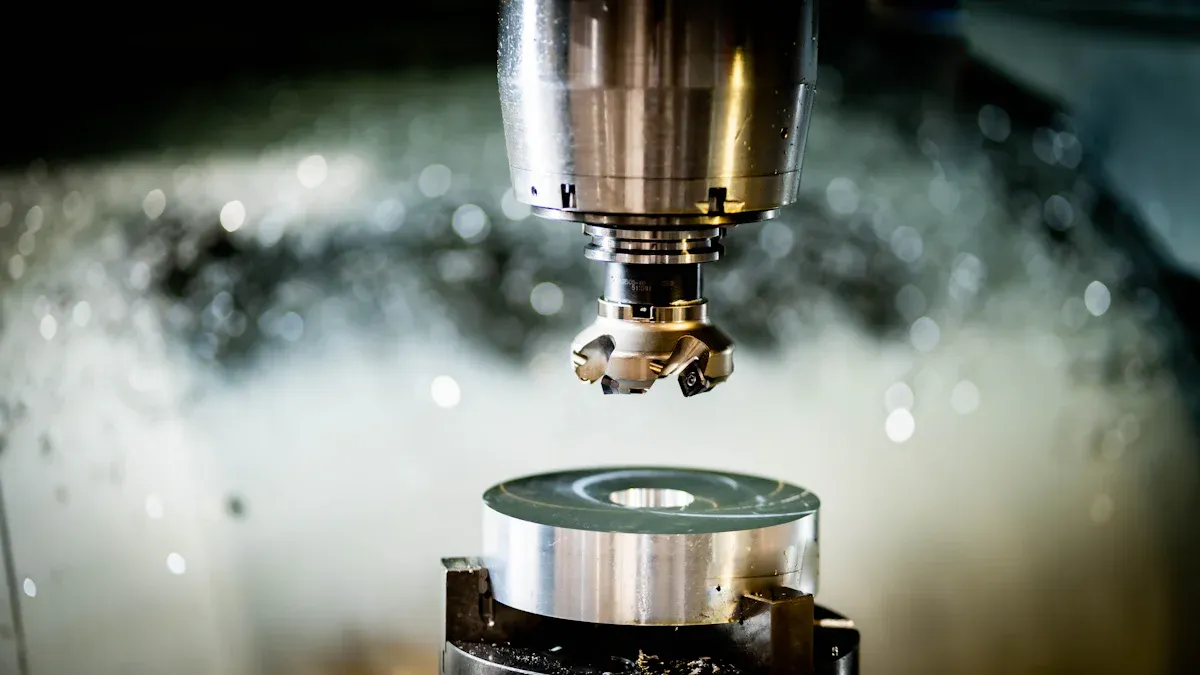

Angle milling starts with planning and design. You must know what you want first. This helps you avoid mistakes and get good results.
You need to pick the cutting angle for your part. Check your design drawings and look at the specs. Use a protractor or digital tool to measure the angle. This step helps with angular alignment. If you skip it, your part may not fit or work.
Here are the main steps for finding angles:
Look at the design and write down all angles.
Use measuring tools to check each angle.
Mark the workpiece so you remember.
Double-check your measurements to be sure.
Tip: Always calibrate your tools before you start. This makes sure your tools and machines give the right angle.
You should use CAD software to make your design. CAD lets you see the part in 3D and check angles. You can change the model until it looks right. This step also helps you plan the tool path and process.
Design Consideration | Description |
|---|---|
Tool Selection | Pick tools made for angular jobs, focus on chip removal. |
Workpiece Analysis | Check material properties and change settings for angular forces. |
Fixturing Strategy | Make sure workholding is strong and lets you reach the part. |
Angular Positioning | Put tools in the right spot for the angles you want. |
Tool Length Compensation | Adjust for tool length to keep accuracy in angular work. |
Clearance | Make sure there is enough space for tool movement and chip removal. |
Workholding Stability | Keep the workpiece steady so it does not move. |
Coolant Delivery | Use coolant well to control heat and chip flow. |
Always check your CAD model for mistakes. Calibrate your digital tools to avoid errors when you use the machine.
Workpiece setup is very important in angle milling. You must keep the workpiece still so it does not move. This step affects how good your part will be.
You need to hold the workpiece with strong vises or fixtures. Sometimes, you need special jigs for odd shapes. Make sure the workpiece tilts to match the cutting angle. Use angle gauges or digital tools for calibration. Check the alignment before you cut.
Use strong vises or fixtures to keep things steady.
Check alignment with measuring tools again.
Fix any problems before you start machining.
Keep tool and fixture extension short for more strength.
Use a dial indicator for calibration.
If you do these steps, you will have less vibration and a better finish. This also helps you control cutting forces during the process.
Pick the right material for your part. Aluminum, steel, and brass are common for angle milling. Each material reacts differently to cutting forces. Check hardness and toughness before you start. Some materials need slower cutting speed and feed rate to protect the tool.
Aluminum is easy to cut and good for fast work.
Steel is strong but needs more force.
Brass gives a smooth finish but can be soft.
Always match your tool to the material. This helps you get good results and keeps your tools safe.
Machining angles is the main part of angle milling. You must set the tool path and parameters for each cut. This step decides how smooth and accurate your part will be.
Plan the tool path in your CAM software. The tool should take the shortest and safest route. Set cutting speed and feed rate based on the material and tool. Use lighter cuts with more passes for better accuracy. This lowers cutting force and helps you avoid mistakes.
Pick the right tool for the job. Angle milling needs special cutters for angled surfaces.
Choose climb or conventional milling based on your setup.
Make sure the tool is installed and positioned right. Calibration is important for accuracy.
Use coolant to keep the tool cool and remove chips.
Watch cutting forces during the process. Too much force can cause vibration or break the tool.
Note: Always check the tool and workpiece after each pass. This helps you find problems early and change your process if needed.
Different materials for angle milling may need different tool paths and speeds. Change your settings for each job. If you want a better finish, try climb milling, but watch for tool bending. Good chip removal keeps your tool sharp and your part clean.
Angle milling works best when you pay attention to every step. Planning, setup, and machining angles all matter. You can get precise results by following these steps and using calibration.
Quality control makes sure your angle milling work is correct. You need to check every cut and surface for accuracy. This step keeps your parts safe and reliable for cars, planes, or molds. There are different ways to inspect your work.
There are many ways to check angle milling quality. Each way helps you measure angles, surfaces, and features. You use special tools and follow careful plans for the best results.
Quality Control Method | Description |
|---|---|
GD&T Requirements | You turn engineering needs into a plan for checking. You map important features and pick where to measure for angle milling. |
Measurement Devices | You use tools like CMMs, height gauges, and micrometers. These tools help you check angles and surfaces very closely. |
Statistical Process Control (SPC) | You watch the process to see changes or trends. You can change your settings before problems start. |
Measurement System Analysis (MSA) | You check if your measuring tools work well. You keep tools accurate by managing calibrations. |
You should keep measurement uncertainty less than 10% of the tolerance you want. CMMs are very accurate for small tolerances, often below ±0.0025 mm. You need to keep the room temperature steady for good measurements. CMM rooms stay the same so your results do not change.
Here are steps to keep your angle milling under control:
Watch your process to see trends early.
Make changes before your tolerances get too loose.
Use data to help you fix problems.
Tip: Always calibrate your tool before you measure. This step helps you avoid mistakes and keeps your results the same.
You may have some common problems during angle milling. These problems can hurt the quality of your parts. You need to know how to find and fix them.
Misalignment: Your tool may not match the angle you want. This can make uneven surfaces or wrong shapes.
Tool wear: Your tool can get dull or break. This causes rough finishes and bad accuracy.
Vibration: You may see lines or marks on your part. Vibration happens when your tool or workpiece is not tight.
Measurement errors: Your tools may give wrong numbers. This can happen if you skip calibration or the room gets too hot or cold.
Chip buildup: Chips can block your tool and change your cut. You need to clear chips often.
You can fix these problems by checking your setup, using the right tool, and keeping your area clean. You should check your parts after each pass. This helps you find mistakes early and fix them before they get worse.
Note: Quality control in angle milling is not just about the last part. You need to watch every step, from planning to cutting. You can use new tools and methods to keep your process working well.
You can trust GooDa Machinery for high-precision CNC machines for angle milling. Their machines help you meet strict quality rules and lower common problems. You get better results when you follow quality control steps and use the right tool for each job.
Image Source: pexels

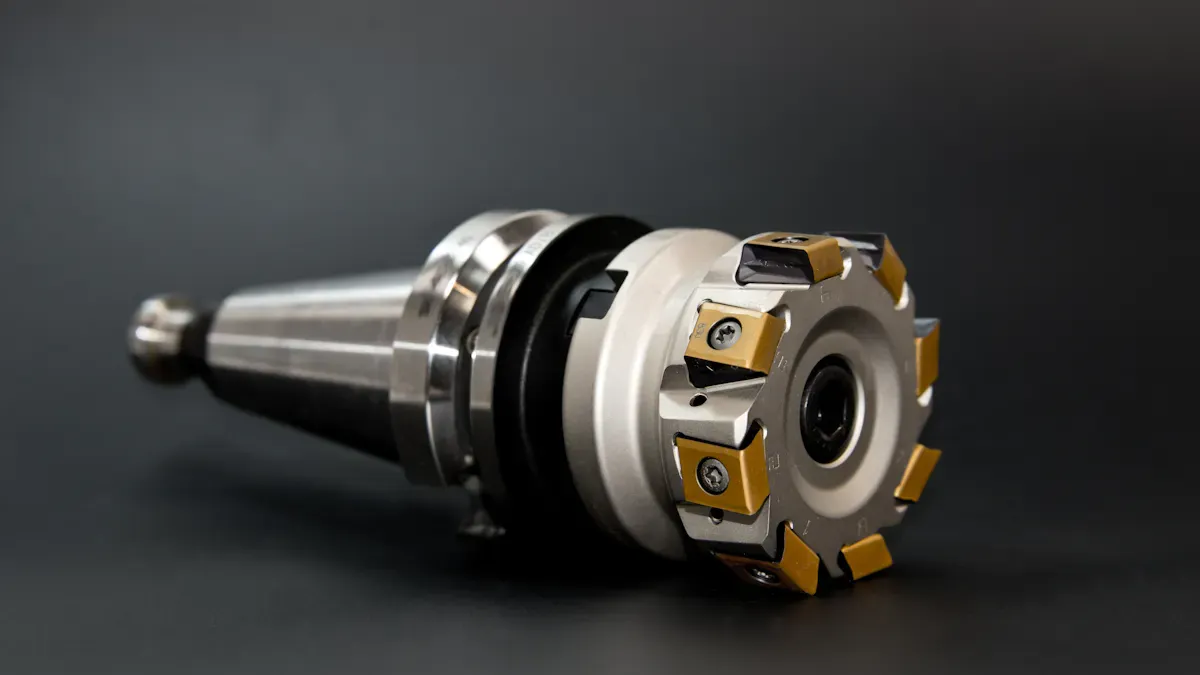

You use single angle milling cutters when you need to create a sloped surface or a chamfer on your part. These angle milling cutters have cutting edges on one tilted side. You can find them in common angles like 30°, 45°, and 60°. The teeth sit on a conical surface and a flat face. This design gives you good rigidity and helps you keep your cuts stable. You often use these milling cutters for making angled surfaces and chamfers. You can choose from sizes between 60° and 85°, usually in 5° steps. When you want to keep your tool rigid and avoid vibration, single angle milling cutters work well.
Tip: Always check the angle on your cutter before you start. This helps you match the tool to your design and keeps your results accurate.
Double angle milling cutters have cutting edges on two tilted faces. You use these when you need to make vee-shaped slots or thread profiles. These angle milling cutters let you cut two angled surfaces at the same time. This saves you time and keeps your work precise. The most common angles are 45°, 60°, and 90°. The double-sided design gives you more rigidity and lets you finish complex shapes in fewer passes. You can see the main differences between single and double angle milling cutters in the table below:
Cutter Type | Tooth Arrangement | Application | Typical Angle Sizes |
|---|---|---|---|
Single-angle | Teeth on conical surface and flat face | Used for angled surfaces and chamfers | 60° to 85° in 5° increments |
Double-angle | Teeth on two conical faces | Used for creating vee slots | Commonly 45°, 60°, 90° |
You should pick double angle milling cutters when you want to make vee slots or need to cut two angles at once. This tool gives you strong rigidity and helps you keep your part accurate.
You may need specialty tools for complex angle milling jobs. These tools include 90° angular heads, deep milling heads, and universal milling heads. Each one helps you reach tough spots and keep your tool at the right angle. For example, a 90° angular head lets you mill, drill, or tap at a perfect right angle. A deep milling head helps you reach deep pockets in molds or car parts. A 45° universal milling head lets you adjust the tool for chamfers or inclined surfaces.
Specialty tools give you many benefits:
You reduce setup time by up to 80%.
You improve surface finish by using shorter tools with better rigidity.
You boost precision because you do not need to move your part as much.
You finish jobs faster and save labor.
When you use these tools with the right fixture, you get better rigidity and accuracy. GooDa Machinery offers high-performance CNC machines that support many types of angle milling cutters and specialty tools. You can trust their machines to keep your tool rigid and your results sharp. Always match your tool and fixture to your job for the best results in angle milling.
You need good accessories and fixtures for angle milling. These tools help you hold your workpiece steady. They also keep your cuts accurate. Using high-quality accessories makes your work easier. You can finish jobs faster and meet customer needs.
Fixtures are very important in angle milling. They keep your workpiece in the right spot. You do not have to worry about movement or vibration. This gives you a smooth surface and the right angle. Workholding accessories, like clamps and vises, give extra support. They help keep the workpiece safe, even with heavy cutters or tough materials.
You get many benefits from using the right accessories and fixtures:
You set up jobs quickly and make more parts.
You waste less material and save money.
You make every part the same for better quality.
You keep your workspace safer by stopping slips.
You spend less time fixing mistakes.
You can add automation and do more jobs easily.
You get more accuracy and can do different milling work.
Pick accessories that fit your machine and job. Angle plates help tilt the workpiece. Rotary tables let you turn the part for compound angles. Precision vises hold small parts tight. Custom jigs help with odd shapes or special projects. Stops and locators help you repeat setups for many parts.
GooDa Machinery has advanced CNC machines for many accessories and fixtures. Their machines use quick-change systems for fast setups. You can trust their designs to keep your workpiece steady and your results sharp.
Tip: Always check your fixtures before you start. Make sure everything is tight and lined up. This helps you avoid mistakes and keeps your parts safe.
Using the right accessories and fixtures makes angle milling smoother and more reliable. You save time, cut costs, and get better results every job.
You can pick from two main ways to do angle milling. These are conventional milling and climb milling. Each way changes how the cutter moves on the workpiece. Your choice affects how smooth your part is, how long your tool lasts, and how well your machine works.
Here is a table that shows the main differences:
Aspect | Climb Milling | Conventional Milling |
|---|---|---|
Cutting Direction | Cutter turns with the feed, so the edge wears less. | Cutter turns against the feed, so there is more friction and wear. |
Tool Engagement | Starts cutting with thick chips, which keeps the workpiece steady. | Starts cutting with thin chips, which can lift the workpiece. |
Surface Finish | Makes a smoother finish because chip thickness changes gently. | Can make a rougher finish because the tool may bend. |
Machine Performance | Needs a precise machine to handle forces going down. | Does not need as much precision, good for older machines. |
Tool Wear | Tool wears less because cutting stays steady and cool. | Tool wears more because there is lots of friction at the start. |
Climb milling is good if you want a smooth finish and have a modern CNC machine. Conventional milling is better for older machines or tough materials.
Tip: Always check if your machine is stable before you pick a milling method. This helps you stop vibration and tool damage.
Multi-axis milling gives you more control over angle milling. You can move the tool in many directions at once. This lets you make shapes and surfaces that are hard with simple machines.
You can move the tool up, down, sideways, and in other ways.
You can make parts with curves, slopes, and tricky angles.
You do not need as many setups, so you save time.
You get a smoother finish and do not need extra steps like grinding.
Your process is easier and your parts are more alike.
Multi-axis milling helps you do advanced jobs. You can trust this method for good results and fast work.
Sometimes, you need to cut more than one angle at once. This is called machining compound angles. You can use different ways to do this:
Set the compound slide at a special angle, like 29.5 degrees, to match thread shapes.
Put the compound slide parallel to the bed for easy threading.
Change the compound angle for small moves to get the right size.
Use angles like 120 degrees for making 60-degree points or small tapers.
Use a digital readout (DRO) to zero your tool and measure angles very accurately.
These methods help you make parts with complex features. You get more control and can meet tight rules. This matters for industries like aerospace, cars, and mold making.
Note: Always check your angles and tool positions twice. Careful setup gives you better results and safer machining.
Precision methods help you make parts that fit well. You need these methods when parts must be very exact. Some jobs, like medical devices or airplane parts, need high accuracy. There are different ways to get this kind of precision.
CNC milling is a great way to be precise. A computer controls the machine. The computer tells the tool where to cut. This makes every part the same. You can get tight tolerances with CNC milling.
Here are some steps to help you be more precise in angle milling:
Use good CNC machines. These machines keep the tool steady and stop mistakes.
Pick the right cutter for your job. Sharp tools make smooth cuts and nice surfaces.
Calibrate your machine before you start. This step makes sure the angles are correct.
Hold the workpiece tight with strong fixtures. Fixtures stop the part from moving.
Check the tool path in your CAM software. The software helps you plan the best way to cut.
Watch the process with sensors. Sensors tell you if something goes wrong during milling.
Tip: Always check your parts after you finish milling. Use tools like micrometers or CMMs to measure angles and surfaces.
You can see how precision methods help in this table:
Method | Benefit | Application |
|---|---|---|
CNC Milling | High accuracy, repeatability | Medical, aerospace |
Calibration | Consistent angles | Mold and die making |
Quality Fixtures | Stable workpiece | Automotive, electronics |
Real-Time Monitoring | Early error detection | Custom fabrication |
CNC milling is good for jobs where parts must match. This method is used for medical devices, where safety is important. It also works for airplane parts, which must fit and be strong.
You get better results by using more than one precision method. Start with a calibrated CNC machine. Use sharp cutters and strong fixtures. Plan your tool path well. Watch the process and check each part. These steps help you meet strict rules.
Note: GooDa Machinery has advanced CNC machines for angle milling. Their machines help you use precision methods and get very exact results.
Precision methods help you trust your work. Your parts will fit, work, and last a long time. You can meet industry needs and always deliver good quality.
Angle milling and traditional milling are not the same. Angle milling uses cutters that move at special angles. Traditional milling uses tools that cut straight down. Angle milling shapes surfaces like bevels or chamfers. Traditional milling shapes flat surfaces and straight lines. Angle milling often uses advanced CNC machines. These machines help you control the angle and keep your cuts precise. You can change the tool path and adjust the angle for each job. Traditional milling usually follows a simple path and does not change the angle.
Here is a table that shows how angle milling compares to traditional milling in process efficiency and output quality:
Aspect | Angle Milling (Turn-Milling) | Traditional Milling |
|---|---|---|
Process Efficiency | Higher material removal rates | Standard material removal rates |
Surface Roughness | Better surface quality | Variable surface quality |
Tool Life | Longer tool life | Shorter tool life |
Cutting Forces | Smaller cutting forces | Higher cutting forces |
Axial Flexibility | Higher axial flexibility | Limited axial flexibility |
Precision | Better for precision components | Variable precision |
Angle milling gives you more control and better results. You can make parts with tight tolerances and smooth surfaces. Traditional milling works well for simple jobs, but angle milling helps you do more complex work.
Angle milling has many good points. You can shape parts with special angles. This lets you design parts that fit better and last longer. You get higher material removal rates, so you finish jobs faster. The surface quality is better, which means less finishing work. You use less force, so your tools last longer. You can make precision parts for industries like aerospace and automotive.
Here are some advantages:
You get more design flexibility.
You improve surface quality.
You save time with faster material removal.
You extend tool life.
You reduce cutting forces.
You achieve higher precision.
Tip: Angle milling helps you meet strict industry standards. You can trust this process for jobs that need accuracy and quality.
Angle milling has some limits you should know. You need special machines and cutters. The setup takes more time because you must align the workpiece and tool. You must plan the tool path carefully. If you skip these steps, you may get errors or rough surfaces. You also need skilled operators to run the machines. Traditional milling is easier to set up and use for simple jobs.
Here are some common limitations:
You need advanced equipment.
You spend more time on setup.
You must check alignment often.
You need skilled workers.
You may face higher costs for complex jobs.
You should ask yourself, how is angle milling different from traditional milling? Angle milling lets you do more, but you must prepare well and use the right tools.
Note: You can overcome many limits by using high-performance CNC machines from GooDa Machinery. These machines help you get the best results in angle milling.
You gain more design flexibility with angle milling. This process lets you shape parts with unique angles and features. You can use a tool to reach difficult spots and create complex shapes. 5-axis CNC machining allows you to rotate the workpiece and the tool. You finish parts in one setup. You do not need to move the part again. This saves time and keeps your design accurate. You can make parts for cars, planes, and molds with special angles. Angle milling helps you meet strict design needs and create parts that fit together well.
Tip: If you want to make parts with tricky angles, angle milling gives you the freedom to do so.
Angle milling improves surface finish on your parts. You use a tool that cuts at the right angle, so you get a smooth surface. The process reduces rough spots and keeps the surface clean. You can achieve a consistent surface finish, which means every part looks and feels the same. This matters for products that need to look good and work well. Angle milling also helps you reach controllable dimensional accuracy. You can check your part after each cut and make sure the size is correct. This process gives you better results than traditional milling.
Here is a table that shows how angle milling improves surface quality and accuracy:
Benefit | Angle Milling Result |
|---|---|
Surface finish | Smooth and clean |
Dimensional accuracy | High and controllable |
Consistent surface finish | Reliable for every part |
You can trust angle milling to deliver parts with a good surface finish and precise size.
You need special equipment for angle milling. Standard machines may not handle complex angles. You must use advanced CNC machines and the right tool. These machines cost more and require skilled operators. You must check the machine before you start. If you use the wrong equipment, you may not get the results you want.
You need a machine that can move in many directions.
You must use cutters made for angle milling.
You should keep your equipment clean and calibrated.
Angle milling takes more setup time. You must align the workpiece and the tool carefully. You need to check the angle and position before you start. This step helps you avoid mistakes. You may spend extra time planning the tool path and securing the part. If you skip setup, you risk errors and poor surface finish.
Note: Careful setup leads to better results and fewer problems during machining.
You can reduce setup time by using quick-change fixtures and planning your process well. Angle milling gives you many benefits, but you must prepare your equipment and setup for the best results.
Angle milling is used a lot in aerospace. Engineers need parts that are very exact and have special shapes. Angle milling helps make surfaces that fit together well. You can make things like wing parts, turbine blades, and brackets. These parts must be strong but not heavy. Angle milling lets you cut tricky angles and curves. This helps the parts meet tough safety rules. GooDa Machinery makes CNC machines that help you be very precise. You can count on these machines to give the same good results for every aerospace job.
Tip: Always check your measurements when making aerospace parts. Even small mistakes can hurt how the part works or how safe it is.
Angle milling is important in making cars. Car companies need engine blocks, transmission cases, and suspension parts with exact shapes. Angle milling lets you cut detailed shapes and designs. This makes sure parts fit together with no gaps. For example, you can shape engine blocks so they work better and last longer. You also lower friction and wear by making smooth surfaces. GooDa Machinery’s CNC machines help you keep up with what car makers need today.
Here is a table that shows how angle milling helps car parts:
Component | Benefit of Angle Milling |
|---|---|
Engine Block | Perfect fit, improved performance |
Transmission Case | Complex shapes, higher reliability |
Suspension Parts | Strong joints, reduced wear |
You can see that angle milling helps cars work better and last longer.
Angle milling is used a lot in mold and die shops. This process lets you make molds with sharp corners, deep holes, and angled sides. You need these shapes to make plastic parts, metal castings, and stamped items. Angle milling helps you get smooth surfaces and very close sizes. You can make dies that shape materials with great accuracy. GooDa Machinery has CNC machines that are good for mold and die work. These machines let you set up fast and cut very exactly. You save time and waste less by using angle milling in your shop.
Note: Angle milling lets you design molds and dies for many jobs. You can meet what customers want and always make good products.
You often need to make unique parts in custom fabrication. Angle milling gives you the power to shape metal at any angle you want. You can create special brackets, frames, or housings that do not fit standard designs. This process helps you solve problems for industries like robotics, electronics, and art installations.
You start by looking at your design. You decide what angles and shapes you need. You use CAD software to draw your part. This lets you see the part in 3D before you cut anything. You can change the design until it fits your needs.
When you move to the shop floor, you set up your workpiece with strong fixtures. You pick the right cutter for the job. You check your angles with digital tools. You use a CNC machine to follow the tool path you planned. This keeps every cut accurate.
GooDa Machinery gives you advanced CNC machines for custom jobs. These machines let you switch between different angles and tools quickly. You can make one part or many parts with the same setup. You save time and reduce mistakes.
Here are some ways angle milling helps in custom fabrication:
You can make prototypes for new products.
You can repair or upgrade old machines with new parts.
You can create art pieces with special shapes and surfaces.
You can build custom tools for your workshop.
Tip: Always check your part after each step. Use a protractor or a digital angle finder. This helps you catch mistakes early.
The table below shows how angle milling compares to other methods in custom fabrication:
Method | Flexibility | Speed | Surface Finish | Best Use Case |
|---|---|---|---|---|
Angle Milling | High | Fast | Smooth | Unique shapes, prototypes |
Traditional Milling | Low | Medium | Flat only | Simple parts |
Manual Filing | Very High | Slow | Rough | One-off adjustments |
You get the best results when you use angle milling for custom jobs. You can trust GooDa Machinery to give you the right tools and support. Their CNC machines help you meet your customer’s needs, no matter how complex the part.
Custom fabrication lets you turn ideas into real parts. Angle milling makes this process faster and more accurate. You can create anything you imagine with the right setup and tools.
You can improve your angle milling results by following smart setup practices. Start by choosing the right cutting parameters for your material and tool. This step helps you get a clean cut and saves time. Make sure you install and position the tool correctly. If you place the tool in the wrong spot, your part may not match your design.
Use CAM software to plan your tool path. CAM software helps you avoid mistakes and keeps your cuts safe, especially when you work with complex shapes. Always check the tool path before you start the machine. You should use coolant to keep the cutting area cool. Coolant lowers the temperature and helps your tool last longer. Pick the right coolant for your material.
Here are some setup tips to follow:
Select cutting parameters that match your material and tool.
Install and position the tool with care.
Use CAM software to plan accurate tool paths.
Apply coolant to control heat and protect your tool.
Tip: Double-check your setup before you start milling. This step helps you avoid costly errors.
You can make your tools work better by optimizing them for angle milling. Choose cutters with the right angle and shape for your job. Sharp tools give you a smoother finish and help you cut faster. Keep your tools clean and check them for wear after each job. Replace dull tools quickly to keep your parts accurate.
Try using shorter tools when possible. Short tools reduce vibration and give you more control. Adjust your feed rate and cutting speed based on the tool and material. If you use a high-quality CNC machine, you can set these parameters easily.
Optimization Step | Benefit |
|---|---|
Use sharp cutters | Smoother finish |
Choose correct tool | Better accuracy |
Keep tools clean | Longer tool life |
Adjust feed/speed | Improved efficiency |
Note: Regular maintenance keeps your tools in top shape and helps you avoid downtime.
You may face problems during angle milling. If you see rough surfaces, check your tool for wear. Dull tools cause poor finishes. If your part does not match the design, review your setup and tool path. Misalignment leads to errors.
Vibration can leave marks on your part. Use strong fixtures and shorter tools to reduce vibration. If you notice high temperatures, check your coolant system. Coolant helps prevent overheating and tool damage.
Follow these troubleshooting steps:
Inspect tools for wear and replace if needed.
Check alignment and tool path for accuracy.
Use strong fixtures to stop vibration.
Monitor coolant flow to control heat.
Tip: Keep a log of problems and solutions. This record helps you fix issues faster next time.
You can achieve better results by following these best practices. Careful setup, smart tool choices, and quick troubleshooting make angle milling easier and more reliable.
You have other ways to make angled features besides angle milling. Each method has its own benefits. It is important to know how these methods work. This helps you pick the best one for your project.
CNC multi-axis machining gives you more choices than angle milling. These machines move the cutting tool in many directions. You can reach almost any part of your workpiece. You can make complex shapes and compound angles in one setup. Five-axis mills let you place the tool very precisely. You do not need to move the workpiece much. This saves time and makes your cuts more accurate.
Milling machines are good for many shapes and sizes. Lathes are best for round parts. Mills help you make angled features on flat or odd surfaces. Multi-axis machining lets you make parts with tight tolerances. This method helps you work faster and meet strict quality rules.
Tip: If you need to cut tricky parts or many angles, CNC multi-axis machining is a smart pick.
Grinding methods help you get smooth surfaces and exact angles. You use abrasive wheels to take away material. Surface grinders are good for flat and angled surfaces. You can use special fixtures to hold your workpiece at the right angle. Grinding gives you a fine finish and high accuracy.
You often use grinding after milling to make the surface better. This method works best for hard materials like steel. You can make sharp edges and tight tolerances. Grinding takes longer than milling, but it gives a cleaner surface.
Here is a quick comparison:
Method | Surface Finish | Precision | Best Use Case |
|---|---|---|---|
Angle Milling | Good | High | Complex shapes |
Grinding | Excellent | Very High | Hard materials, fine finish |
Note: Grinding is great when you need a smooth finish or must meet strict size rules.
Pick an alternative based on what your project needs. Ask yourself these questions:
Do you need to cut complex angles or surfaces?
Is surface finish important for your part?
What material are you using?
How much time do you have for setup and machining?
If you want speed and flexibility, CNC multi-axis machining is a good choice. If you need a perfect finish or must cut hard materials, grinding is better. Angle milling is still useful for many jobs, but these other methods help with special challenges.
Tip: Always match your method to your design and material. This helps you get the best results and avoid mistakes.
You can use these alternatives to get more machining options. Each method gives you new ways to make angled features and improve your parts.
You have learned how angle milling helps you make parts with special angles. This process lets you design parts in more ways and gives smoother surfaces. GooDa Machinery has advanced CNC machines that make your work easier and more exact.
Follow best practices to get good results.
Try new techniques for harder projects.
If you want to make your machining better, think about using GooDa for your next job. Visit GooDa Machinery to find out more.
Angle milling is a way to shape metal. You use special cutters to cut at certain angles. This lets you make bevels, chamfers, and angled surfaces. Standard milling cannot do these shapes.
Use angle milling when you need parts with special angles. It helps you make complex shapes. You get more design choices, smoother surfaces, and better accuracy.
Aerospace, automotive, and mold making use angle milling a lot. These industries need parts with exact angles. This helps with safety, performance, and quality.
Look at your design and material first. Pick a cutter with the right angle and size. Use single-angle cutters for chamfers. Use double-angle cutters for vee slots. Specialty tools are good for tricky shapes.
You may see tool wear, vibration, or misalignment. These problems can make rough surfaces or wrong angles. Fix them by checking your setup, using sharp tools, and holding your workpiece tight.
Yes, you can use CNC machines for angle milling. CNC machines make the process faster and more exact. You can program the machine to cut at the right angle. You can repeat the process for many parts.
Feature | Angle Milling | Grinding |
|---|---|---|
Speed | Fast | Slower |
Surface Finish | Good | Excellent |
Best For | Complex shapes | Fine finishes |
Tip: Use grinding if you want a very smooth surface. Use angle milling if you need to shape parts quickly.
