Overview

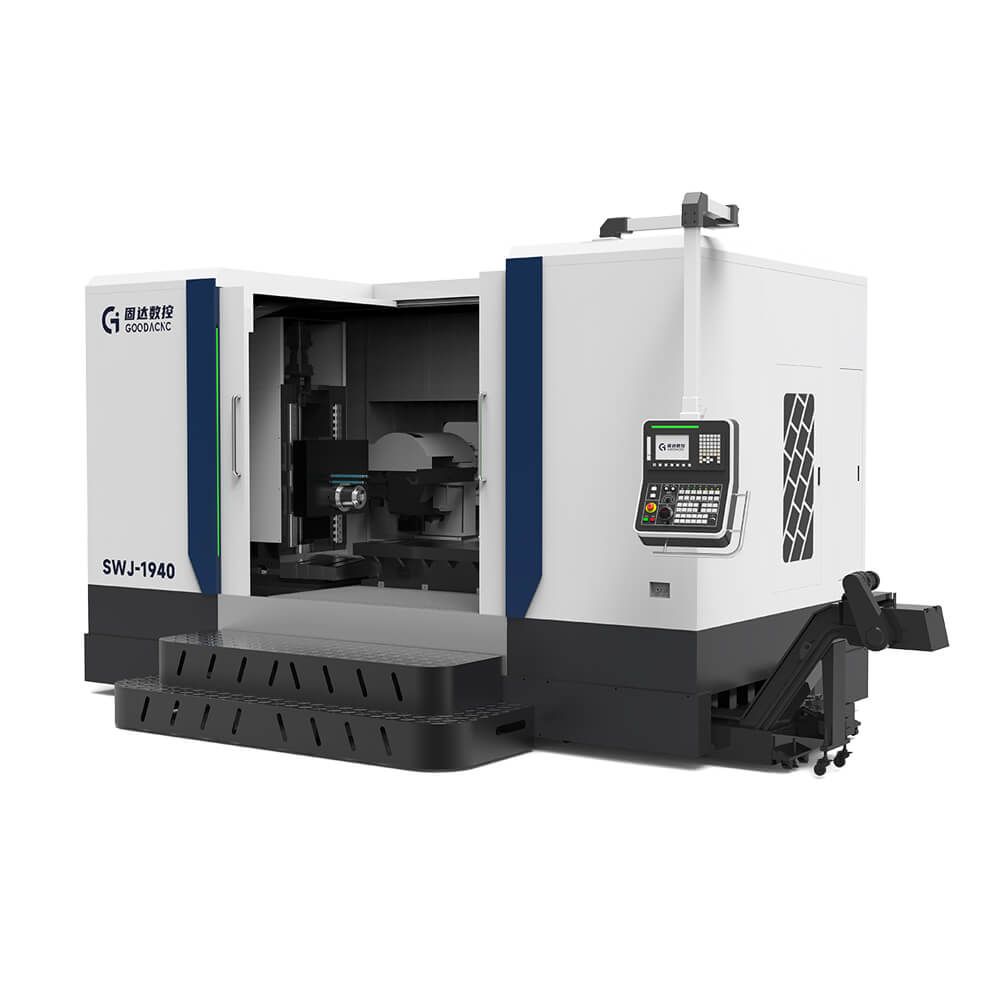

The twin spindle horizontal machining center adopts the heavy-cutting design concept to strengthen the cutting rigidity of the machine tool and improve the processing efficiency of the machine tool.

It is particularly suitable for the efficient processing of box-type parts with four-sided processing requirements.

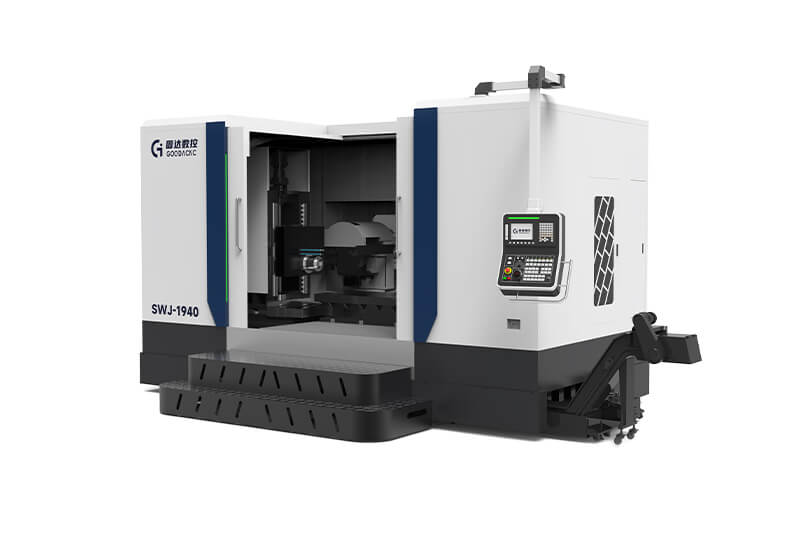

Features-1

Making a Great Machine Tool Even Better

Dual-channel configuration with interconnected yet independent left/right stations, enabling synchronized or separate machining of different features;
Heavy-cutting spindle, high-power spindle motor, strengthen the spindle deep cavity cutting rigidity;
The CNC rotary table enables continuous or hirth coupling indexing with high precision and high load capacity.

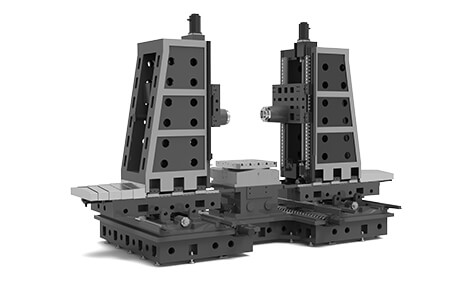

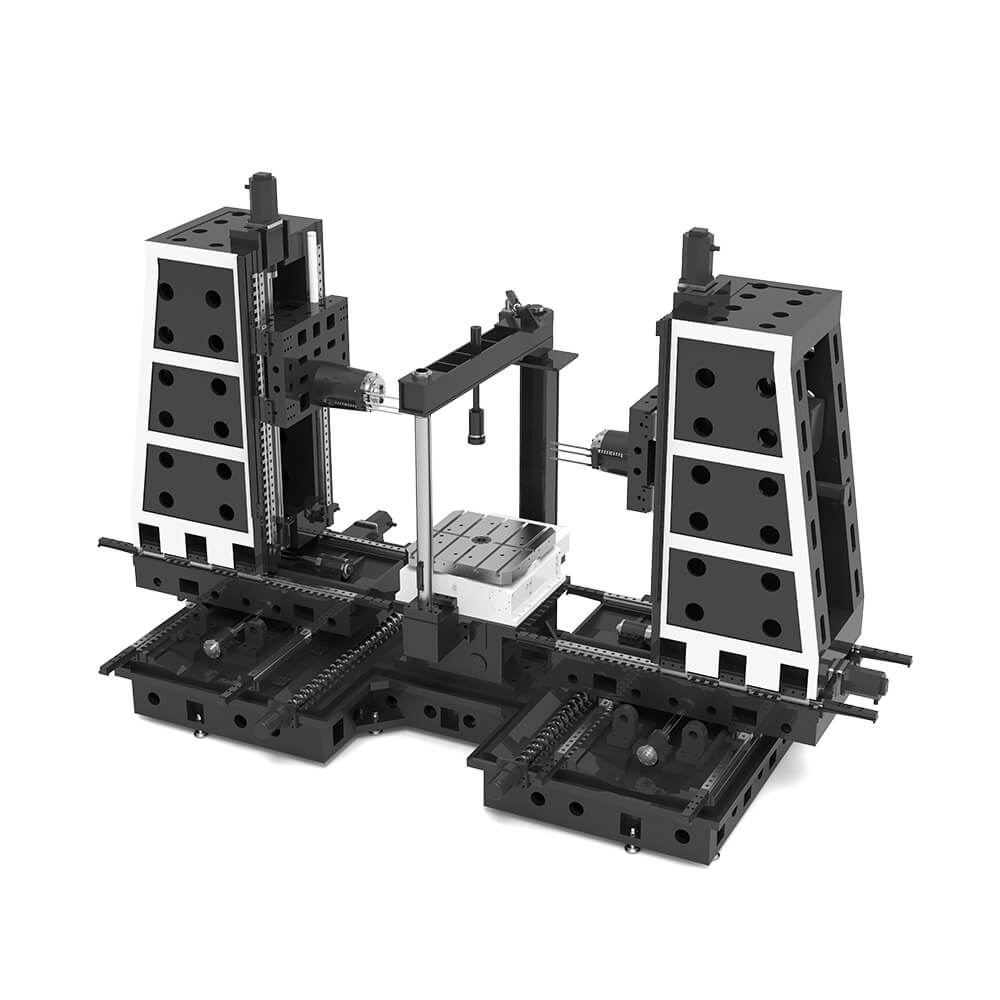

Detailed Display-1

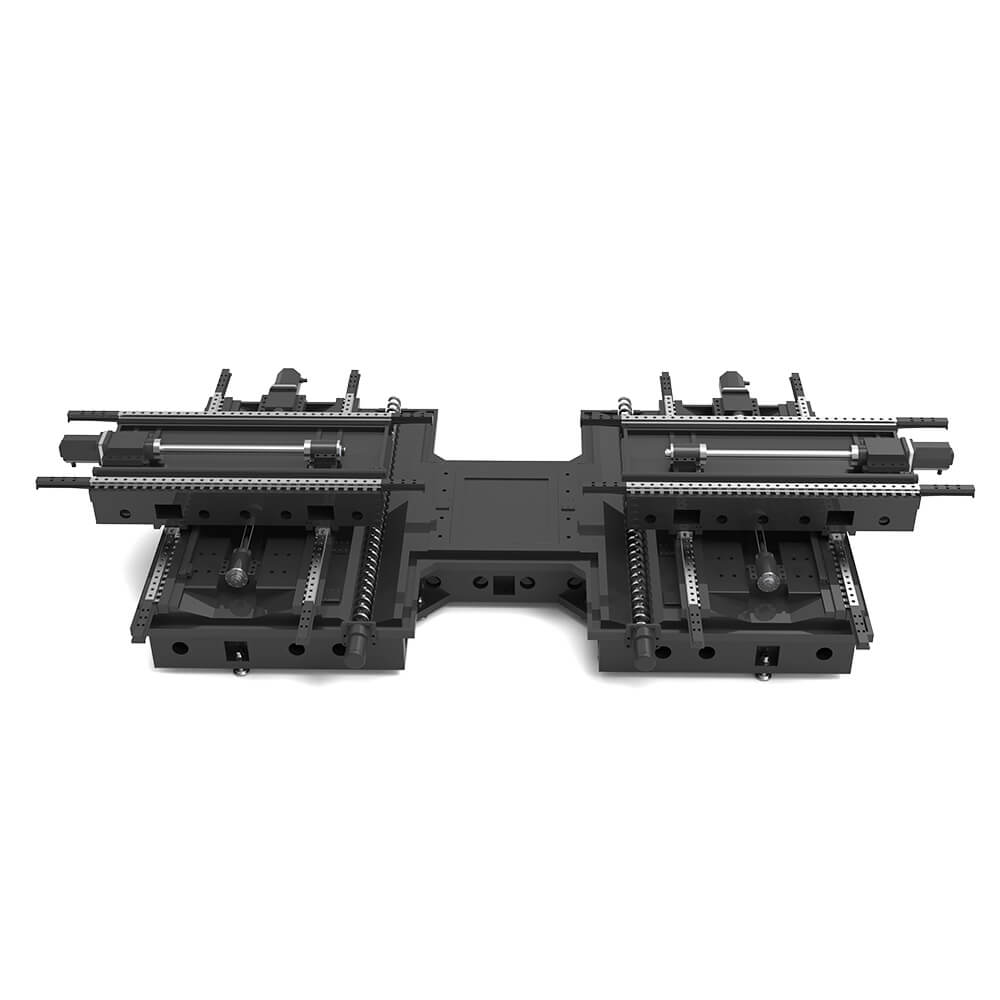

SWJ-1940-2

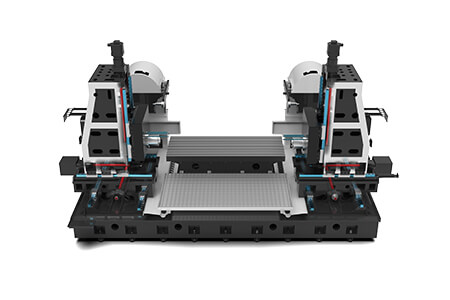

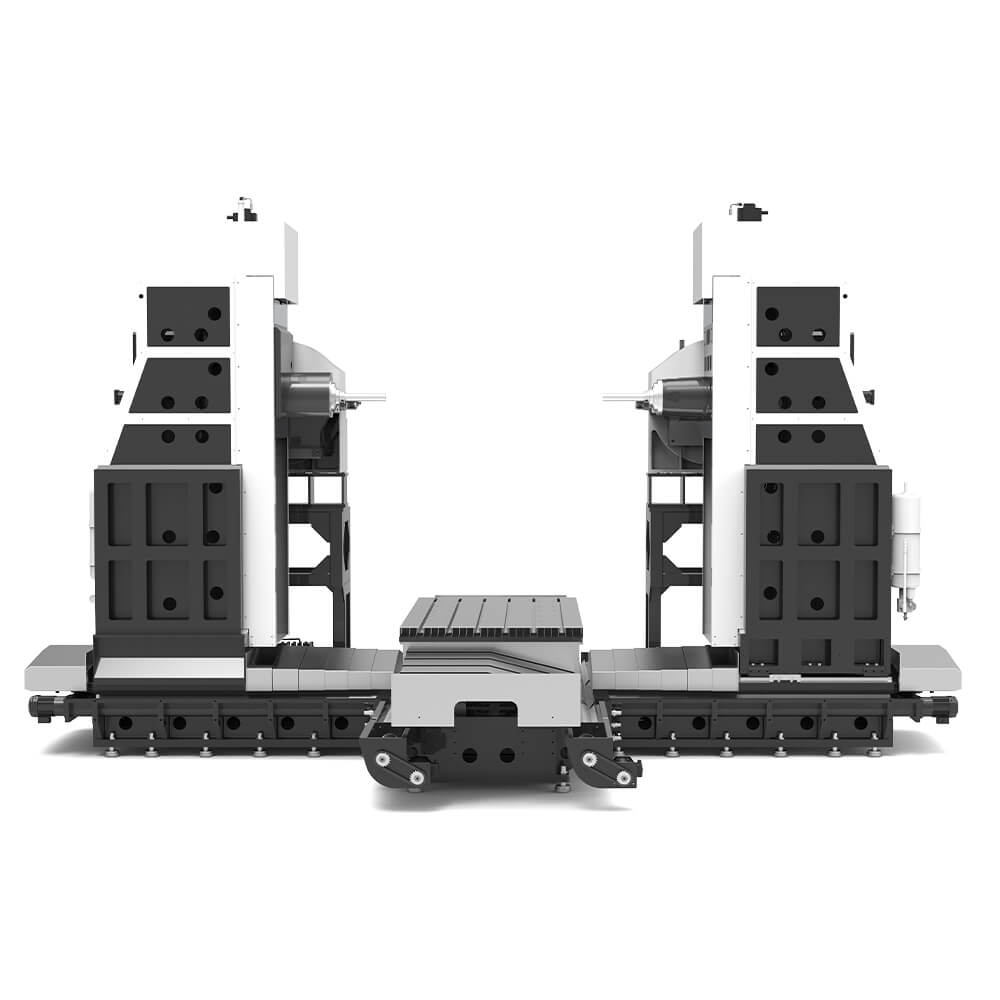

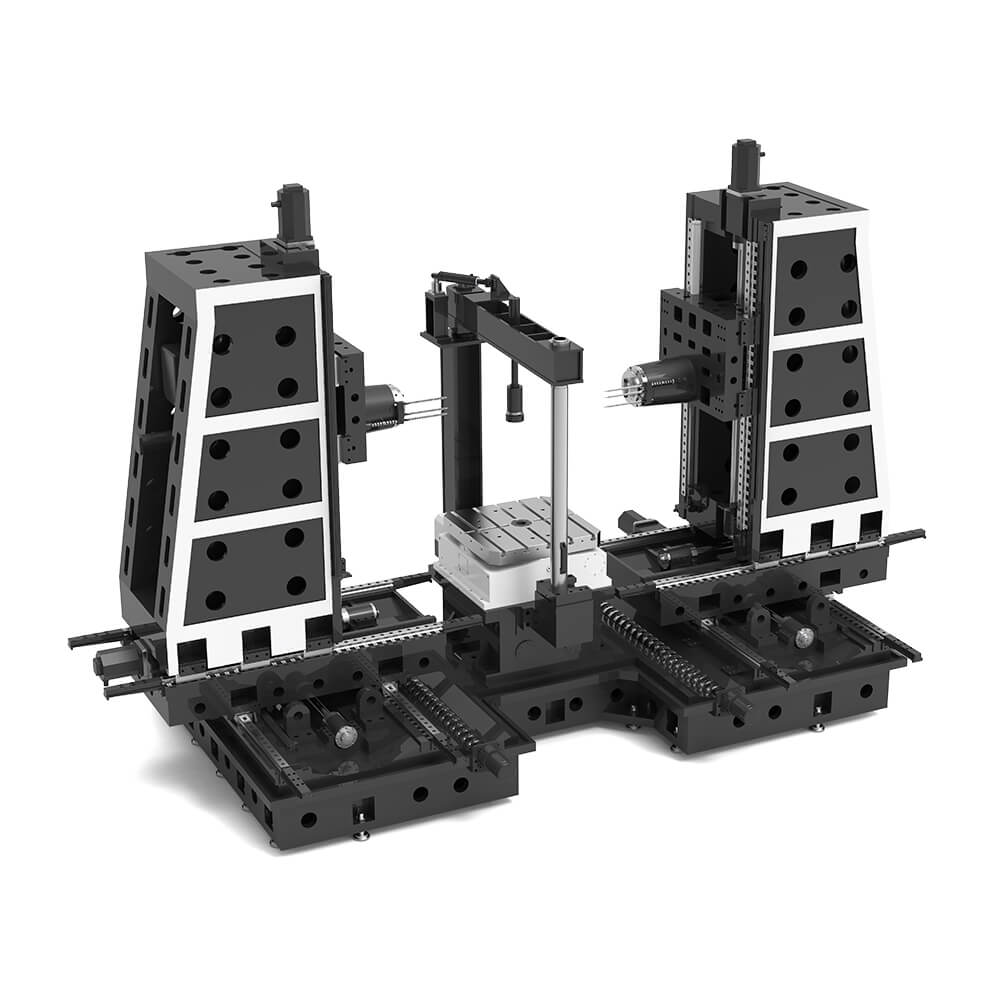

Detailed Display-2

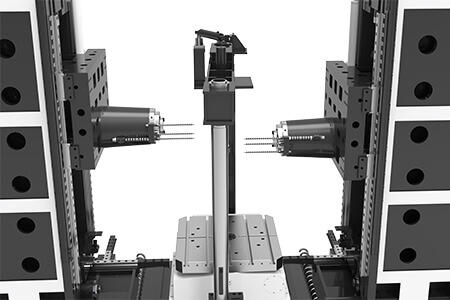

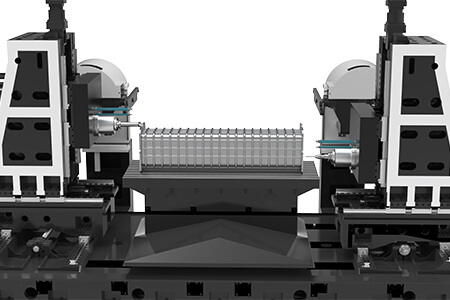

SWJ-1940-3

	Items	Unit	SWJ-1940	SWJ-1070	SWJ-1390
Worktable	Worktable size	mm	1900×800	630×630(OP800×800)	800×800(OP 1000×1000)
	Max.load capacity	kg	8000	1250(3000)	5000
	Index table accuracy	°	-	0.001°(OP hirth coupling)	0.001°(OP hirth coupling)
Travel	X1/X2-The slide of the column left and right travel	mm	800/800	1000/1000	1300/1300
	Y1/Y2-Spindle box up and down travel	mm	400/400	700/700	900/900
	Z1/Z2-Column front and back travel	mm	400/400	600/600	800/800
Spindle	Spindle taper		BT50/Φ190	BT50/Φ190	BT50/220
	Max.spindle speed	rpm	3000	6000	6000
	Spindle motor power	kw	15/18.5	15/18.5	22/26
Feed	X/Y/Z axis rapid move speed	m/min	10/10/10	10/10/10	10/10/10
Accuracy	Positioning accuracy	mm	0.02/1000	0.02/1000	0.02/1000
Tool magazine	Tool capacity	T	24T robotic arm	24T robotic arm	24T robotic arm
Others	Total power required	KVA	60	60	60
	Machine size	m	5.7×3.7×3.4	7.5×4.5×3.9	9.5×4.3×4.1
	Machine weight (approx.)	kg	20000	22000	32000

*Note: Parameter above is for reference only, please contact us for more detailed data or inquire customized solutions.
