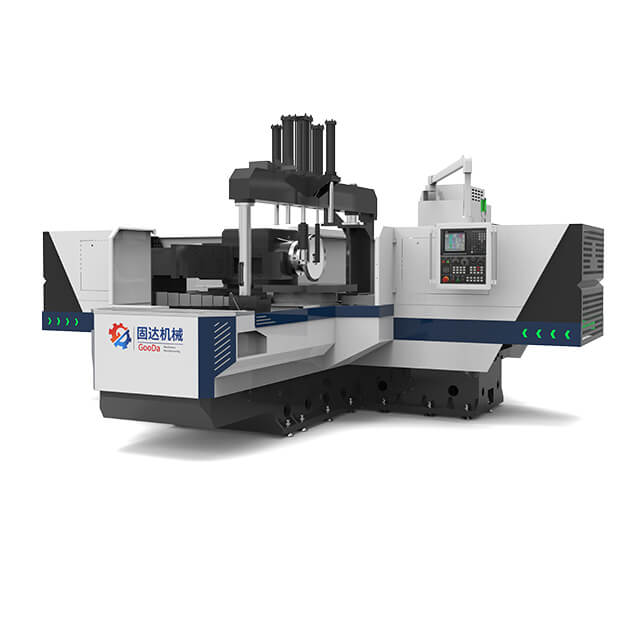

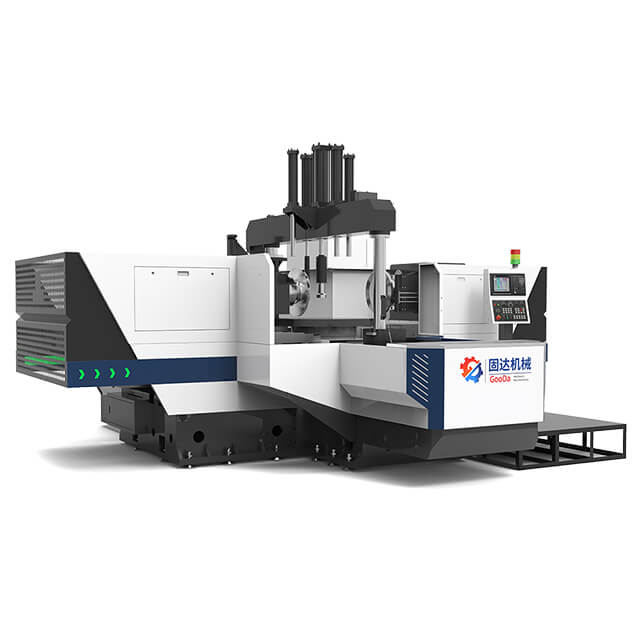

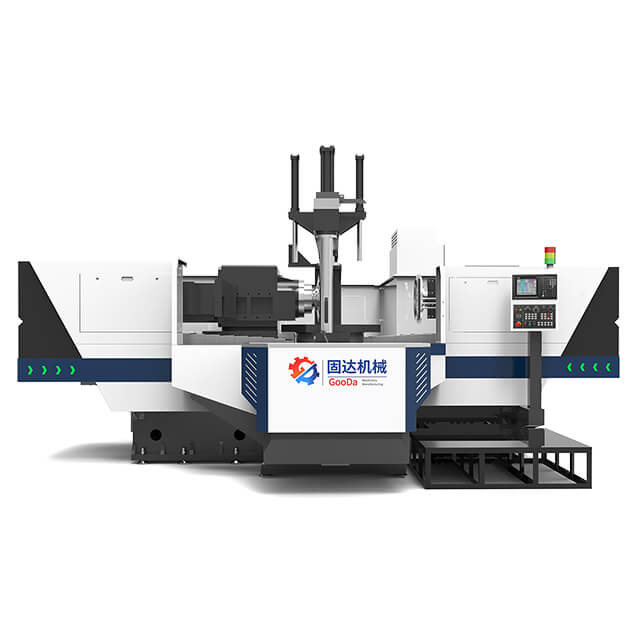

Duplex Milling Machine TH-1300

Name: Duplex Milling Machine TH-1300
Brand: GOODA
SKU: 594271396
Rating: 5.0 (93 reviews)

High Efficiency High Rigidity Twin Head Milling Machine

Model:
TH-1300NC
Brand:
GOODA

Machine Model:	Please select TH-1300NC TH-1300NCA TH-1500NC TH-1500NCA TH-1600NCA TH-1800NCA
Availability:

Quantity:



Inquire

Key Features

GooDa CNC Duplex Milling Machine Series features a rigid HT300 cast iron base for superior stability. Simply input the workpiece processing data, and it will perform four-sided milling and four-edge chamfering in a single setup.

It simplifies operation, reduces labor, and enhances productivity while ensuring high precision in dimension, squareness, and parallelism.

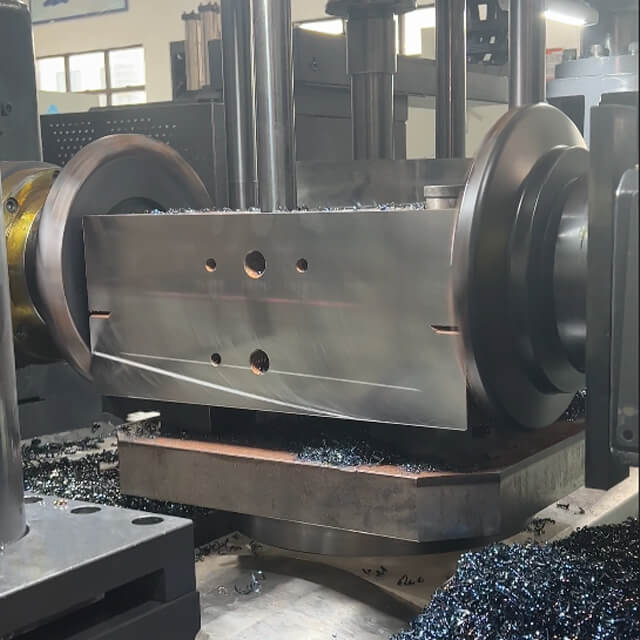

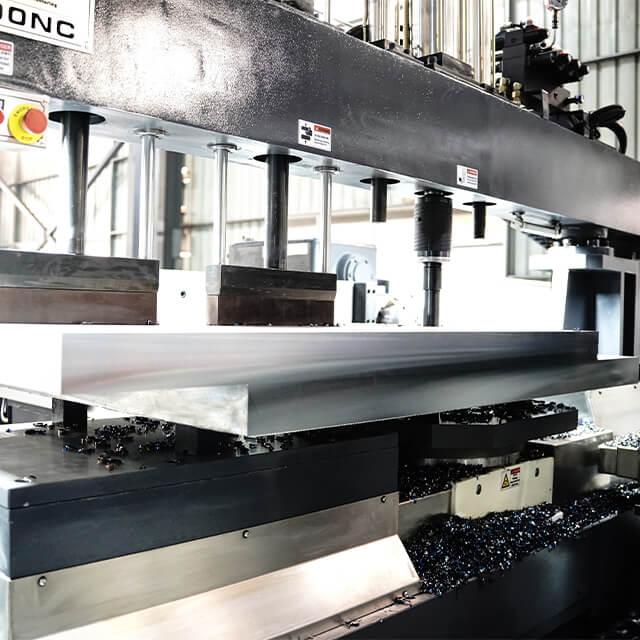

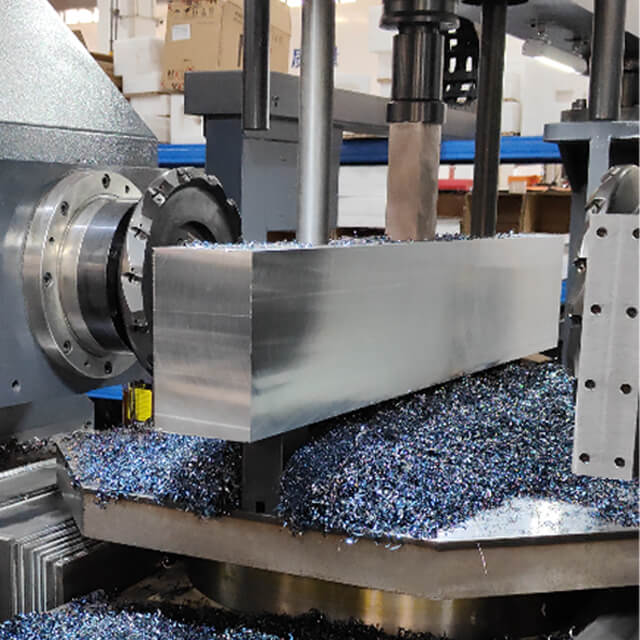

4 sides milling by 1 setup, 5 times faster than traditional milling machine
Squareness ≤0.02 over full travels, Ra≤0.8
Finish milling/heavy-cutting dual cutters
CNC system: Fanuc / Mitsubishi / Others

Model	TH-1300NC	TH-1300NCA		TH-1500NC	TH-1500NCA			TH-1600NCA	TH-1800NCA
Number of control axes	5			5				5	5
Max.cutting capacity	2*2mm	2*3mm		2*2mm	2*3mm			2*3mm	2*3mm
Processing capacity	150-1300mm(opt. 80)			200-1500mm(opt. 100)				200-1600mm(opt. 100)	250-1800mm(opt. 150)
Worktable size	900*900mm			900*900mm				1100*1100mm
Max.load capacity	3500Kg			4500Kg				8000Kg	9000Kg
Spindle motor power	2*22Kw	2*22KW	2*30KW	2*22kW	2*22kW	2*30kW	2*37kW	2*30kW	2*37kW
Spindle speed	50-500rpm			50-500rpm				50-500rpm
Cutter diameter	φ300/φ350mm	φ300mm	φ350mm	φ300/350mm	φ300mm	φ350mm	φ400/φ450mm	φ350mm	φ400/φ450mm
X/Y/Z axis rapid feed	600060006000mm/min			800080006000mm/min				600060006000mm/min
Machine size	568047602700mm			610049552741mm				604067103250mm	840072003250mm
Machine weight	About 17500Kg			About 18500Kg				About 20000Kg	About 22000Kg
