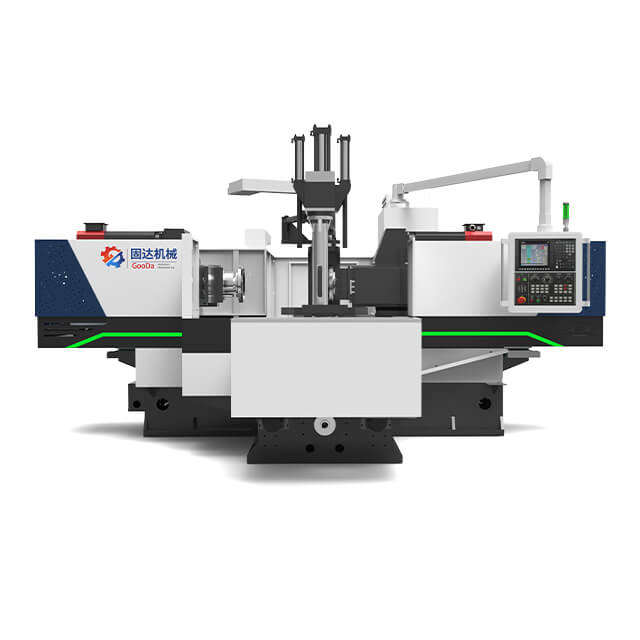

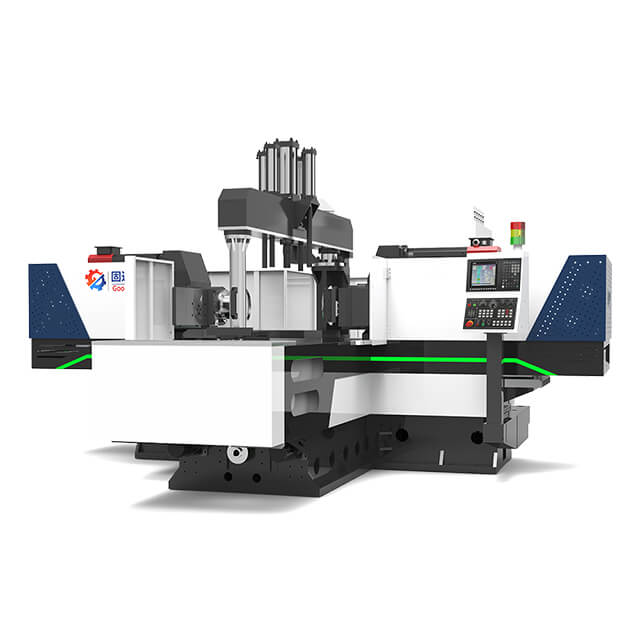

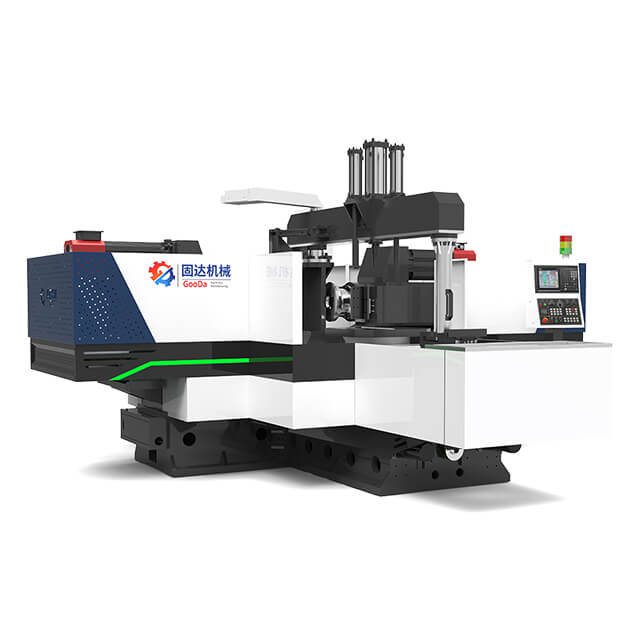

Duplex Milling Machine TH-850

Name: Duplex Milling Machine TH-850
Brand: GOODA
SKU: 579471396
Rating: 5.0 (9 reviews)

High Efficiency High Rigidity Dual Spindle Milling Machine

Model:
TH-850NC
Brand:
GOODA

Machine Model:	Please select TH-850NC TH-1000NC TH-1000NCA
Availability:

Quantity:



Inquire

Key Features

GooDa CNC Duplex Milling Machine Series features a rigid HT300 cast iron base for superior stability. Simply input the workpiece processing data, and it will perform four-sided milling and four-edge chamfering in a single setup.

It simplifies operation, reduces labor, and enhances productivity while ensuring high precision in dimension, squareness, and parallelism.

4 sides milling by 1 setup, 5 times faster than traditional milling machine
Squareness ≤0.02 over full travels, Ra≤0.8
Finish milling/heavy-cutting dual cutters
CNC system: Fanuc / Mitsubishi / Others

Model	TH-850NC	TH-1000NC	TH-1000NCA
Number of control axes	4
Max.cutting capacity	2*2mm	2*2mm	2*3mm
Processing capacity	60-850mm	100-1000mm(opt. 60)
Worktable size	600*600mm	650*650mm
Max.load capacity	2000Kg	2800Kg
Spindle motor power	2*15/18.5kW	2*18.5kW	2*22kW	2*30kW
Spindle speed	50-500rpm	50-500rpm
Cutter diameter	φ250/φ300mm	φ250/φ300mm	φ300mm	φ350mm
X/Y/Z axis rapid feed	800080008000mm/min	800080006000mm/min	800080007000mm/min
Machine size	461042502500mm	530045002500mm
Machine weight	About 12500Kg	About 13500Kg	About 14500Kg
