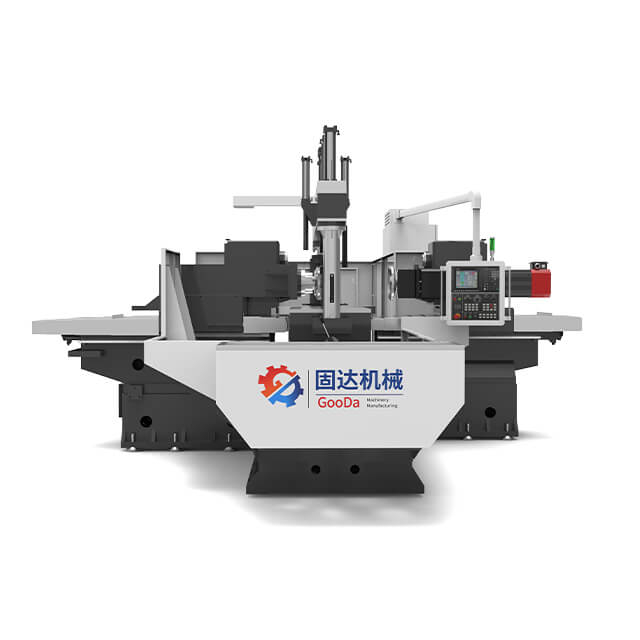

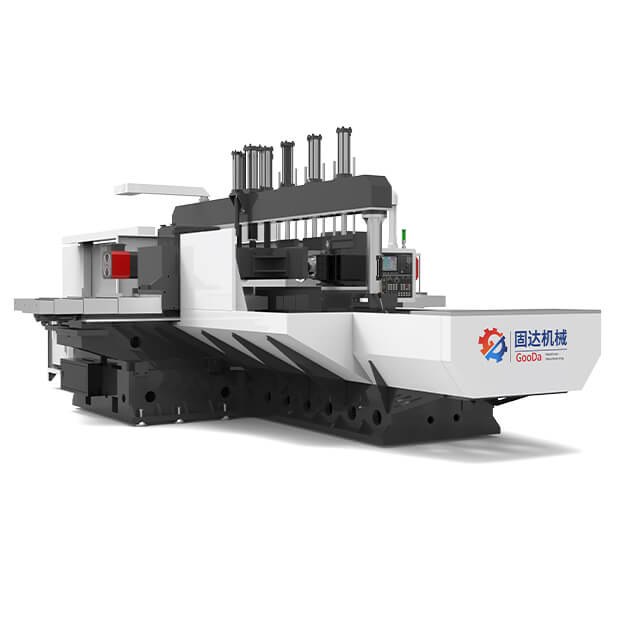

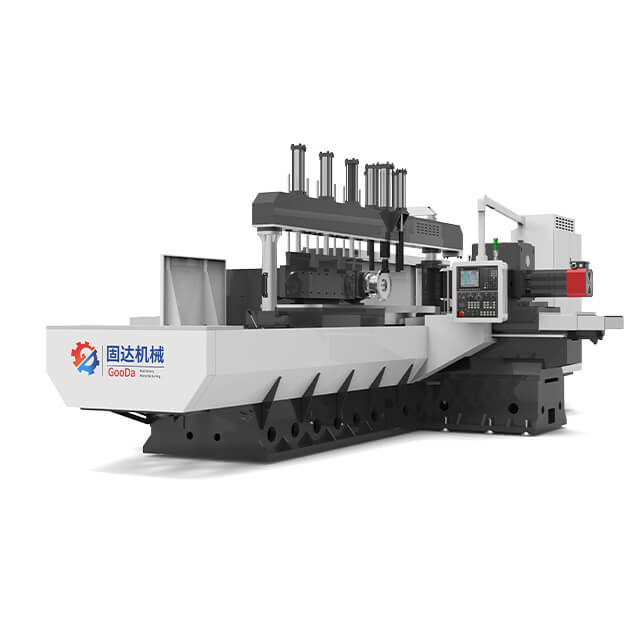

Duplex Milling Machine TH-1370

Name: Duplex Milling Machine TH-1370
Brand: GOODA
SKU: 597861396
Rating: 5.0 (22 reviews)

High Efficiency High Rigidity Double Sided Horizontal Milling Machine

Model:
TH-1370NC
Brand:
GOODA

Machine Model:	Please select TH-1370NC TH-1370NCA TH-1570NC TH-1585NC TH-1885NC TH-1325NCA
Availability:

Quantity:



Inquire

Key Features

GooDa CNC Duplex Milling Machine Series features a rigid HT300 cast iron base for superior stability. Simply input the workpiece processing data, and it will perform four-sided milling and four-edge chamfering in a single setup.

It simplifies operation, reduces labor, and enhances productivity while ensuring high precision in dimension, squareness, and parallelism.

4 sides milling by 1 setup, 5 times faster than traditional milling machine
Squareness ≤0.02 over full travels, Ra≤0.8
Finish milling/heavy-cutting dual cutters
CNC system: Fanuc / Mitsubishi / Others

Model		TH-1370NC	TH-1370NCA	TH-1570NC	TH-1585NC	TH-1885NC	TH-1325NCA
Procesing capacity	Four-side mode	30-700mm	60-700mm	30-700m	60-850mm	60-850mm	150-1300mm(opt. 80)
Procesing capacity	Two-side mode	W30-700mm L30-1300mm	W60-700mm L60-1300mm	W30-700mm L30-1500mm	W60-850mm L60-1500mm	W60-850mm L60-1800mm	W80-1300mm L80-2500mm
Worktable size		520*520mm	520*520mm	520*520mm	600*600mm	600*600mm	900*900mm
Max.load capacity		1200Kg	1200Kg	1200Kg	3000Kg	3500Kg	4500Kg
Spindle motor power		2*15kW	2*22kW	2*15KW	2*15kW	2*15kW	2*22kW
Spindle speed		50-500rpm
Cutter diameter		φ250mm
X/Y/Z axis rapid feed		800080006000mm/min
Machine size		560042002700mm	600042002700mm	588038402700mm	670043002700mm	770043002700mm	855048002800mm
Machine weight		About 12500Kg	About 15500Kg	About 15000Kg	About 16500Kg	About 20500Kg	About 21500Kg
