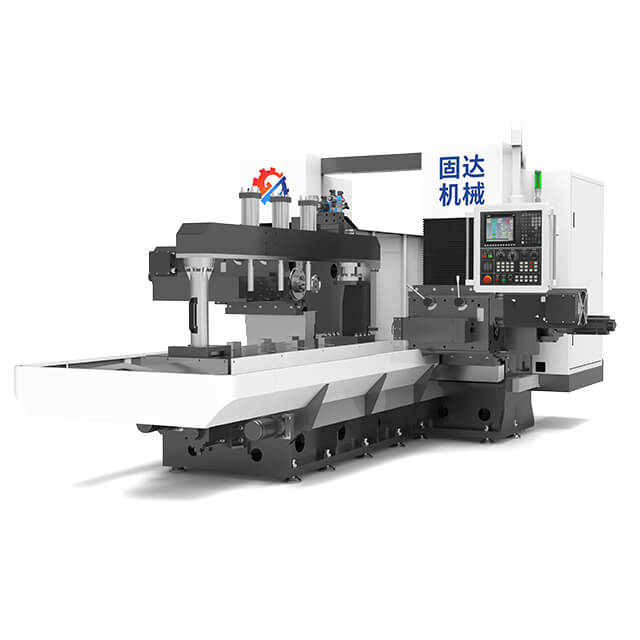

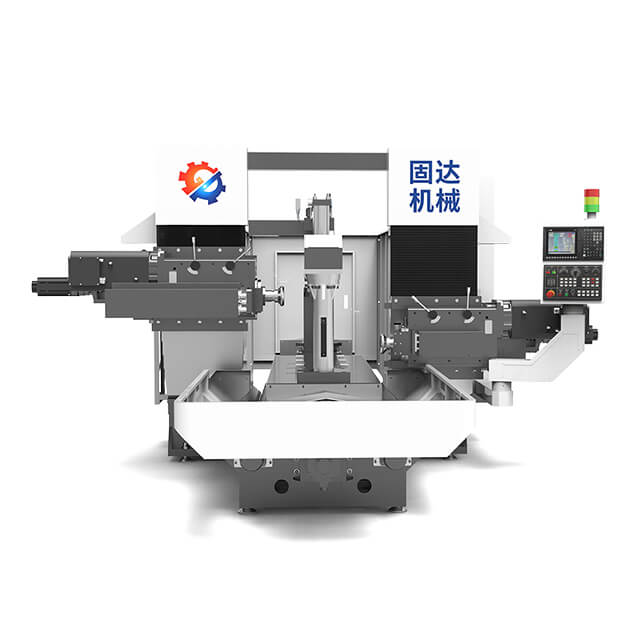

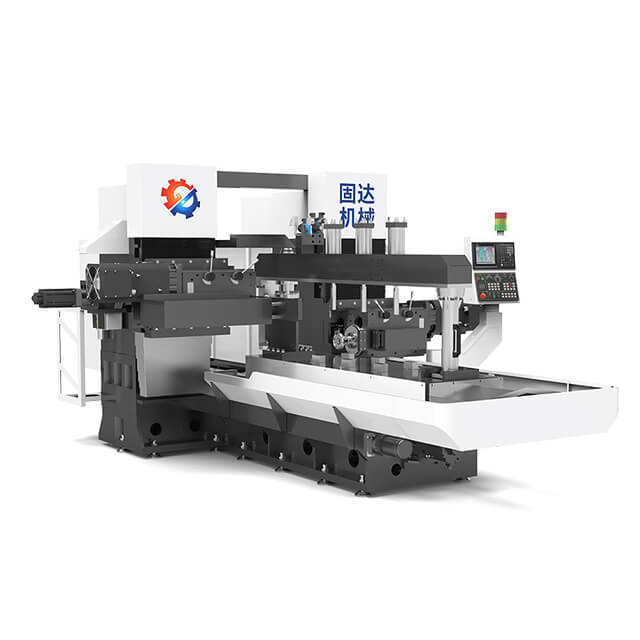

Duplex Milling Machine TH-7015

Name: Duplex Milling Machine TH-7015
Brand: GOODA
SKU: 560061396
Rating: 5.0 (50 reviews)

High Efficiency High Rigidity CNC Duplex Milling Machine

Model:
TH-7015NCH
Brand:
GOODA

Machine Model:	Please select TH-7015NCH TH-700NCH
Availability:

Quantity:



Inquire

Key Features

GooDa CNC Duplex Milling Machine Series features a rigid HT300 cast iron base for superior stability. Simply input the workpiece processing data, and it will perform four-sided milling and four-edge chamfering in a single setup.

It simplifies operation, reduces labor, and enhances productivity while ensuring high precision in dimension, squareness, and parallelism.

4 sides milling by 1 setup, 5 times faster than traditional milling machine
Squareness ≤0.02 over full travels, Ra≤0.8
Finish milling/heavy-cutting dual cutters
CNC system: Fanuc / Mitsubishi / Others

Model	TH-700NCH	TH-7015NCH
Max.machining height	600mm	600mm
Max.cuting capacity	150-700mm	Four-side mode: 150-700mm
Max.cuting capacity	150-700mm	Two-side mode: 150-1500mm
Worktable size	600*600mm
Max.load capacity	1200Kg
Spindle motor power	2*11kW	2*15kW
Spindle speed	50-500rpm
Cutter diameter	φ250mm
X/Y/Z axis rapid feed	800080008000mm/min	800080008000mm/min
Machine size	534039202500mm	634039203100mm
Machine weight	About 15000Kg	About 16500Kg
