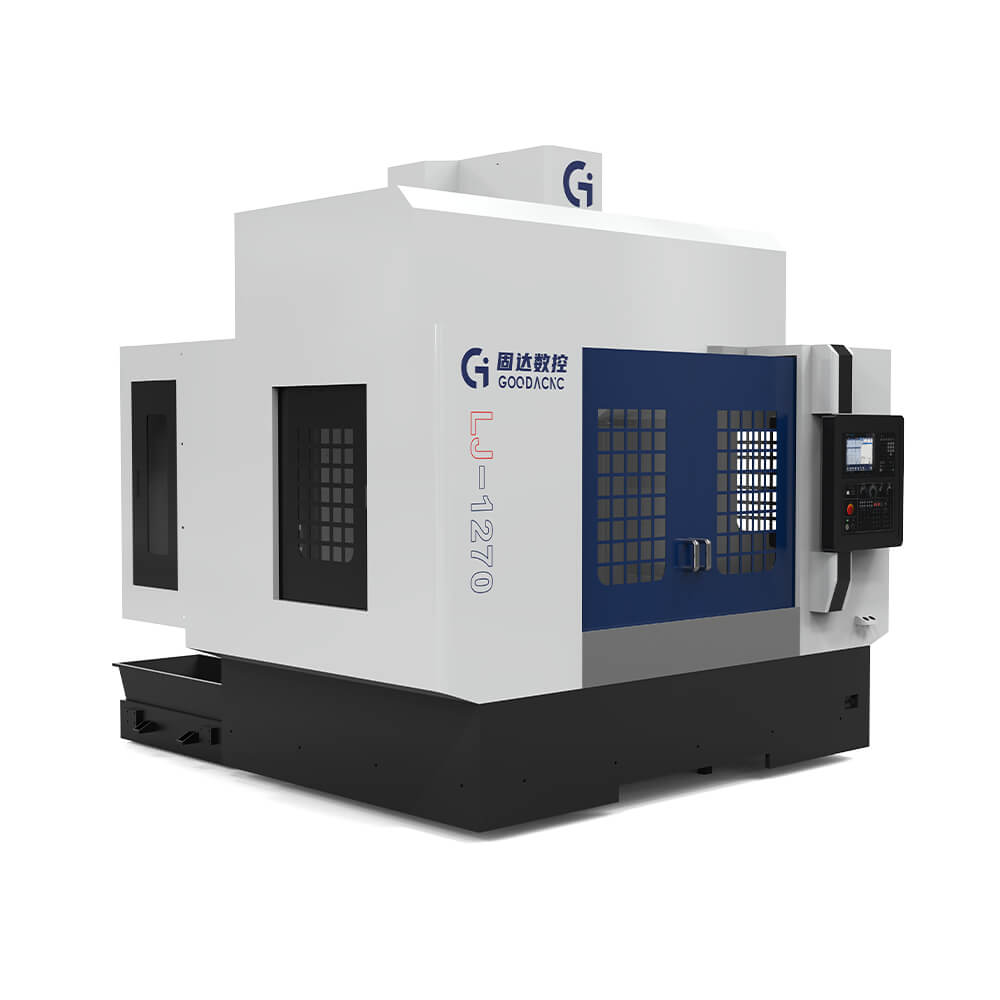

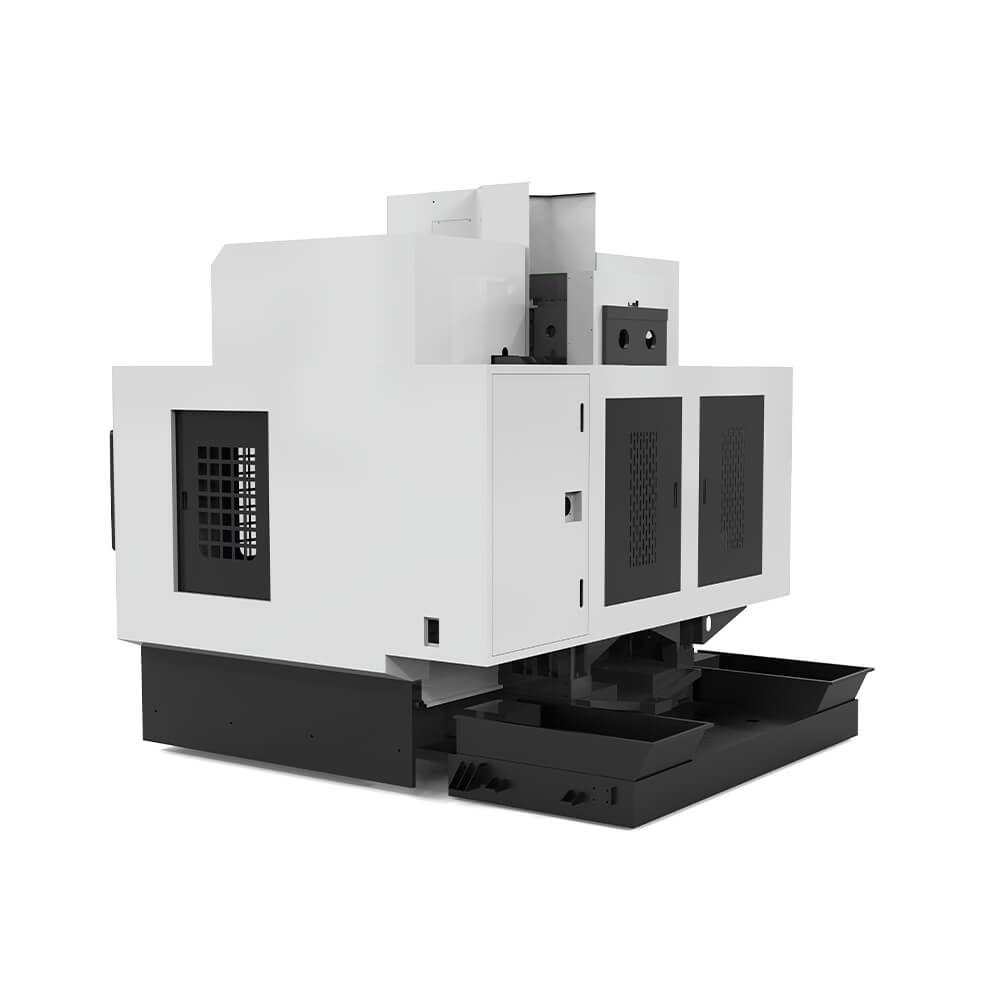

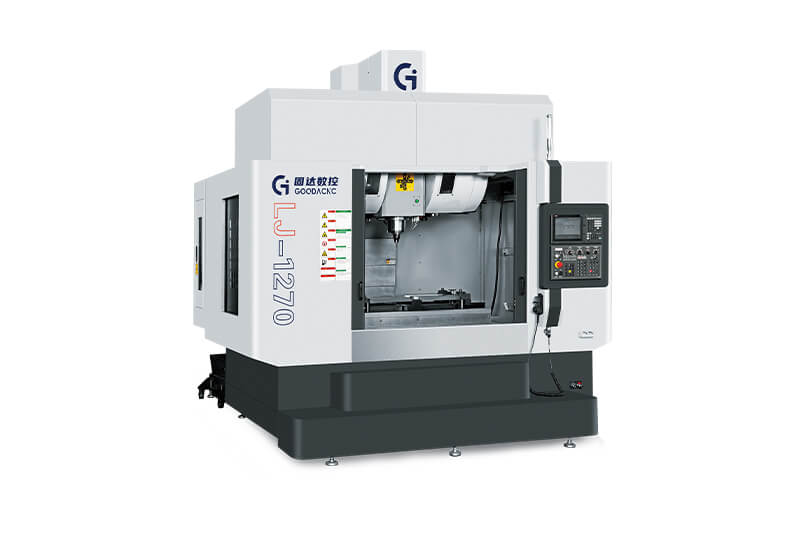

Name: Vertical Machining Center LJ-1270B-2T
Brand: GOODA
Rating: 5.0 (21 reviews)

Function Introduction of the LJ-1270B-2T

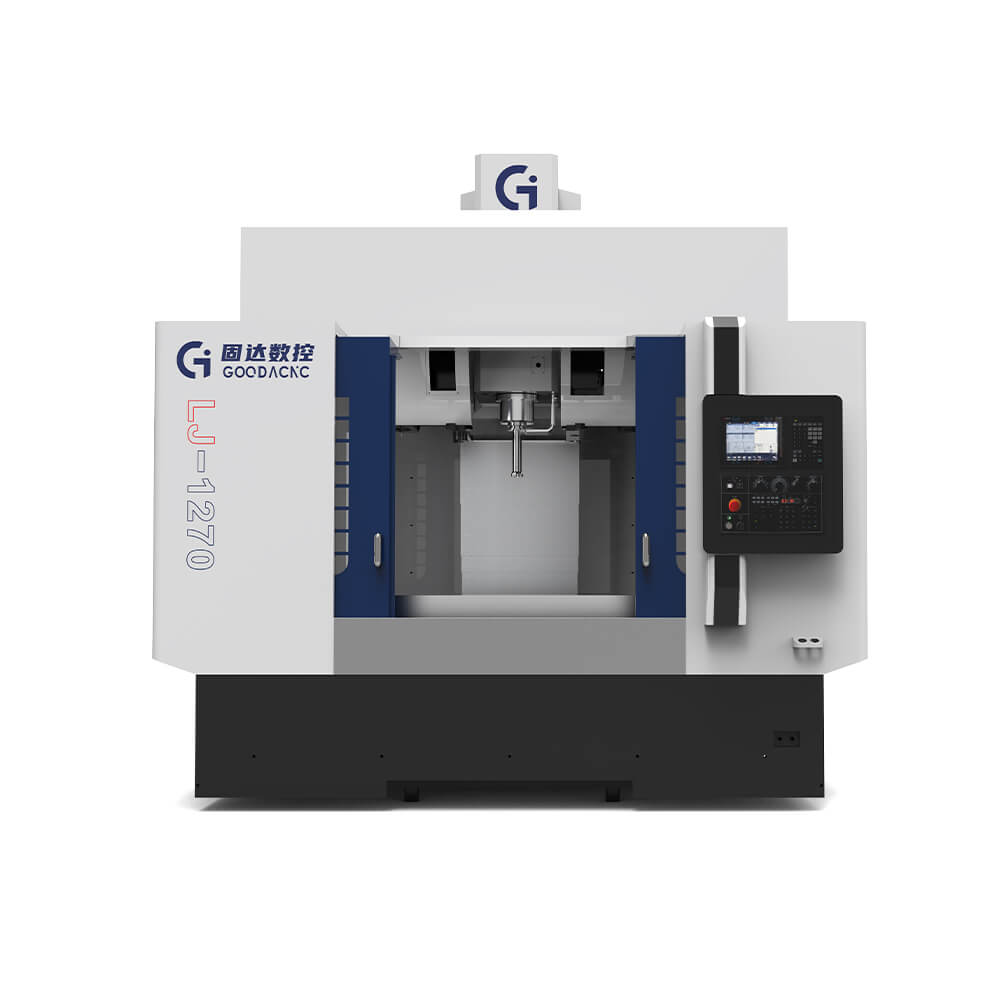

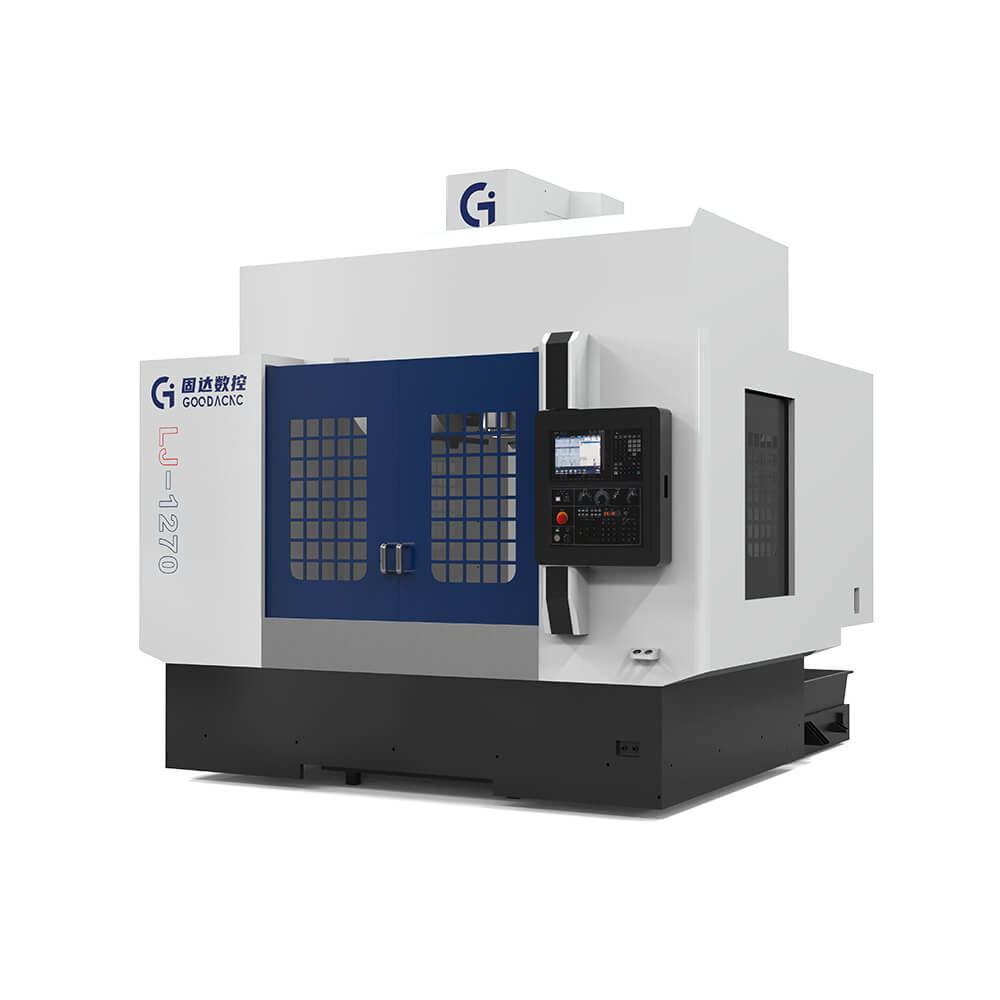

Vertical Machining Center LJ-1270B-2T

GooDa LJ-1270B-2T Dual Tool Magazine Vertical Machining Center

The combination of two linear and one boxway guide (or three linear guides) design fully demonstrates the configuration advantages of the vertical machining center;

The dual-tool magazine operation mode not only ensures high-efficiency processing of standard panel components but also excels in handling particularly complex workpieces.

Key Features

Multi-station small batch processing
Dual tool magazines - 64 tools capacity
THK linear guideways and ball screws
High efficiency and fast operation
Dual-tool magazines with dual workstations
Programming-free tandem operation

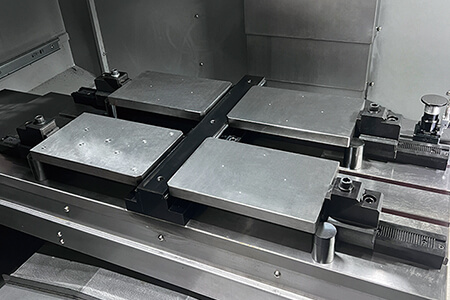

Vertical Machining Center LJ-1270B-2T-1

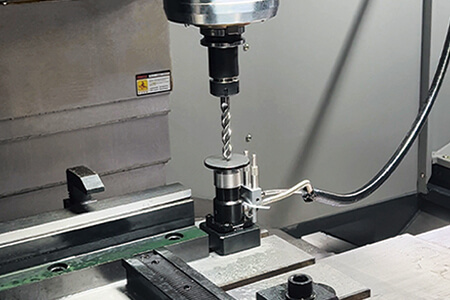

Vertical Machining Center LJ-1270B-2T-3

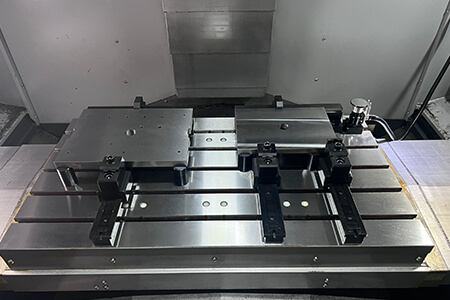

Vertical Machining Center LJ-1270B-2T-5

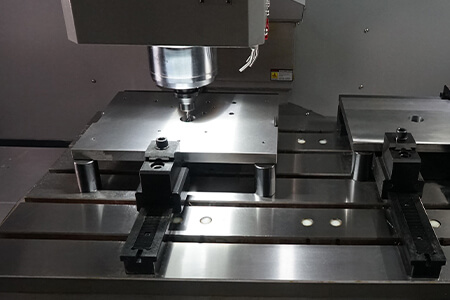

Vertical Machining Center LJ-1270B-2T-2

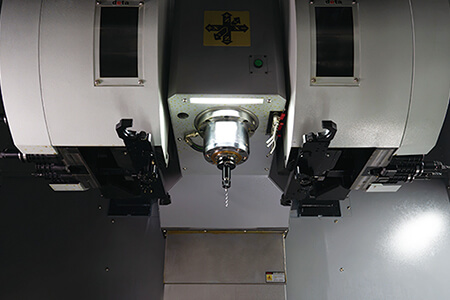

Vertical Machining Center LJ-1270B-2T-4

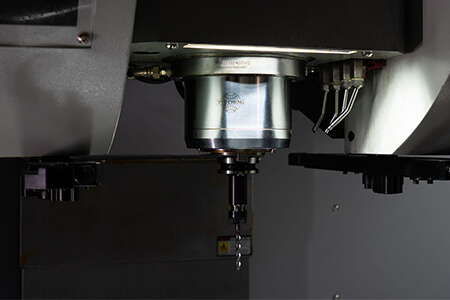

Vertical Machining Center LJ-1270B-2T-6

	Items	unit	LJ-1270B-2T	LJ-1580B-2T
Worktable	Worktable size	mm	1300x700	1700×810
	Max.load capacity	kg	800	1600
	T-slot size specs	mm	5-18x100	7-22x110
Travel	X/Y/Z Axis travel	mm	1200/700/680	1500/800/700
Travel	Distance from spindle nose to worktable	mm	120~820	160~860
Spindle	Spindle motor power		BT40	BT50
	Spindle driven mode	kw	7.5/11	15/18.5
	Spindle drive model		Timing belt(option gear box)	Timing belt
	Max.spindle speed	rpm	8000(OP direct connect:12000)	6000
Feed	X/Y/Z axis rapid move speed	m/min	24/24/16	20/20/12
Feed	X/Y/Z axis cutting speed	m/min	1~12	1~10
Tool magazine	Tool capacity	T	2x32T robotic arm	2x32T robotic arm
Tool magazine	Max.Tool weight	kg	8	15
Accuracy	Positioning accuracy	mm	±0.005/300	±0.005/300
	Repositioning accuracy	mm	±0.003/300	±0.003/300
	Repositioning accuracy	mm	±0.003/300	±0.003/300
Others	Total power required	KVA	25	25
	Machine size	m	3.1x3.0x3.0	3.8x3.5x3.3
	Machine weight(approx.)	kg	7000	12500

*Note: Parameter above is for reference only, please contact us for more detailed data or inquire customized solutions.
