LJ-855
GOODA
Availability: | |
---|---|
Quantity: | |

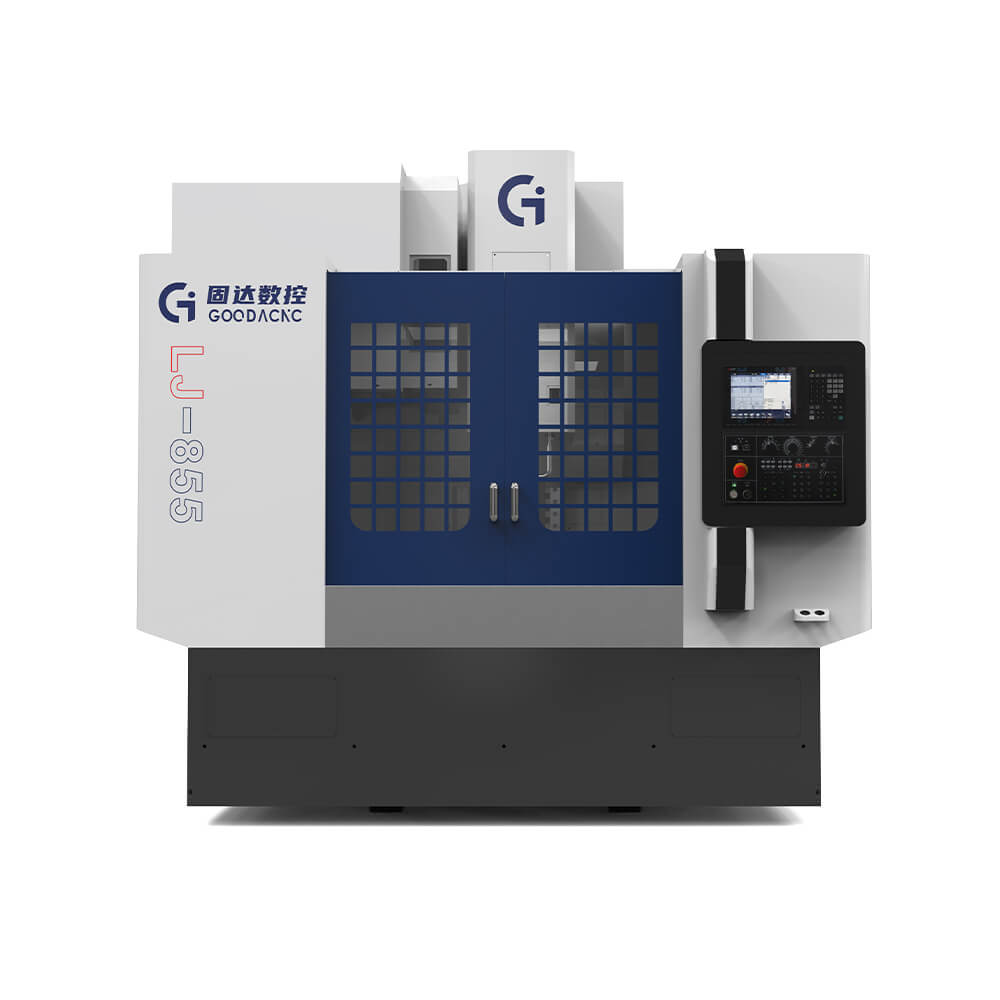

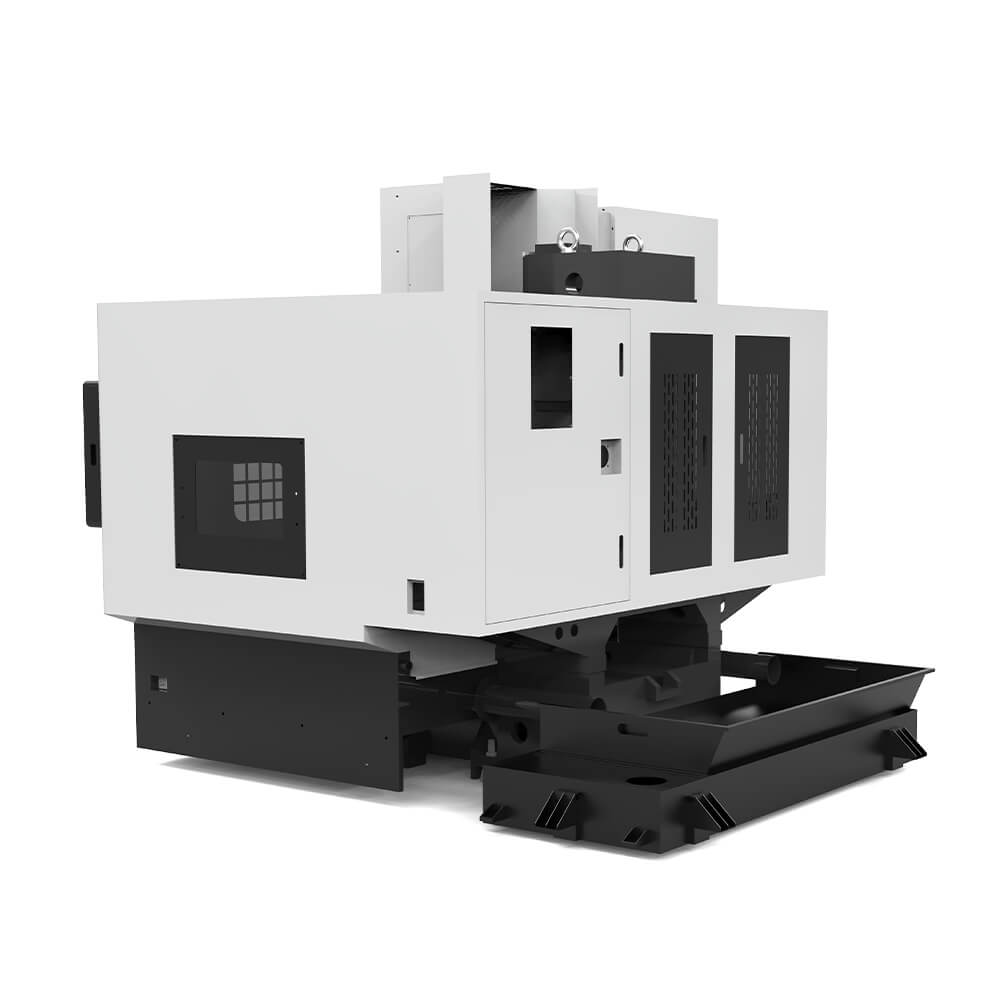

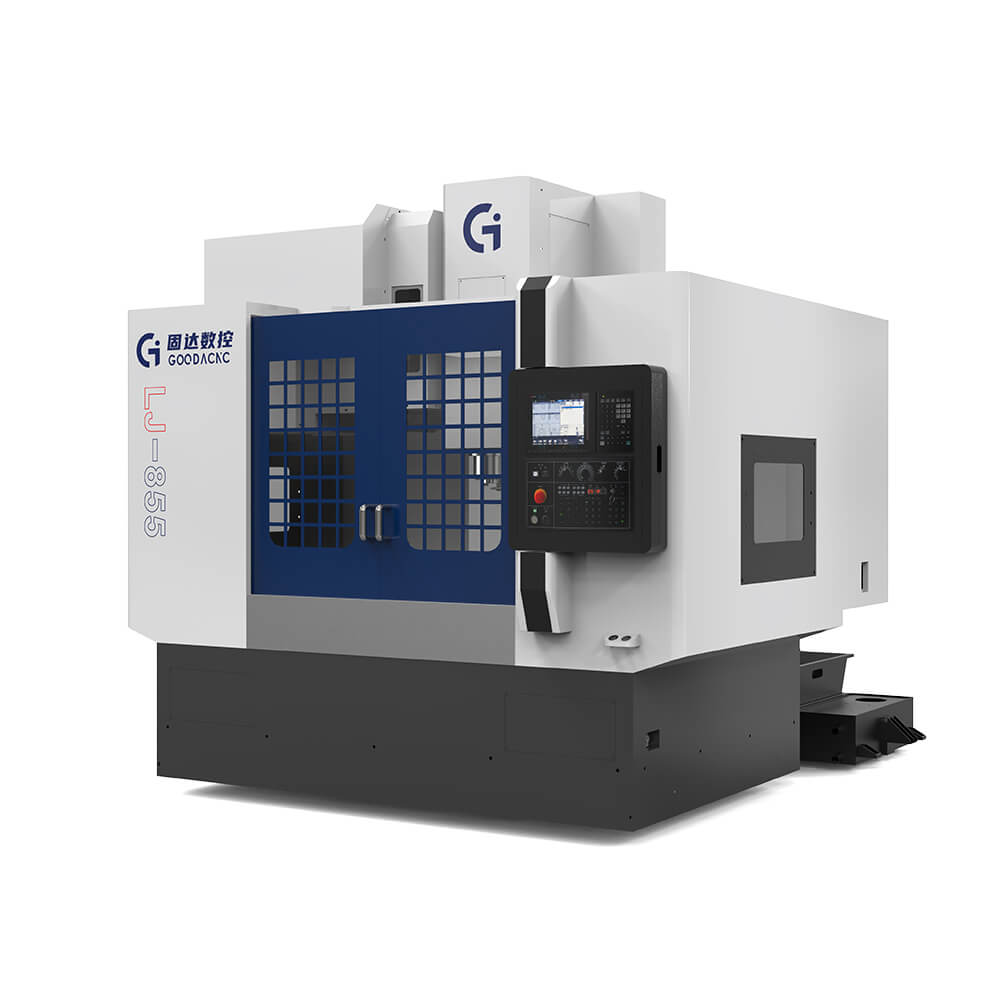

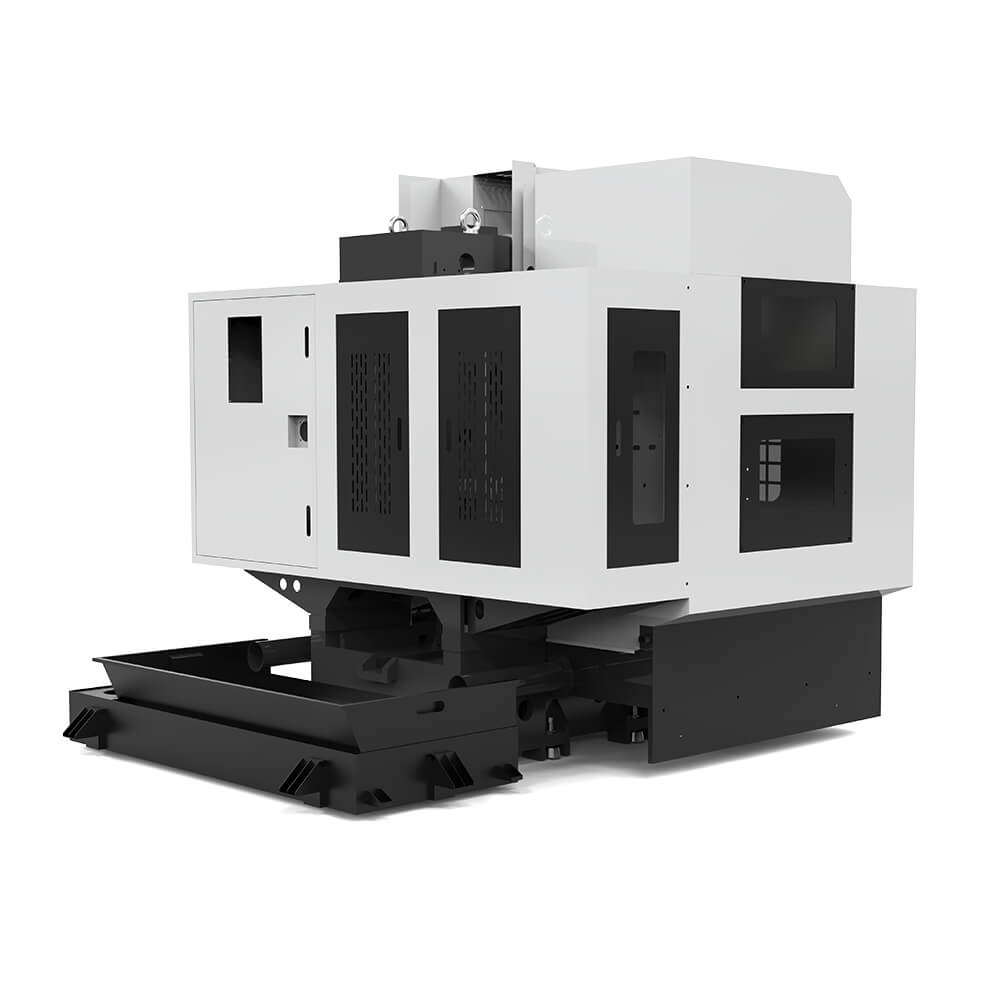

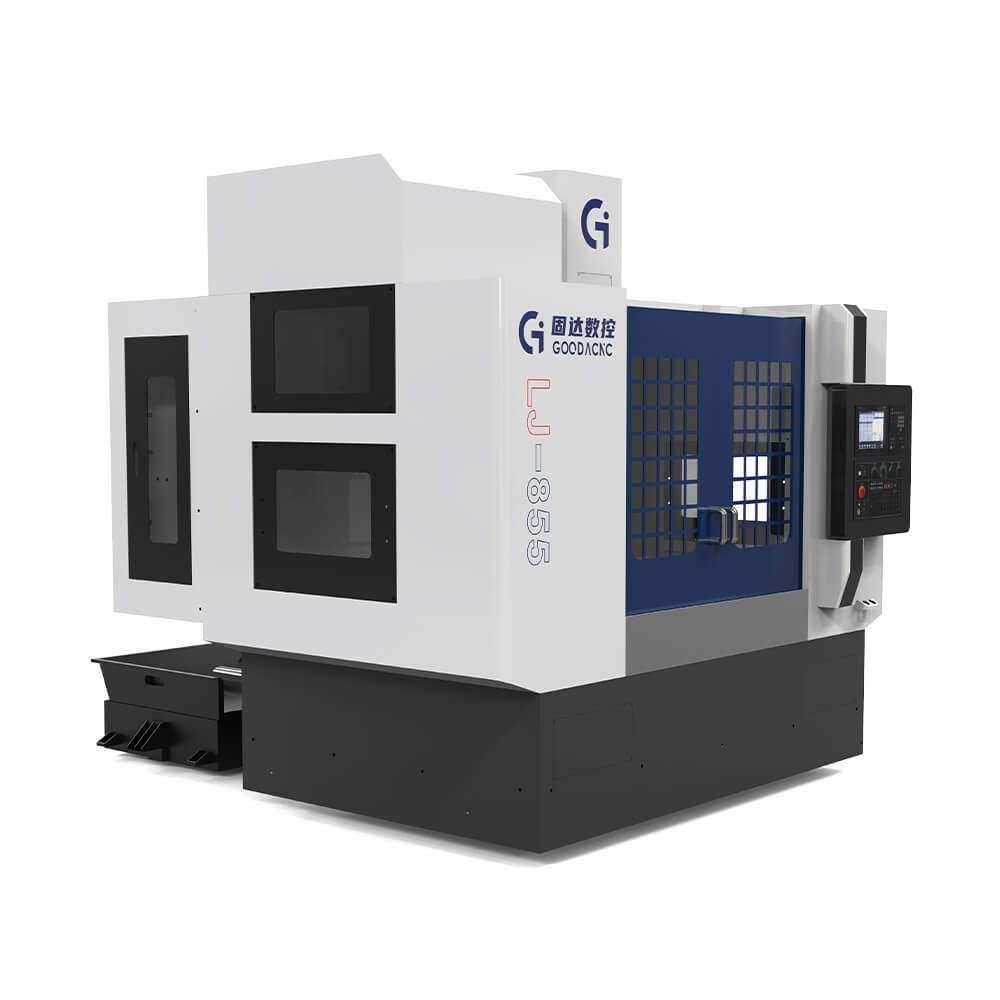

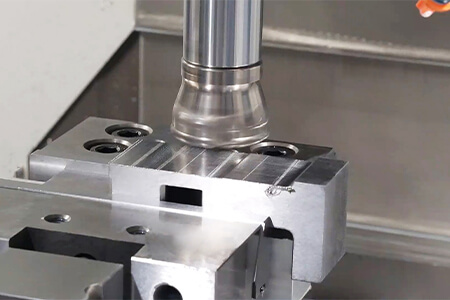

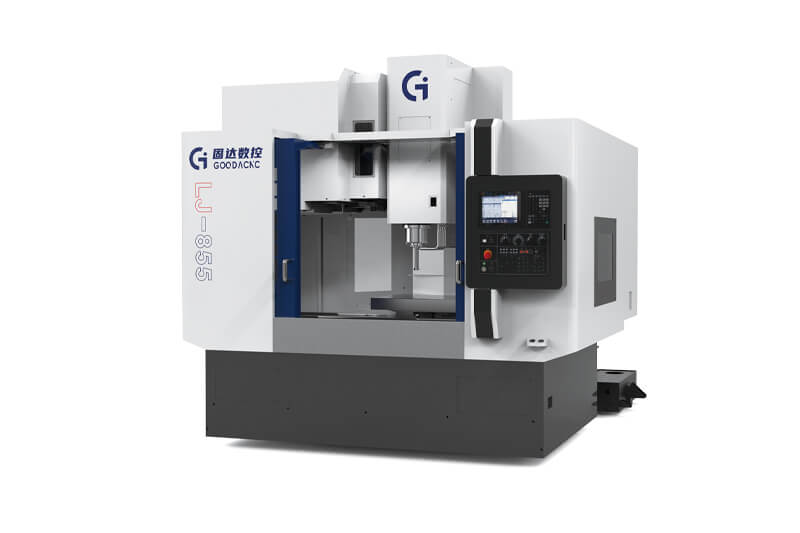

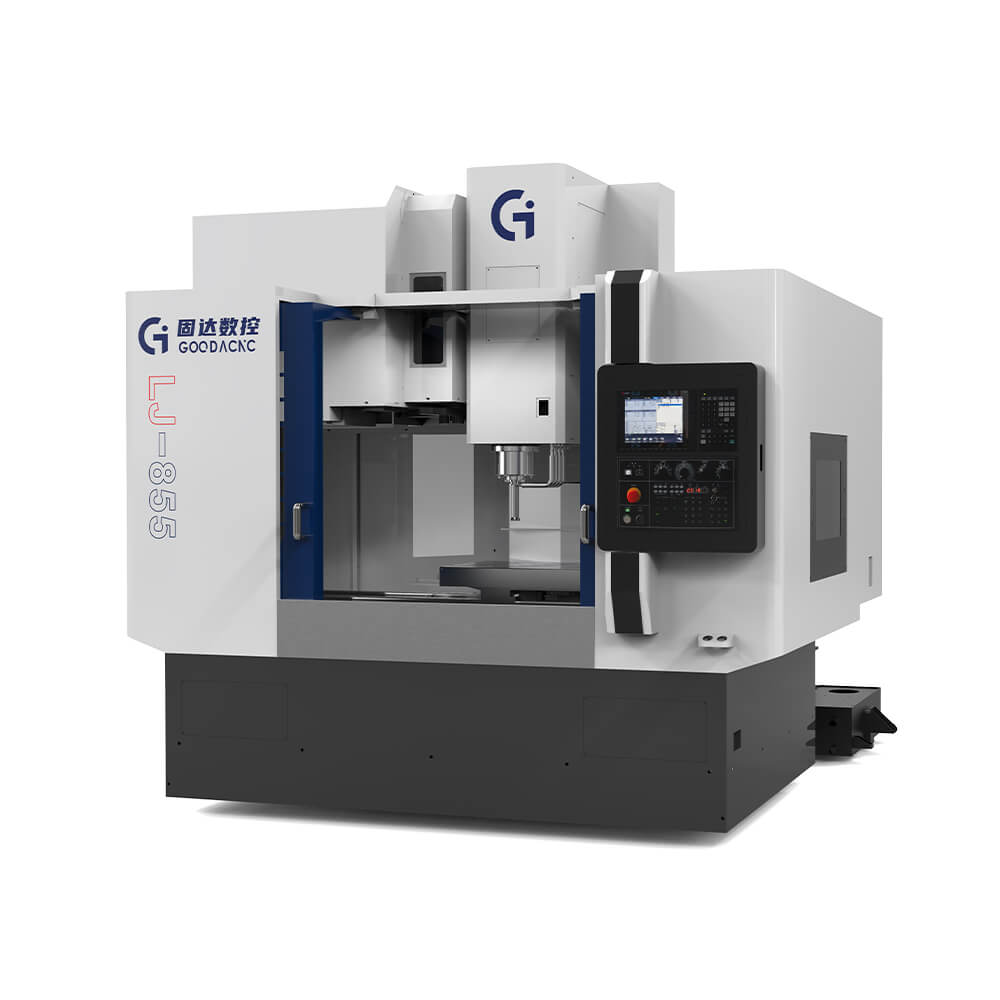

GooDa Vertical Machining Center LJ-855 is a small size machine tool. Once the workpiece is clamped, it can automatically complete multiple processes such as milling, drilling, boring, and tapping continuously.
It is suitable for the small to medium-batch processing of complex parts such as small and medium-sized box, plate, disk, valve, shell, and mold components.
Small-size vertical machining center;
High rigidity, high efficiency, heavy-duty cutting;
X/Y/Z Travel: 800/550/550mm.
GooDa Vertical Machining Center LJ-855 is a small size machine tool. Once the workpiece is clamped, it can automatically complete multiple processes such as milling, drilling, boring, and tapping continuously.
It is suitable for the small to medium-batch processing of complex parts such as small and medium-sized box, plate, disk, valve, shell, and mold components.
Small-size vertical machining center;
High rigidity, high efficiency, heavy-duty cutting;
X/Y/Z Travel: 800/550/550mm.
LJ-855 | Value | Unit | |
Travel | X/Y/Z Travel | 800/550/550 | mm |
Worktable | Distance from spindle end face to worktable | 110-610 | mm |
Max. load | 450 | KG | |

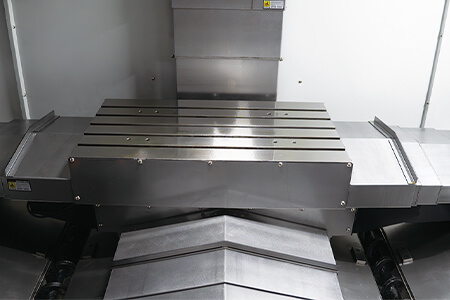

T-slot (number*width*center distance) | 5*18*90 | mm | |
Spindle | Spindle Taper | BT50-φ155 | / |
Spindle RPM | 6000 | rpm | |
Spindle drive | Belt drive | / | |
Feed | Guideway | X/Y axis: linear guideway Z axis: hardway | / |
X/Y/Z Rapid feed rate | X/Y/Z: 24/24/18 | m/min | |
Max. cutting feed rate | 1-10 | m/min | |
Motor | Spindle motor power | 7.5/11 | KW |
3-axis servo motor power | X/Y/Z: 2.0/2.0/3.0 | KW | |
ATC | Number of tools | 24 | T |
Machine weight & size | Size (L*W*H) | 2650*2560*2830 | mm |
Weight | ~5000 | KG |
*Note: Parameter above is for reference only, please contact us for more detailed data or inquire customized solutions.
