Vertical Machining Center VMC850

Name: Vertical Machining Center VMC850
Brand: GOODA
Rating: 5.0 (87 reviews)

X/Y/Z Axis travel: 800/550/550mm
Worktable size: 1000×550mm
Max.load capacity: 500kg

Model:
LJ-855
Brand:
GOODA

Availability:

Quantity:



Inquire

Key Features

GooDa VMC850(LJ-855) adopts an ultra-rigid structure and high-precision linear guides for X/Y/Z axes with ball screws featuring preload locking design, providing you with fast, powerful, and stable machining performance, making it suitable for high-precision part processing.

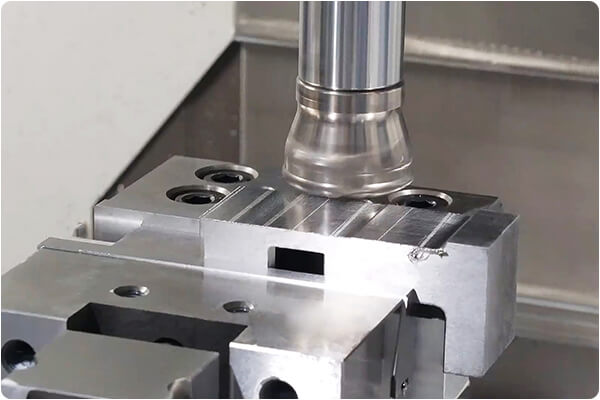

It is applicable to the machining of small plates, disc parts, and housings, widely used in 3C, automotive, watchmaking, electronics, small molds, medical devices, and other industries.

Main Functions

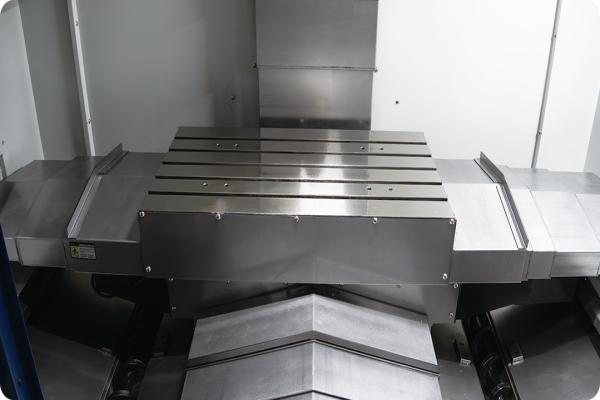

Overall Structure Adopts rigid C-frame layout with full standard components. Stainless steel telescopic guideway covers and dust-proof electrical cabinet with heat pipe exchanger ensure durability and stable long-term operation.

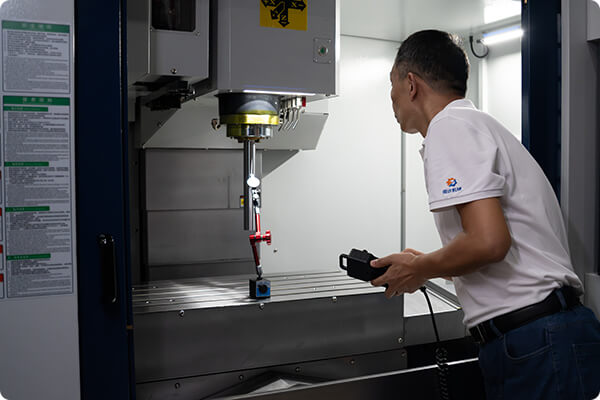

	Spindle & 3-Axis Drive System High-precision bearing spindle with independent chiller cooling and synchronous belt drive delivers stable low-noise high-speed performance. Pre-stretched ball screws and heavy-load linear guides eliminate backlash and achieve ultra-precise positioning.
Complete Lubrication & Cooling System Full-cycle automatic lubrication for spindle, guideways, ball screws and bearings. Equipped with spindle chiller and coolant tank to maintain stable machining accuracy and extend service life.

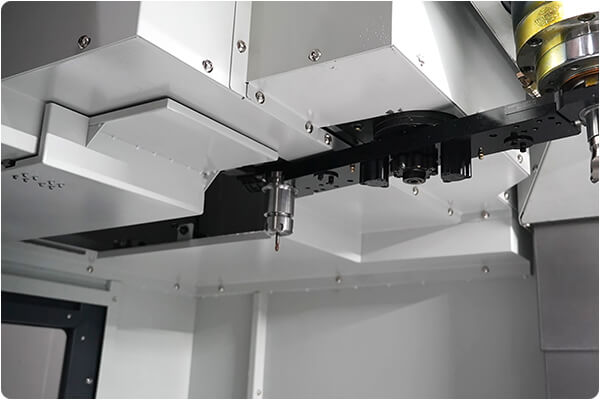

	ATC System Adopts renowned brand chain/disc type tool magazine and ATC arm. Features fast, accurate and highly reliable automatic tool change for efficient production.

Standard Configuration

Workpiece air blow system
Coolant cooling system
Automatic centralized lubrication system
Spindle temperature control system
Handheld operation unit
Electrical cabinet heat exchanger
Rear flushing chip removal system
Oil-water separation system
Full enclosure BT40-24T tool magazine
Way cover for bed guides
Full protection
Three-color warning light
Work light

Optional Configuration

Syntec MA22 CNC system
Mitsubishi M80B
Through-spindle coolant 30kg
Screw + hinge belt chip conveyor

Related Products

Vertical Machining Center LJ-1270

Vertical Machining Center LJ-1165

Vertical Machining Center LJ-1270B-2T

	Items	unit	LJ-855L/855B	LJ-1160L/1160B	LJ-1380B
Worktable	Worktable size	mm	1000×550	1200×600	1500x810
	Max.load capacity	kg	500	800	1000
	T-slot size specs	mm	5-18x90	5-18x100	7-22x110
Travel	X/Y/Z Axis travel	mm	800/550/550	1100/600/700	1300/800/700
Travel	Distance from spindle nose to table	mm	120-670	95-795	185-885
Spindle	Spindle taper		BT40	BT40	BT40(OP BT50)
	Spindle motor power	kw	7.5/11	7.5/11	7.5/11(OP11/15)
	Spindle driven mode		Timing belt (option gear box)	Timing belt (option gear box)	Timing belt
	Max.spindle speed	rpm	8000(OP direct connect:12000)	8000(OP direct connect:12000)	8000/6000
Feed	X/Y/Z axis rapid move speed	m/min	48/48/36(30/30/24)	48/48/36(30/30/24)	20/20/12
Feed	X/Y/Z axis cutting speed	m/min	1~12	1~12	1~10
Tool magazine	Tool capacity	T	24T robotic arm	24T robotic arm	24T robotic arm
Tool magazine	Max.Tool weight	kg	8	8	8(OP BT50:15)
Accuracy	Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300
	Repositioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300
	Repositioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300
Others	Total power required	KVA	25	25	25
	Machine size	m	2.6x2.6x3.0	2.9×2.2×2.5	3.8x3.5x3.3
	Machine weight(approx.)	kg	5500	6800	11500
