When you compare 3-Axis vs. 5-Axis CNC, you notice significant differences. Each machine operates uniquely and serves different purposes. A 3-axis CNC machine moves in three directions: X, Y, and Z. This type is best suited for simple shapes and flat parts. In contrast, a 5-axis CNC machine adds two additional rotational movements, allowing it to reach more angles and create complex parts in a single setup. Here is a quick comparison:
3-axis CNC: Moves in three straight lines. It is user-friendly and works best for basic parts.
5-axis CNC: Incorporates two rotations, enabling it to handle intricate shapes and save time by requiring fewer setups.
Aspect | 3-Axis CNC Machining | 5-Axis CNC Machining |
|---|---|---|
Movement | X, Y, Z axes | X, Y, Z + two rotations |
Complexity | Simple | Advanced |
Applications | Flat, simple parts | Complex, multi-angle parts |
Choosing the right CNC machine is crucial for your project’s quality and efficiency. GooDa Machinery stands at the forefront of CNC technology, offering advanced solutions tailored to meet every need.
3-axis CNC machines move in three straight lines. They are best for simple and flat parts.
5-axis CNC machines can turn in two more ways. This lets them make hard shapes in one setup.
3-axis machines cost less money. They are easier to use and fix. But they cannot do as much.
5-axis machines are more exact and work faster. They can make hard parts with fewer setups.
Aerospace, car, and medical companies use 5-axis CNC the most. They need very exact parts.
5-axis CNC needs workers with special skills and tough programming. 3-axis is better for new users.
You should pick a CNC machine based on how hard the part is, how many you need, your money, and what your job needs.
GooDa Machinery gives advanced CNC machines. They also give training and help so you can do well.
Image Source: pexels

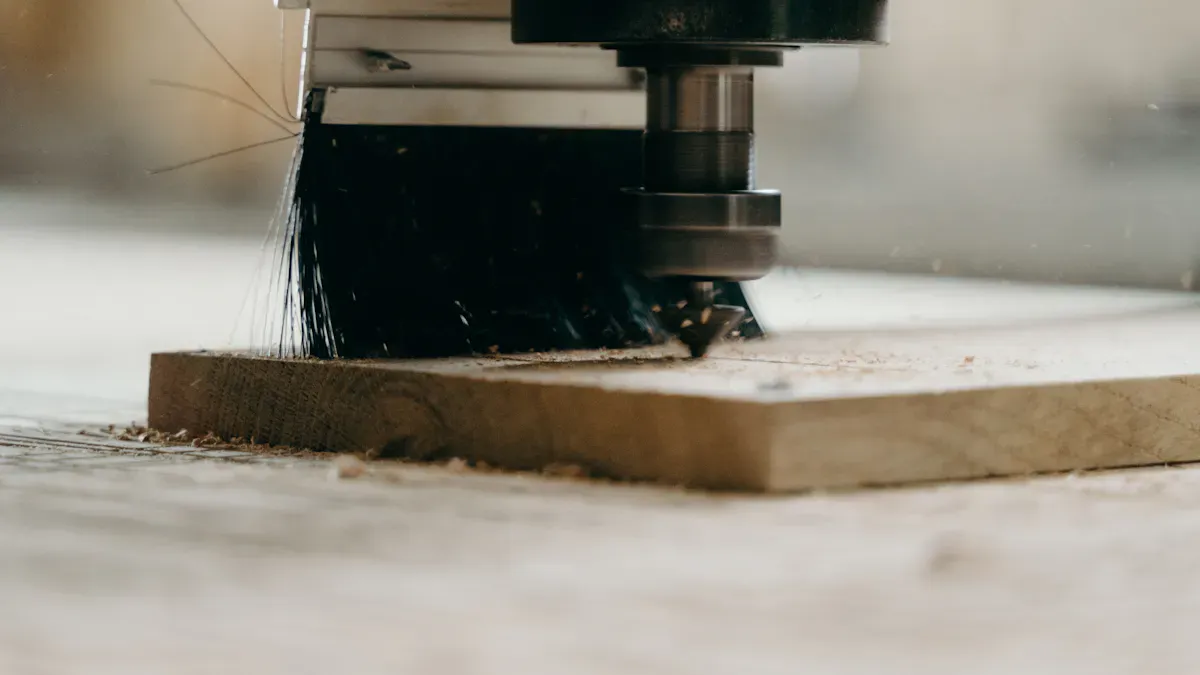

A 3-axis CNC machine moves in three ways. The X-axis goes left and right. The Y-axis goes forward and backward. The Z-axis goes up and down. You use a computer to control these movements. The machine can cut, drill, mill, and engrave. It works well for flat shapes and simple designs. You can control each axis very precisely. You tell the machine what to do, and it follows your plan.
A 3-axis CNC machine has a flat table. You put your material on the table. The spindle holds the tool that cuts. You use clamps or fixtures to keep the material still. The computer tells the tool where to move. You can switch tools for different jobs. Setting up the machine is fast and easy. You do not spend much time getting ready for each job.
Many industries use 3-axis CNC machines. Car makers use them for engine blocks, gearboxes, dashboards, and suspension parts. Airplane companies use them for turbine blades, wing ribs, landing gear, and control panels. Medical companies make surgical tools, joint replacements, dental parts, and device pieces. Electronics companies use them for PCBs, cases, and heat sinks.
Automotive: Engine blocks, gearboxes, dashboard panels, suspension parts
Aerospace: Turbine blades, wing ribs, landing gear, control panels
Medical: Surgical tools, joint replacements, dental prosthetics, diagnostic devices
Electronics: PCBs, housings, heat sinks
3-axis CNC machines are great for making molds and dies. GooDa Machinery builds these machines to be very accurate and dependable. You can make molds for plastic parts and metal dies for stamping. You can also make special tools for factories. GooDa Machinery helps mold and die makers with advanced machines. You get smooth surfaces and exact shapes every time.
3-axis CNC machines are simple to use. You do not need much training. They cost less than more advanced machines. You save money on repairs because there are fewer parts. These machines are very accurate for many jobs.
Tip: If you want to save money and make simple parts, 3-axis CNC is a good choice.
Advantages of 3-Axis CNC Machines | Disadvantages of 3-Axis CNC Machines |
|---|---|
Cost-Effective | Limited Capability |
Easy to Operate | Limited Efficiency |
Low Maintenance | |
High Accuracy |
3-axis CNC machines have some limits. They can only cut from certain directions. You cannot make undercuts or work on many sides at once. Complicated parts may need more setups. Each setup takes more time and can cause mistakes. You use 3-axis CNC for simple shapes and prismatic parts. For harder jobs, you might need a machine with more axes.
A 5-axis cnc machine moves in X, Y, and Z directions. It also has two extra axes called A and B or A and C. These axes let the tool tilt and spin. The tool can reach almost any angle on a part. You can make complex shapes in one setup. You do not need to stop and move the part many times. This saves time and helps you make fewer mistakes.
Here is a table to show the main differences:
Feature | 3-Axis CNC Machining | 5-Axis CNC Machining |
|---|---|---|
Axes of Movement | X, Y, Z linear movements | X, Y, Z plus two rotational axes (A and B/C) |
Tool Access | Limited to surfaces parallel or perpendicular | Continuous access to any surface orientation |
Setup Requirements | Multiple setups for complex features | Single setup for complete part machining |
Surface Finish | Standard surface finishes | Improved surface finishes |
Cycle Time | Longer for complex parts | Reduced cycle times for intricate geometries |
Programming Complexity | Straightforward linear interpolation | Advanced programming with multi-axis motion |
There are different types of 5-axis cnc machines. Some have a table that spins. Others have a spindle that tilts. Some machines can do both. These setups help you work with hard shapes. You can pick the best one for your part’s shape and size. With 5-axis cnc, you can make deep holes, angled holes, and curved surfaces easily. You can create parts that a 3-axis machine cannot make.
The GooDa 5 Axis CNC Machining Center GZXC-2000 uses new technology for today’s factories. This 5-axis cnc machine has a digital control system with artificial intelligence. The AI helps you make toolpaths for hard shapes fast. You spend less time setting up and more time making parts. The machine is flat, so it is easy to set up and connect to robots. You can work with big parts because the X-axis is long and the work area is large.
Some new features in 5-axis cnc are:
AI-assisted CAM software that makes toolpaths by itself
IoT sensors that watch the machine and warn you about problems
Digital twins that let you test and improve before you start cutting
Smarter tools for better finishes and faster cutting of tough materials
Cloud systems that help you get quotes and plan jobs faster
The GZXC-2000 gives you high accuracy. It uses angle encoders on every axis to check positions. This means you get the same results every time, even for hard shapes. The rotary table moves quickly and holds heavy parts. You can make big molds or metal pieces. The spindle can go up to 12,000 rpm, so you can cut titanium, aluminum, and steel. You can add robots for full automation. This lets you run the machine all day and night with less help from people.
You use 5-axis cnc to make parts with hard shapes. These machines are great for jobs that need high accuracy and quality. Here is a table that shows where 5-axis cnc is important:
Industry | Parts/Applications |
|---|---|
Aerospace & Defense | High-precision components where performance matters |
Medical | Devices like implants requiring precision and quality control |
Robotics & Automation | Components needing tight tolerances and reliability |
Semiconductor | Parts with complex geometries and angled holes |
Automotive & EV | Complex engine and transmission components |
ICT & Energy | Parts for ICT infrastructure with reduced risk |
In aerospace, you can make light parts with hard shapes that help save fuel. In automotive, you make engine blocks, transmission cases, and molds for car lights. Medical companies use 5-axis cnc to make implants and surgical tools with smooth surfaces and exact shapes. You get better results, faster work, and fewer mistakes. GooDa Machinery helps you meet top standards in every field by giving you strong 5-axis cnc machines.
A 5-axis CNC machine gives you more power in manufacturing. The cutting tool moves in five directions. You can reach almost any part of the workpiece. You do not need to stop and change its position. This saves time and helps you make fewer mistakes.
Some main advantages of 5-axis CNC machining are:
You can make complex shapes and undercuts that 3-axis machines cannot do.
The tool can approach from the best angle, so surfaces look smoother.
You need fewer setups, which saves time and lowers mistakes.
You cut faster because shorter tools are more stable and precise.
Your parts fit together perfectly because you get higher accuracy.
You can work with bigger and heavier parts, especially with table-tilt designs.
You remove more material quickly because there is more torque at lower speeds.
These features let you do advanced projects in aerospace, automotive, medical, and other fields. GooDa’s 5 Axis CNC Machining Center GZXC-2000 gives you these benefits. It also has smart features like AI-assisted programming and high-speed rotary tables. You can trust this machine to be precise and efficient for tough jobs.
Tip: If you want to make complex parts with fewer steps, a 5-axis CNC machine is the best choice.
5-axis CNC machines have many advantages, but you must think about skills and costs. These machines use advanced technology. Operators need to know complex programming and setup. Training is important so your team feels confident.
Here are some things to remember:
5-axis CNC machines cost more to buy and keep than 3-axis machines.
Programming is harder. You need skilled operators who know CAD/CAM software.
Operators must know how to set up the machine and fix problems.
Advanced training helps your team use the machine well.
Pros of 5-Axis CNC | Cons of 5-Axis CNC |
|---|---|
Complex part machining | Higher purchase cost |
Fewer setups needed | More complex programming |
Better surface finish | Skilled operators required |
Faster production | Higher maintenance cost |
GooDa Machinery helps you with training and support. You get help with installation, programming, and ongoing service. This makes it easier to use 5-axis technology and stay ahead in your industry.
When you look at 3-axis and 5-axis cnc machines, you see big changes in speed and efficiency. A 3-axis machine needs more setups for tricky parts. Each setup takes time and slows things down. You spend extra hours moving and clamping the workpiece. A 5-axis machine can finish most parts in one setup. The tool reaches more angles without stopping. This saves time and helps you make more parts faster.
Metric | 3-axis CNC | 5-axis CNC |
|---|---|---|
Setup and Cycle Time | Longer setup and slower cycle time | Faster with less setup time |
Efficiency | Less efficient | Increased efficiency, less waste |
Productivity | Lower | Higher |
GooDa Machinery builds machines to be very efficient. The GZXC-2000 5-axis machining center uses smart controls and automation. This reduces cycle times. You can handle bigger batches and complex parts with less downtime.
Accuracy is important in every machining job. A 3-axis machine gives good accuracy for simple parts. Errors can build up when you use many setups. Each time you move the part, you might lose precision. A 5-axis machine keeps the part in one spot. This means you get higher accuracy and repeatability. The tool can reach tight spots and make smooth surfaces. You avoid mistakes because you do not need to reposition the workpiece.
Metric | 3-axis CNC | 5-axis CNC |
|---|---|---|
Accuracy | Accurate but less precise | Highest accuracy and repeatability |
Error Accumulation | Tendency for error accumulation | Reduced risk with single setup |
GooDa Machinery uses angle encoders and digital controls in its 5-axis machines. You get consistent results, even for parts with tricky shapes. This level of accuracy is important for industries like aerospace and medical devices.
You will notice a big difference in complexity when you compare 3-axis and 5-axis cnc machines. A 3-axis machine is easier to program. You can use basic CAM software and learn quickly. Most beginners start with 3-axis machining because the controls are simple.
A 5-axis machine needs advanced CAM software. You must understand how the axes move together. You need to plan tool paths that avoid collisions and reach all surfaces. Software like Mastercam, Fusion 360, NX, and PowerMill helps you manage these tasks. You must learn how to optimize tool paths and design fixtures for complex parts.
Feature | 3-Axis CNC Machines | 5-Axis CNC Machines |
|---|---|---|
Learning Curve | Easier to program and simulate | Steeper learning curve requiring advanced skills |
Software Requirements | Basic CAM software | Advanced CAM software needed for complex operations |
Operator Skill Level | Suitable for beginners | Requires skilled operators for optimal use |
When you move from 3-axis to 5-axis machining, you face new challenges. You must understand kinematics and how the axes interact. You need to create efficient tool paths for precision. You must design fixtures for complex shapes. You must convert CAM tool paths into machine-specific G-code.
GooDa Machinery helps you with training and technical support. You get guidance on software, programming, and setup. This makes the change easier and helps you use advanced machining features.
The price and maintenance needs change when you compare 3-axis and 5-axis cnc machines. A 3-axis machine costs less to buy and maintain. It has fewer moving parts, so you spend less on repairs. A 5-axis machine costs more because it has extra axes and advanced controls. You must plan for higher maintenance to keep the machine running smoothly.
Machine Type | Maintenance Needs | Maintenance Costs |
|---|---|---|
3-Axis | Lower due to fewer moving parts | Lower |
5-Axis | Higher, requires regular maintenance to ensure smooth operation and precision | Higher |
Machine Type | Average Cost Range | First Year Cost | Ongoing Annual Costs |
|---|---|---|---|
Desktop 5-Axis | $15,000 - $25,000 | $20,500 | ~$800 |
Used 3+2 System | $12,000 - $18,000 | $26,500 | ~$3,500 |
Old Industrial | N/A | $42,000+ (Risk) | $7,000+ |
GooDa Machinery offers reliable machines and strong after-sales support. You get help with maintenance and repairs. This keeps your machining center working well.
You must think about value for investment when you choose between 3-axis and 5-axis cnc machines. A 3-axis machine works well for small batches and simple parts. The cost per unit stays fixed. You need more setups, which increases cycle time. A 5-axis machine costs more at first, but you save money as you make more parts. You finish jobs faster and use fewer setups. The cost per unit drops when you produce larger batches.
Aspect | 3-Axis CNC Machine | 5-Axis CNC Machine |
|---|---|---|
Cost per unit | $220 (fixed cost) | Variable cost, drops to $180+ |
Setup requirements | 4 setups | Single setup |
Cycle time | 12 hours | 7.2 hours |
Cost savings | N/A | $40 savings per unit beyond 50 units |
Production volume | Less cost-effective beyond 50 units | More cost-effective at 50+ units |
Precision | Standard | ±0.01mm precision |
For industries that need high accuracy and efficiency, 5-axis machining gives you better value. You get faster production, fewer errors, and smoother surfaces. GooDa Machinery’s GZXC-2000 machining center helps you reach these goals. You can handle complex parts and large batches with confidence.
Note: If you want to grow your business and take on advanced projects, investing in a 5-axis machining center from GooDa Machinery can help you achieve higher accuracy and efficiency.
You use 3-axis CNC machines for many jobs. Car factories make engine blocks, brackets, and dashboards with them. You can make phone cases, kitchen appliances, and toys. The process gives you good quality and reliable results. You get shapes and sizes that stay the same. This helps you meet strict standards. You can do the same job again and again with high repeatability.
Mold and die makers use 3-axis CNC machines for molds and dies. These molds are used for plastic injection and metal stamping. You can create dies for cutting and shaping materials. GooDa Machinery designs machines that help you get smooth surfaces and exact sizes. You get high quality in every mold and die. You can trust the process to repeat well. This is important for big production runs.
You see 5-axis CNC machines in advanced fields. Aerospace companies use them to make turbine blades and compressor impellers. They also make light structural parts. You can produce medical devices like implants and surgical tools. The machines let you reach hard angles and make complex shapes. You get great quality and tight tolerances. You can repeat the process with high repeatability. This is critical for safety and performance.
Energy and shipbuilding need strong and precise parts. You use 5-axis CNC machines to make pump housings, valve bodies, and propeller molds. The machines handle heavy materials and big workpieces. You get reliable quality and consistent repeatability. GooDa Machinery offers solutions that help you meet these demands.
GooDa Machinery gives you custom CNC solutions for your needs. You work with a skilled R&D team that makes features for your industry. GooDa works with you to boost productivity and quality. You get help with installation, maintenance, and training.
GooDa Machinery Customization Approach |
|---|
Features made for industry needs |
Skilled technical R&D team |
Complete CNC machining solutions |
Teamwork for productivity |
New designs for quality |
You can use the GooDa GZXC-2000 5-axis CNC center in many industries. In aerospace, you make titanium bearing seats and compressor impellers. In automotive, you make wheel hub molds and gearbox housings. Shipbuilding companies use the machine for propeller molds. Medical device makers use the GZXC-2000 for implants and surgical tools. You get high quality, great repeatability, and efficient manufacturing for every project.
Tip: Pick GooDa Machinery for advanced CNC solutions that fit your industry and project needs.
First, check how hard your parts are to make. Also, count how many parts you need. Flat and simple parts work well with 3-axis CNC machines. If your parts have lots of angles or curves, use a 5-axis CNC machine. It finishes jobs faster and needs fewer setups. Think about how many parts you want to make. For small batches or prototypes, 3-axis machines cost less. For big runs or parts needing tight fits, 5-axis machines save time and cut mistakes.
Here is a table to help you compare:
Feature/Aspect | 3-Axis CNC | 5-Axis CNC |
|---|---|---|
Part Complexity | Simple, prismatic parts | Complex, contoured parts |
Production Volume | Lower, prototyping | Higher, critical tolerance parts |
Cycle Time | Longer, more setups | Faster, fewer setups |
Programming Complexity | Easier to learn | Advanced skills needed |
Cost Consideration | Lower investment | Higher investment |
Best Use Cases | Multi-face drilling | High-precision, organic geometry |
You must think about your money and tools. A 3-axis CNC machine costs less to buy and fix. It uses regular tools, so you spend less. A 5-axis machine costs more but can save money if you make tricky parts or lots of them. Keeping tolerances tight helps you avoid extra costs. Picking the right tools matters for long-term spending. If you talk to your manufacturing partner early, you can find ways to save money and skip redesigns.
Use regular tools to keep costs low.
Focus on the most important tolerances for your parts.
Plan your project with your CNC provider to save money.
You need to match your machine to the materials and tolerances your industry wants. Aluminum alloys are stable and easy to machine. They are great for aerospace and electronics. Carbon steel works well for strong parts and keeps standard tolerances. Tool steels need special tools but can get very tight tolerances for precise jobs.
Material Category | Machining Characteristics | Tolerance Considerations | Typical Applications |
|---|---|---|---|
Aluminum Alloys | Stable, good heat dissipation | Consistent, minimal distortion | Aerospace, electronics |
Carbon Steel | Predictable, moderate expansion | Standard tolerances achievable | Structural, mechanical parts |
Tool Steels | Hard, needs special tooling | Tighter tolerances possible | Precision tooling, wear parts |
The material you pick affects how exact your parts can be. Choose a CNC machine that fits your material and tolerance needs.
When you pick a CNC machine, you want good support. GooDa Machinery trains your team so you can use your machine well. You get help with setup, programming, and fixing problems. If something goes wrong, GooDa’s service team helps you fast. This support keeps your work running smoothly.
Tip: Good training and service help you get the most from your CNC investment.
You want your CNC machine to stay useful as technology changes. GooDa Machinery leads in new ideas. You get smart features like AI programming, digital controls, and automation. These tools help you work with new materials, tighter fits, and harder parts. With GooDa, you can grow your business and meet future industry needs.
Choosing the right CNC machine means looking at your project needs, industry standards, and the support you receive. GooDa Machinery helps you succeed today and prepares you for tomorrow.
You have to pick a 3-axis or 5-axis CNC machine for your project. The table below shows how they are different:
Feature | 3-Axis CNC | 5-Axis CNC |
|---|---|---|
Axes of Movement | 3 linear axes | 3 linear + 2 rotational |
Part Complexity | Simple parts | Complex shapes |
Accuracy & Finish | Good | Superior |
Cost | Lower | Higher, but efficient |
Pick a machine that fits your part’s shape and accuracy needs.
GooDa Machinery gives you advanced CNC machines and good help.
Make a smart choice to get the best results for your company.
With 5-axis CNC, you make complex shapes in one go. The machine moves in more directions. You can reach more angles and finish parts faster. This means you get better accuracy and save time on each job.
3-axis CNC works well for simple parts. For tricky shapes, you need extra setups and tool changes. This takes more time and may not be as accurate. For best results, use 5-axis CNC for hard shapes.
5-axis CNC makes work more efficient. It finishes complex shapes in fewer steps. You spend less time moving parts around. This makes it great for jobs where speed and quality are important.
You need extra training to use 5-axis CNC machines. These machines have advanced controls and software. Learning helps you use all the features and make complex shapes with high accuracy.
5-axis CNC machines are used in aerospace, automotive, and medical fields. These industries need complex shapes and tight fits. You can also use them for molds, energy, and shipbuilding jobs.
GooDa Machinery gives you full support. The team helps with training, maintenance, and technical questions. This keeps your machine working well and helps you do tough jobs with confidence.
