The Top Benefits of 5-Axis CNC Machining for Modern Manufacturing

You can see how 5-axis CNC machining changes modern manufacturing. This technology makes things more accurate and faster. It helps you make complicated parts with fewer mistakes. Manufacturers in places like aerospace and automotive use it for better results. Up to 68% of aerospace suppliers use it, which shows it is important.

The advantages of 5-axis CNC machining include cutting mistakes in size by up to 50%. This means parts are better and there is less waste. GooDa Machinery is a leader with new ideas that help you meet these needs every day.

Key Takeaways

• 5-axis CNC machining helps tools move in five ways. This makes parts more accurate and reduces mistakes. It also improves how precise the work is.

• This technology makes setup much faster. It lets workers make hard parts in one try. This saves 60-80% of the setup time.

• 5-axis machining makes surfaces smoother. Parts need less extra polishing.

• Using 5-axis CNC machining can lower labor costs. It does this by needing less manual work and fewer setups.

• 5-axis machining can work with many materials. This makes it useful for aerospace, automotive, and mold making.

• AI in machines like the GZXC-2000 helps watch tool life and machine health. This stops breakdowns and keeps things running well.

• 5-axis CNC machining lets people make complex shapes. It helps companies make detailed parts with fewer mistakes.

• Buying 5-axis CNC technology can save money over time. It also helps workers do more and keeps businesses strong.

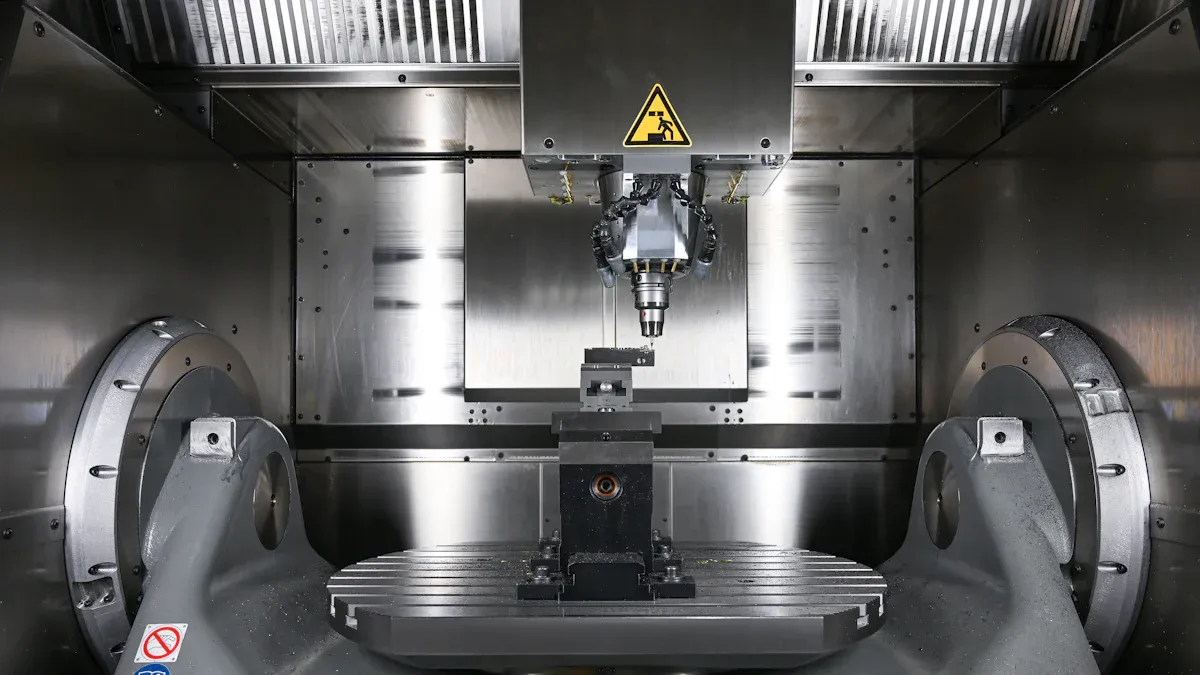

5-Axis CNC Machining Overview

Image Source: unsplash

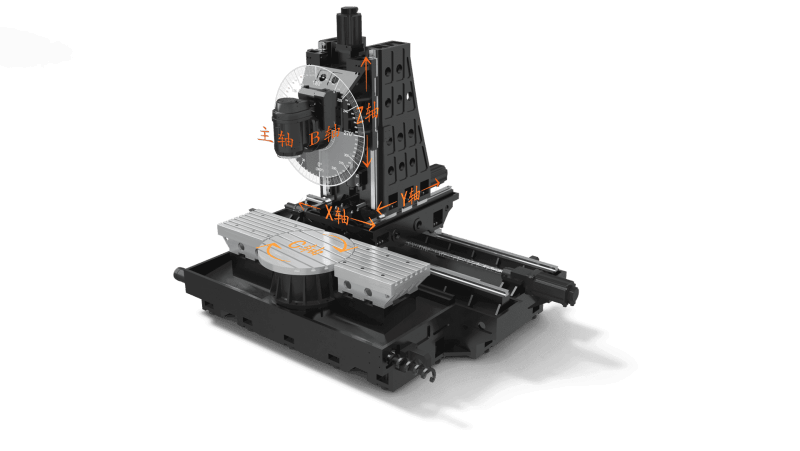

What Is 5-Axis Machining

You may wonder how 5-axis machining works and why it matters. This technology lets you move a cutting tool or part in five different directions at the same time. The machine operates along the X, Y, and Z axes, just like a regular CNC machine. It also adds two more axes, called A and B, which rotate. This means you can reach almost any surface of a part without stopping to move it by hand.

Here is how 5-axis cnc machining works:

• The process starts with a digital design, called a CAD file.

• The machine reads this file and turns it into instructions for cutting.

• Step motors move the machine along all five axes.

• A spindle motor spins the cutting tool at high speed.

• A controller makes sure everything works together smoothly.

You get faster results and higher accuracy because the machine can cut complex shapes in one go. GooDa Machinery leads the way in this field. The company offers advanced 5-axis cnc machining centers like the GZXC-2000. These machines use smart technology to make your work easier and more precise.

Comparison with 3-Axis and 4-Axis

You might ask how 5-axis machining compares to other types. Let’s look at the main differences:

• 3-axis machines move the tool in three straight lines: left-right (X), front-back (Y), and up-down (Z). You can only cut surfaces that face up or to the side.

• 4-axis machines add one rotation, so you can turn the part. This helps, but you still have limits.

• 5-axis machining adds two rotations. You can move and spin the part in almost any direction. This lets you cut complex shapes in one setup.

Here is a table to show you the main advantages of 5-axis machining over 3-axis and 4-axis systems:

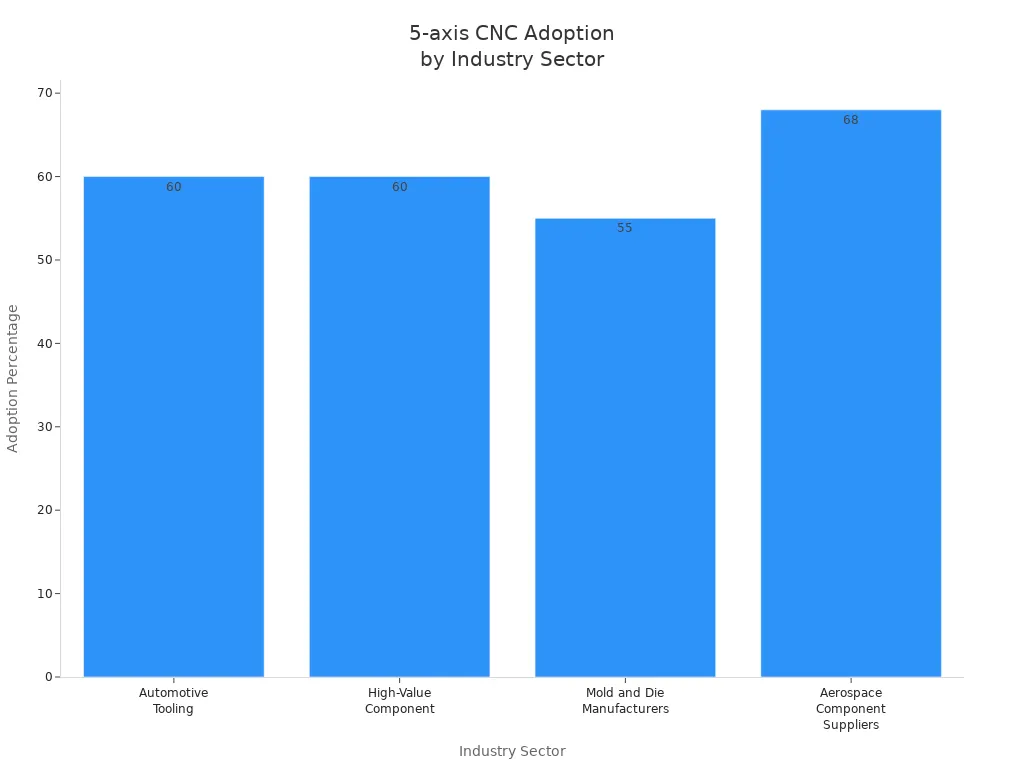

You see 5-axis machining used in industries like aerospace and automotive. These fields need high precision and complex shapes. GooDa Machinery’s advanced solutions help you meet these tough demands with ease.

The Advantages of 5-Axis CNC Machining

When you use 5-axis cnc machining, making parts gets easier. This technology helps you make parts more accurately. It also lets you work faster and need fewer setups. These benefits help you do your job better every day.

Higher Precision

Positioning Accuracy

You want parts to fit just right. 5-axis machining lets you get very close tolerances. Other machines cannot do this as well. The machine keeps the part still and moves the tool around it. You do not have to stop and move the part by hand. This stops mistakes from happening. All features stay tied to one spot, so you get better accuracy. In fields like aerospace and medical, you need very tiny tolerances. 5-axis cnc machining helps you reach these tough levels.

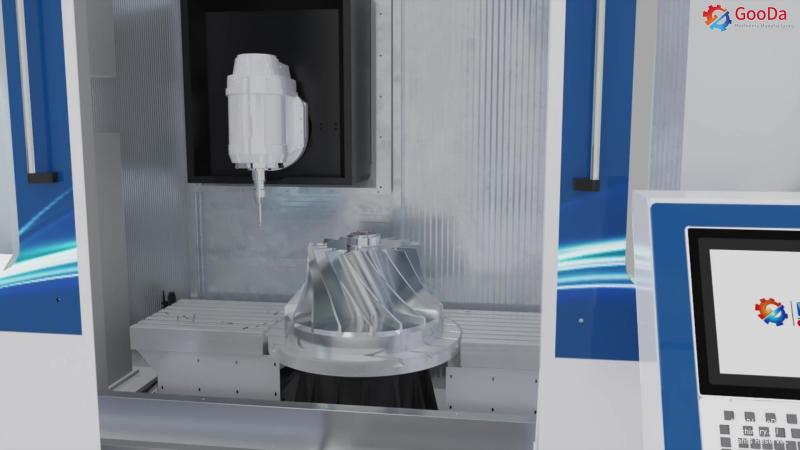

GooDa Machinery’s GZXC-2000 makes this even better. It uses special angle encoders on all axes. These encoders tell the machine where the tool is at all times. The rotary table moves fast and strong, so you get great positioning accuracy. Every cut goes exactly where it should.

Consistent Quality

You want every part to look and work the same way. 5-axis machining keeps the part in one system. This lowers errors and gives you steady results. The GZXC-2000 uses AI to watch the process as it happens. The AI checks for problems and fixes them right away. You get fewer bad parts and less waste. Your customers get better products every time.

Tip: Good quality makes customers trust you and helps your business grow.

Improved Production Speed

Faster Cycles

You need to finish jobs quickly to stay ahead. 5-axis cnc machining gives you much faster cycles. You can work on many sides of a part at once. You do not have to stop and change setups. This saves you lots of time. The GZXC-2000 has a spindle that spins up to 12,000 rpm. This lets you cut faster and finish parts sooner. The fast spindle also helps control quality, so you fix fewer mistakes.

Here is a table that shows how advanced features help you work faster:

Reduced Setups

You want to spend less time setting up machines. 5-axis cnc machining means you need fewer setups. You can make complex shapes in one setup instead of many. This cuts down on setup time and lowers mistakes. The GZXC-2000 works with many kinds of parts, so you can switch jobs easily. You get parts faster and lead times are shorter.

• AI-powered quality control systems can cut defect rates by up to 50%.

• Real-time data from AI makes precision and consistency better.

• The machine finds small changes that people might miss, so you get better results.

With 5-axis cnc machining, drilling is easier too. You can drill holes at any angle without moving the part. This makes your work easier and more accurate.

The advantages of 5-axis cnc machining help you meet modern manufacturing needs. You get higher precision, faster speed, and can handle tough jobs with fewer setups. GooDa Machinery’s GZXC-2000 gives you the tools for tight tolerances and top-quality results.

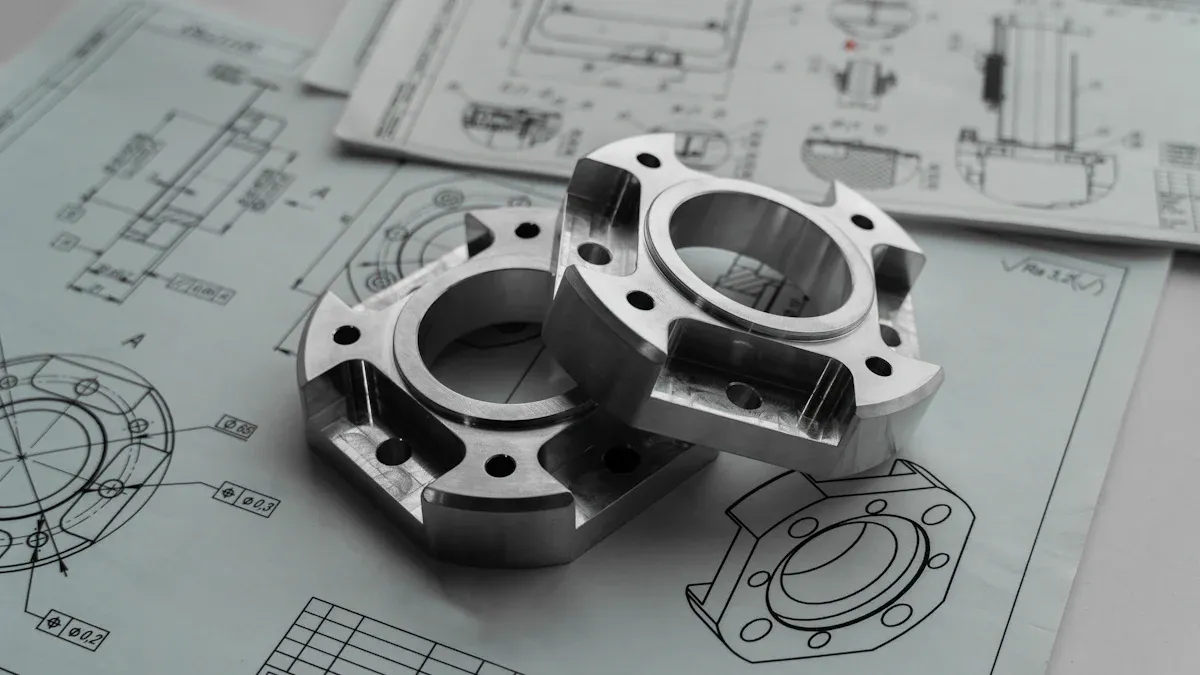

Complex Geometries and Versatility

Image Source: unsplash

Machining Intricate Parts

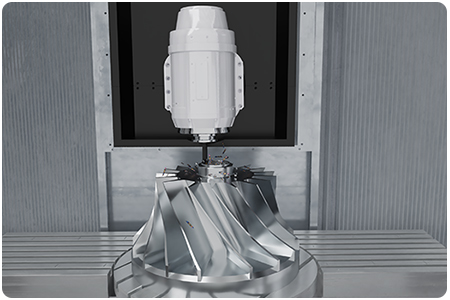

Sometimes you need to make parts with tricky shapes. 5-axis machining lets you work on shapes that regular machines cannot reach. You can make holes at different angles, deep spaces, and smooth surfaces easily. These features matter in aerospace, automotive, and mold making. These industries use parts with lots of detail.

With 5-axis machining, you can finish detailed shapes in one step. You do not have to stop and move the part again and again. This way, the part stays in the same spot. You need fewer setups, so you save time and make fewer mistakes. Here are ways 5-axis machining helps you:

• You can cut from many angles in one setup. This gives you more choices.

• You can make curved shapes and undercuts without extra steps.

• You keep the part steady, so you avoid mistakes and keep tight tolerances.

Note: Fewer setups mean better results and less time fixing errors.

GooDa Machinery makes machines for accurate work. The GZXC-2000 helps you get tight tolerances and make tricky shapes with ease. You can count on this machine to give you the accuracy you need for every job.

Wide Range of Materials

You may need to use many kinds of materials. 5-axis machining lets you work with metals like aluminum, titanium, and cast iron. You can also use plastics and other special materials. This makes it easy to switch jobs for different industries.

GooDa Machinery builds machines that fit your needs. The GZXC-2000 works with many materials and can handle big or small parts. You can use it for aerospace parts, car molds, or energy tools. The machine’s design helps you keep high quality, even with tough or delicate materials.

When you need to make tricky shapes or detailed parts, you want a machine that can keep up. 5-axis machining lets you do more with less work. You can take on new jobs and meet the needs of modern manufacturing.

Tip: Using a machine that works with tricky shapes and many materials gives your business a big advantage.

Surface Quality and Finish

Superior Surface Finish

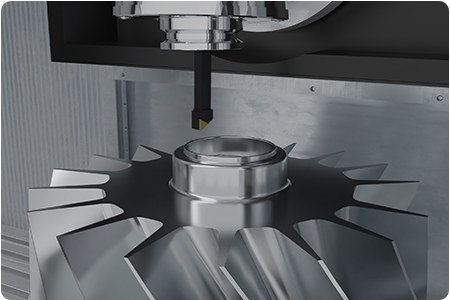

You want your parts to look smooth and feel nice. 5-axis CNC machining makes surfaces better than old ways. The machine uses short cutting tools that stay at the best angle. Shorter tools are strong, so they do not shake or move. This helps you avoid rough spots and marks on the part. You get a smoother finish and often skip extra polishing.

GooDa Machinery’s GZXC-2000 has a fast rotary table and smart angle encoders. These help keep the tool touching the part all the time. The rotary table moves very smoothly, so every cut is steady. Angle encoders watch the tool’s spot, so you always cut at the right angle. You see better finishes on tricky shapes and curved parts.

Tip: Smooth parts mean you spend less time finishing and more time making new things.

Here are some ways 5-axis CNC machining makes surfaces better:

• Short tools stop shaking and keep cuts neat.

• The machine holds the tool at the best angle for each surface.

• You finish hard shapes in one setup, so you do not make mistakes moving the part.

• Smooth moves from the rotary table give a shiny look.

Minimizing Errors

You want every part to match your plans. 5-axis CNC machining helps you make fewer mistakes. Old 3-axis machines often need you to move the part by hand. This can cause errors and things not lining up. Scrap rates can be as high as 15% for hard parts. With 5-axis machining, you cut everything in one setup. The machine keeps accuracy within ±0.01mm. You do not need to move the part, so you avoid mistakes.

GooDa Machinery’s GZXC-2000 uses direct-drive tech and angle encoders. These help you keep every cut just right. The machine checks the tool’s spot and fixes it if needed. You get the same good results, even on hard parts.

Note: Doing everything in one setup means fewer mistakes and less wasted material.

Here is how 5-axis CNC machining helps you make fewer mistakes:

• You skip hand moves that can mess things up.

• The machine keeps the part still, so every feature lines up.

• Angle encoders watch the tool’s spot for tight fits.

• Direct-drive rotary tables move smoothly and cut right.

You can see that 5-axis CNC machining gives you smoother parts and fewer mistakes. GooDa Machinery’s smart features help you make parts that look good and work well.

Efficiency and Cost Savings

Reduced Labor Costs

You want to save money and time in your shop. 5-axis machining helps you do this by cutting down on manual work. You do not need to use many fixtures or spend hours lining up parts. The machine handles complex shapes in one setup. You avoid repeated tool changes and extra steps. This means you spend less time on each job and pay less for labor.

Here is a table that shows how 5-axis machining compares to traditional methods:

You see that setup time drops a lot. Labor costs go down because you need fewer workers for each job. You also avoid mistakes that happen when you move parts by hand.

• You do not need multiple fixtures.

• You skip time-consuming alignment steps.

• You minimize tool changes between setups.

GooDa Machinery’s GZXC-2000 makes this even easier. The machine uses intelligent management to track tool life and protect itself. You get alerts when tools need changing. The system adjusts itself to keep working smoothly. You spend less time fixing problems and more time making parts.

Tip: Lower labor costs help you stay competitive and grow your business.

Streamlined Workflow

You want your shop to run smoothly. 5-axis machining lets you do this by making the workflow faster and simpler. You can machine complex parts in one or two setups. You do not need to stop and change fixtures. This cuts setup time by up to 80%. Cycle times get faster, so you finish jobs sooner.

Here is a table that shows workflow improvements:

You get better accuracy and can make complex shapes in one go. You do not need to rethink your workflow every time. The GZXC-2000 uses AI to manage tool life and machine protection. The system checks for problems and fixes them before they slow you down. You keep production moving and avoid delays.

• Setup times drop.

• Accuracy improves.

• You machine complex parts in a single setup.

5-axis cnc machining changes how you approach precision manufacturing. You spend less time on manual tasks and more time on quality work. GooDa Machinery’s smart features help you keep your shop efficient and your costs low.

Note: Streamlined workflow means you can take on more jobs and deliver faster results.

Industry Applications

Aerospace

5-axis CNC machining is very important in aerospace. This field needs parts that are light and strong. The parts also must be very exact. Many parts have curves and deep holes. Some have small spaces that are hard to reach. Old machines cannot make these shapes well. 5-axis machining lets you make hard parts in one setup. You save time and make fewer mistakes.

Here are some aerospace parts you can make with 5-axis CNC machining:

• Structural parts for airframes

• Engine pieces like turbine blades and covers

• Light cabin parts for inside the plane

• Landing gear systems that need to be exact

• Tools and equipment for building other parts

• Ground support tools for fixing planes

Aerospace has strict rules for making parts. 5-axis machining helps you meet these rules. You get tight fits and smooth surfaces. You also waste less material because the machine only cuts what you need. GooDa Machinery’s GZXC-2000 gives you the speed and accuracy you need. It can handle tough materials and tricky shapes.

Note: Aerospace parts face heat, shaking, and rust. 5-axis machining helps you make parts that last longer and work better.

Automotive

5-axis CNC machining is used a lot in cars. Car parts are often tricky and need to be exact. Many have curves, holes, and small details. 5-axis machining lets you finish these parts in one try. This means you make fewer mistakes and keep quality high.

Here are ways 5-axis CNC machining helps in car making:

• You can make detailed engine parts in one setup

• You get tight fits for better car performance

• You get smooth surfaces, so you do not need much polishing

• You can go from test parts to real parts faster

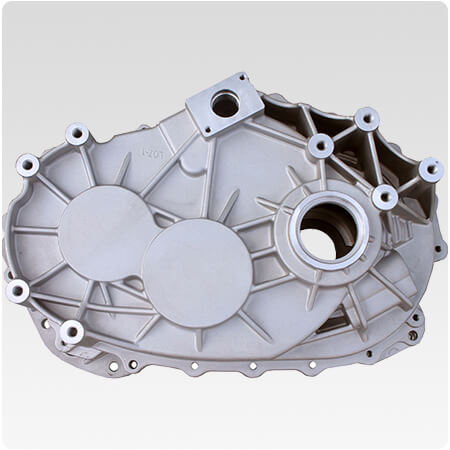

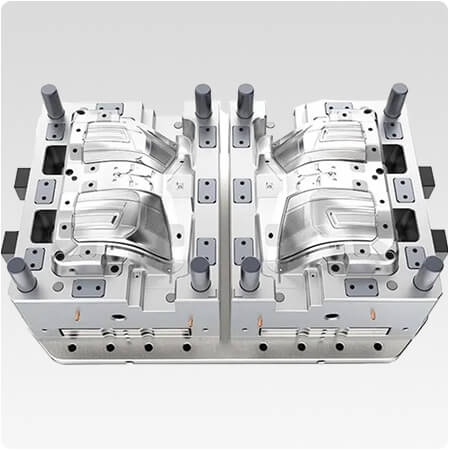

You can make engine blocks, gearbox cases, and special molds for car lights. GooDa Machinery’s GZXC-2000 lets you change jobs fast. You can use it with many materials like aluminum and steel. This helps you keep up with new car designs and what customers want.

Tip: 5-axis machining means you spend less time setting up and more time making good parts.

Mold Manufacturing

5-axis CNC machining is very helpful for making molds. Molds often have deep holes, sharp corners, and hard shapes. 5-axis machining lets you make these molds with fewer setups. This saves time and helps you avoid mistakes.

Here is how 5-axis CNC machining makes mold making better:

1. You need fewer setups and can finish a mold in one go.

2. You make molds faster, so you deliver them sooner.

3. You get an edge over others with quick work and high accuracy.

You can make molds for car parts, electronics, and things people use every day. GooDa Machinery’s GZXC-2000 gives you tight fits and smooth finishes for good molds. You can cut many sides of a mold without moving it. This keeps everything lined up and lowers mistakes.

Note: Good molds help you make better products and keep your customers happy.

Energy and Shipbuilding

You help make things that power homes and move goods on ships. Energy and shipbuilding need parts that are strong and exact. 5-axis CNC machining helps you meet these hard needs. You can make big and tricky shapes with tight fits. This technology helps you build better turbines, pumps, and ship parts.

In energy, you use heavy metals like steel and titanium. These metals are hard to cut. The GOODA GZXC-2000 can handle these tough jobs. Its strong spindle and rotary table cut thick metals without losing accuracy. You can make parts for wind turbines, gas turbines, and oil drilling tools. The machine’s AI helps you watch tool life and stop breakdowns. This keeps your work on time.

Tip: With 5-axis CNC machining, you waste less metal and save money. You only cut what you need, so you get more from each block.

Shipbuilding also gets better with 5-axis CNC machining. Ships need big, custom parts like propellers and engine blocks. You can use the GZXC-2000 to make these parts with fewer setups. The long X-axis lets you fit large pieces. You do not have to move heavy parts between machines. This lowers mistakes.

Here is a table that shows how 5-axis CNC machining helps in energy and shipbuilding:

You can also make parts with curves and deep holes. The GZXC-2000’s angle encoders keep every cut right. You get smooth parts, so you need less polishing and finish faster.

Note: Good parts mean safer ships and power plants. You help keep people safe and energy running.

When you use 5-axis CNC machining, you work faster and make better parts. GooDa Machinery gives you the tools to meet high standards in energy and shipbuilding. You stay ahead in these busy industries.

Choosing a 5-Axis Machining Center

If you want to buy a 5-axis CNC machining center, you should pick the best one for your shop. The right machine helps you work faster and make better parts. It can also help your business grow. You need to look at some important things before you buy.

Key Features to Consider

You should look at the main features of any 5-axis CNC machine. Each feature changes how well the machine works and how easy it is to use. Here is a table to help you compare:

Tip: Make sure the machine’s features match the parts you want to make. This helps you get the most out of your money.

GooDa Machinery Solutions

You want a machine that is both strong and accurate. GooDa Machinery has advanced 5-axis CNC machines for many jobs. The GZXC-2000 is special because it has a fast spindle, a strong rotary table, and smart AI features. You can use it for aerospace, cars, molds, and energy parts.

Many companies have made their work better with 5-axis machines. For example:

• Grey Rose Manufacturing in Texas uses 5-axis machines to make big aerospace parts faster and with better quality.

• M.R. Mold & Engineering Corporation uses 5-axis machining to make detailed silicone molds with fewer mistakes.

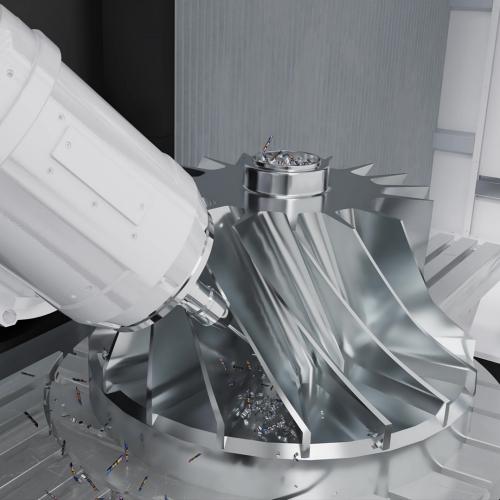

GooDa’s GZXC-2000 helps you do hard jobs. You get a big work area, high accuracy, and easy setup. The machine’s AI checks tool life and keeps the system safe, so you avoid problems. You can also add robotic arms for more automatic work.

If you want to do well in modern manufacturing, pick a 5-axis CNC machine that fits your needs. GooDa Machinery gives you the tools and help you need to succeed.

You can see how 5-axis CNC machining helps your shop. It makes setups faster and parts more exact. Surfaces come out smoother too.

• Fewer setups help you finish jobs faster and keep parts the same.

• Better precision helps you follow tough rules.

• Smoother surfaces mean you do not need much extra work.

GooDa Machinery is a leader with smart machines. As more people use this tech, you can stay ahead and bring new ideas.

FAQ

What is 5-axis CNC machining?

You use 5-axis CNC machining to move a tool or part in five ways. This lets you reach more sides and make hard shapes in one go.

How does 5-axis machining improve accuracy?

The part stays still while the tool moves around it. This helps stop mistakes and makes parts fit better. Machines like the GZXC-2000 use angle encoders for more exact cuts.

Can I use 5-axis CNC machines for different materials?

You can cut metals like aluminum, titanium, and cast iron. You can also work with plastics and other materials. The GZXC-2000 can handle many kinds of jobs.

Why do fewer setups matter?

You save time and make fewer mistakes with less setups. One setup means you finish parts faster and keep everything lined up.

Tip: Fewer setups help you finish jobs on time.

What industries use 5-axis CNC machining?

You find 5-axis CNC machining in aerospace, automotive, mold making, energy, and shipbuilding. These jobs need tricky parts and high accuracy.

How does AI help in 5-axis CNC machining?

AI checks tool life and machine health. You get alerts before something goes wrong. This keeps your work moving and stops long delays.

Is 5-axis CNC machining cost-effective?

You spend less on workers and setups. You waste less material. You finish jobs faster. Over time, you save money and help your business grow.
